Taylor-Green Vortex — Kinetic Energy Decay

This example extends the Navier-Stokes Taylor-Green vortex convergence test by explicitly tracking kinetic energy decay over time and comparing against the analytical exponential decay law.

Mathematical Setup

The Taylor-Green vortex velocity decays as:

\[\text{KE}(t) = \text{KE}_0 \exp(-4\nu k^2 t)\]

where $\nu = \mu/\rho_0$ and $k = 2\pi/L$. We measure the relative error in the KE decay rate and perform a grid convergence study.

Reference

• Taylor, G.I. & Green, A.E. (1937). Mechanism of the Production of Small Eddies from Large Ones. Proc. R. Soc. A, 158, 499-521.

using FiniteVolumeMethod
using StaticArrays
using CairoMakie

rho0 = 1.0
P0 = 100.0     # high pressure → low Mach
U0 = 0.01      # small velocity amplitude
L = 1.0
k = 2 * pi / L
mu = 0.01
nu = mu / rho0
decay_rate = 4 * nu * k^2

gamma = 1.4
eos = IdealGasEOS(gamma)

function tgv_ic(x, y)
    vx = -U0 * cos(k * x) * sin(k * y)
    vy = U0 * sin(k * x) * cos(k * y)
    P = P0 - rho0 * U0^2 / 4.0 * (cos(2 * k * x) + cos(2 * k * y))
    return SVector(rho0, vx, vy, P)
end

tgv_ic (generic function with 1 method)

KE Computation

Kinetic energy = 0.5 * sum(rho * (vx^2 + vy^2) * dx * dy)

function compute_ke(law, coords, U, N)
    dx = L / N
    ke = 0.0
    for iy in 1:N, ix in 1:N
        w = conserved_to_primitive(law, U[ix, iy])
        ke += 0.5 * w[1] * (w[2]^2 + w[3]^2) * dx * dx
    end
    return ke
end

compute_ke (generic function with 1 method)

KE Decay at Multiple Resolutions

We run the TGV at each resolution and measure KE at final time. The analytical KE_0 = 0.5 * rho0 * U0^2 * L^2 / 2 (integral of cos^2*sin^2)

KE_analytical_0 = 0.25 * rho0 * U0^2 * L^2

t_final = 0.1
KE_exact_final = KE_analytical_0 * exp(-decay_rate * t_final)

resolutions = [16, 32, 64]
ke_errors = Float64[]

for N in resolutions
    ns = NavierStokesEquations{2}(eos, mu = mu, Pr = 0.72)
    mesh = StructuredMesh2D(0.0, L, 0.0, L, N, N)
    prob = HyperbolicProblem2D(
        ns, mesh, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
        PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
        PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
        tgv_ic; final_time = t_final, cfl = 0.3,
    )
    coords, U, t_end = solve_hyperbolic(prob)
    ke_num = compute_ke(ns, coords, U, N)
    ke_exact = KE_analytical_0 * exp(-decay_rate * t_end)
    push!(ke_errors, abs(ke_num - ke_exact) / ke_exact)
end

Convergence Rates

function convergence_rates(errs)
    return [log2(errs[i] / errs[i + 1]) for i in 1:(length(errs) - 1)]
end
rates = convergence_rates(ke_errors)

2-element Vector{Float64}:
 1.9505269043630975
 2.07306344576476

KE Time History at Finest Resolution

Run the finest mesh and collect KE at multiple time snapshots.

N_fine = 64
ns_fine = NavierStokesEquations{2}(eos, mu = mu, Pr = 0.72)
n_snapshots = 5
dt_snap = t_final / n_snapshots
ke_history = Float64[]
t_history = Float64[]

# Run a single simulation to final time and collect KE at snapshots.
# We run in intervals, restarting from the previous state each time.
let current_U = nothing, coords_f = nothing
    for snap in 1:n_snapshots
        t_start = (snap - 1) * dt_snap
        t_end_snap = snap * dt_snap

        if snap == 1
            mesh_f = StructuredMesh2D(0.0, L, 0.0, L, N_fine, N_fine)
            prob_f = HyperbolicProblem2D(
                ns_fine, mesh_f, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
                PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
                PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
                tgv_ic; initial_time = t_start, final_time = t_end_snap, cfl = 0.3,
            )
            coords_f, U_f, t_f = solve_hyperbolic(prob_f)
        else
            prev_U = current_U
            mesh_f = StructuredMesh2D(0.0, L, 0.0, L, N_fine, N_fine)
            restart_ic = let U_p = prev_U, Nf = N_fine
                function (x, y)
                    ix = clamp(Int(floor(x / (L / Nf))) + 1, 1, Nf)
                    iy = clamp(Int(floor(y / (L / Nf))) + 1, 1, Nf)
                    return conserved_to_primitive(ns_fine, U_p[ix, iy])
                end
            end
            prob_f = HyperbolicProblem2D(
                ns_fine, mesh_f, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
                PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
                PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
                restart_ic; initial_time = t_start, final_time = t_end_snap, cfl = 0.3,
            )
            coords_f, U_f, t_f = solve_hyperbolic(prob_f)
        end
        current_U = U_f
        push!(t_history, t_f)
        push!(ke_history, compute_ke(ns_fine, coords_f, U_f, N_fine))
    end
end

ke_exact_history = [KE_analytical_0 * exp(-decay_rate * t) for t in t_history]

5-element Vector{Float64}:
 2.422276977978242e-5
 2.346970303217362e-5
 2.2740048533928117e-5
 2.2033078416736782e-5
 2.134808744114032e-5

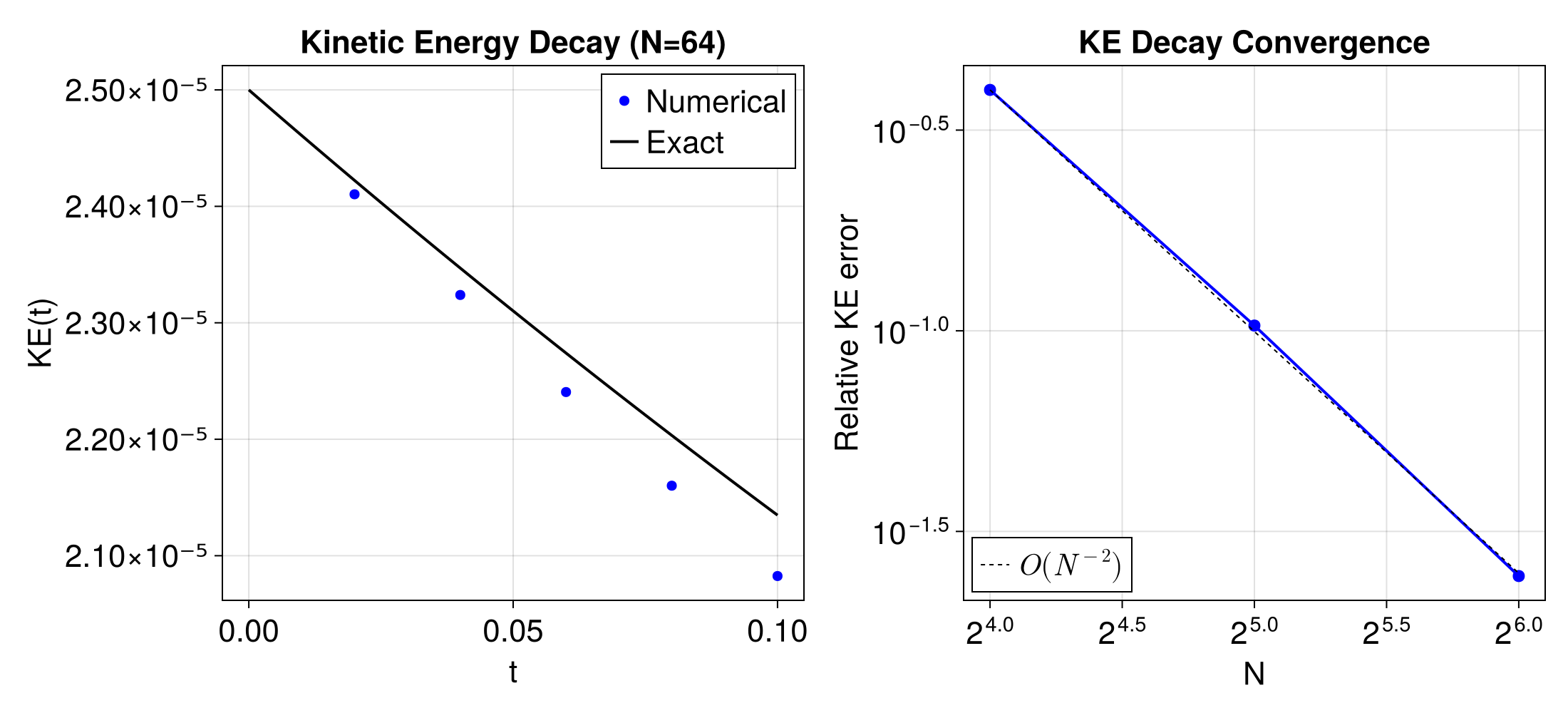

Visualisation

fig = Figure(fontsize = 22, size = (1100, 500))
ax1 = Axis(
    fig[1, 1], xlabel = "t", ylabel = "KE(t)",
    title = "Kinetic Energy Decay (N=64)",
)
scatter!(ax1, t_history, ke_history, color = :blue, markersize = 10, label = "Numerical")
t_ref = range(0, t_final, length = 100)
lines!(ax1, collect(t_ref), KE_analytical_0 .* exp.(-decay_rate .* t_ref), color = :black, linewidth = 2, label = "Exact")
axislegend(ax1, position = :rt)

ax2 = Axis(
    fig[1, 2], xlabel = "N", ylabel = "Relative KE error",
    xscale = log2, yscale = log10,
    title = "KE Decay Convergence",
)
scatterlines!(ax2, resolutions, ke_errors, color = :blue, marker = :circle, linewidth = 2, markersize = 12)
e_ref = ke_errors[1]
N_ref = resolutions[1]
lines!(
    ax2, resolutions, e_ref .* (N_ref ./ resolutions) .^ 2,
    color = :black, linestyle = :dash, linewidth = 1, label = L"O(N^{-2})",
)
axislegend(ax2, position = :lb)
resize_to_layout!(fig)
fig

Test Assertions

Relative KE error at N=64 should be < 5%. KE errors should decrease with resolution.

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using FiniteVolumeMethod
using StaticArrays
using CairoMakie

rho0 = 1.0
P0 = 100.0     # high pressure → low Mach
U0 = 0.01      # small velocity amplitude
L = 1.0
k = 2 * pi / L
mu = 0.01
nu = mu / rho0
decay_rate = 4 * nu * k^2

gamma = 1.4
eos = IdealGasEOS(gamma)

function tgv_ic(x, y)
    vx = -U0 * cos(k * x) * sin(k * y)
    vy = U0 * sin(k * x) * cos(k * y)
    P = P0 - rho0 * U0^2 / 4.0 * (cos(2 * k * x) + cos(2 * k * y))
    return SVector(rho0, vx, vy, P)
end

function compute_ke(law, coords, U, N)
    dx = L / N
    ke = 0.0
    for iy in 1:N, ix in 1:N
        w = conserved_to_primitive(law, U[ix, iy])
        ke += 0.5 * w[1] * (w[2]^2 + w[3]^2) * dx * dx
    end
    return ke
end

KE_analytical_0 = 0.25 * rho0 * U0^2 * L^2

t_final = 0.1
KE_exact_final = KE_analytical_0 * exp(-decay_rate * t_final)

resolutions = [16, 32, 64]
ke_errors = Float64[]

for N in resolutions
    ns = NavierStokesEquations{2}(eos, mu = mu, Pr = 0.72)
    mesh = StructuredMesh2D(0.0, L, 0.0, L, N, N)
    prob = HyperbolicProblem2D(
        ns, mesh, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
        PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
        PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
        tgv_ic; final_time = t_final, cfl = 0.3,
    )
    coords, U, t_end = solve_hyperbolic(prob)
    ke_num = compute_ke(ns, coords, U, N)
    ke_exact = KE_analytical_0 * exp(-decay_rate * t_end)
    push!(ke_errors, abs(ke_num - ke_exact) / ke_exact)
end

function convergence_rates(errs)
    return [log2(errs[i] / errs[i + 1]) for i in 1:(length(errs) - 1)]
end
rates = convergence_rates(ke_errors)

N_fine = 64
ns_fine = NavierStokesEquations{2}(eos, mu = mu, Pr = 0.72)
n_snapshots = 5
dt_snap = t_final / n_snapshots
ke_history = Float64[]
t_history = Float64[]

# Run a single simulation to final time and collect KE at snapshots.
# We run in intervals, restarting from the previous state each time.
let current_U = nothing, coords_f = nothing
    for snap in 1:n_snapshots
        t_start = (snap - 1) * dt_snap
        t_end_snap = snap * dt_snap

        if snap == 1
            mesh_f = StructuredMesh2D(0.0, L, 0.0, L, N_fine, N_fine)
            prob_f = HyperbolicProblem2D(
                ns_fine, mesh_f, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
                PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
                PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
                tgv_ic; initial_time = t_start, final_time = t_end_snap, cfl = 0.3,
            )
            coords_f, U_f, t_f = solve_hyperbolic(prob_f)
        else
            prev_U = current_U
            mesh_f = StructuredMesh2D(0.0, L, 0.0, L, N_fine, N_fine)
            restart_ic = let U_p = prev_U, Nf = N_fine
                function (x, y)
                    ix = clamp(Int(floor(x / (L / Nf))) + 1, 1, Nf)
                    iy = clamp(Int(floor(y / (L / Nf))) + 1, 1, Nf)
                    return conserved_to_primitive(ns_fine, U_p[ix, iy])
                end
            end
            prob_f = HyperbolicProblem2D(
                ns_fine, mesh_f, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
                PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
                PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
                restart_ic; initial_time = t_start, final_time = t_end_snap, cfl = 0.3,
            )
            coords_f, U_f, t_f = solve_hyperbolic(prob_f)
        end
        current_U = U_f
        push!(t_history, t_f)
        push!(ke_history, compute_ke(ns_fine, coords_f, U_f, N_fine))
    end
end

ke_exact_history = [KE_analytical_0 * exp(-decay_rate * t) for t in t_history]

fig = Figure(fontsize = 22, size = (1100, 500))
ax1 = Axis(
    fig[1, 1], xlabel = "t", ylabel = "KE(t)",
    title = "Kinetic Energy Decay (N=64)",
)
scatter!(ax1, t_history, ke_history, color = :blue, markersize = 10, label = "Numerical")
t_ref = range(0, t_final, length = 100)
lines!(ax1, collect(t_ref), KE_analytical_0 .* exp.(-decay_rate .* t_ref), color = :black, linewidth = 2, label = "Exact")
axislegend(ax1, position = :rt)

ax2 = Axis(
    fig[1, 2], xlabel = "N", ylabel = "Relative KE error",
    xscale = log2, yscale = log10,
    title = "KE Decay Convergence",
)
scatterlines!(ax2, resolutions, ke_errors, color = :blue, marker = :circle, linewidth = 2, markersize = 12)
e_ref = ke_errors[1]
N_ref = resolutions[1]
lines!(
    ax2, resolutions, e_ref .* (N_ref ./ resolutions) .^ 2,
    color = :black, linestyle = :dash, linewidth = 1, label = L"O(N^{-2})",
)
axislegend(ax2, position = :lb)
resize_to_layout!(fig)
fig
