Species Conservation Verification

This example verifies that the reactive Euler solver conserves the total mass of each species to machine precision when using periodic boundary conditions, both with and without chemical reactions.

Mathematical Setup

Three species (fuel, oxidizer, product) are advected on a periodic domain. Without reactions, each species' total mass $\int \rho Y_k\,dx$ is individually conserved. With reactions, total mass $\int \rho\,dx$ and total species mass $\sum_k \int \rho Y_k\,dx$ are conserved.

Inputs

  • Resolution: $N = 100$
  • 3 species: fuel, oxidizer, product
  • Periodic BCs
  • Solver: HLLC + MUSCL(Minmod)
using FiniteVolumeMethod
using StaticArrays
using CairoMakie

gamma = 1.4
eos = IdealGasEOS(gamma)
law = ReactiveEulerEquations{1}(eos, (:fuel, :oxidizer, :product))

N = 100
mesh = StructuredMesh1D(0.0, 1.0, N)
dx = mesh.dx
t_final = 0.3
0.3

Initial Condition with 3 Species

function three_species_ic(x)
    rho = 1.0 + 0.15 * sin(2 * pi * x)
    v = 0.5
    P = 1.0
    Y_fuel = 0.5 + 0.2 * cos(2 * pi * x)
    Y_ox = 0.3 + 0.1 * sin(4 * pi * x)
    Y_prod = 1.0 - Y_fuel - Y_ox
    return SVector(rho, v, P, Y_fuel, Y_ox, Y_prod)
end
three_species_ic (generic function with 1 method)

Case 1: No Reactions — Individual Conservation

prob_noreact = HyperbolicProblem(
    law, mesh, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
    PeriodicHyperbolicBC(), PeriodicHyperbolicBC(), three_species_ic;
    final_time = t_final, cfl = 0.4
)

# Compute initial totals
U0 = FiniteVolumeMethod.initialize_1d(prob_noreact)
nc = ncells(mesh)
mass0_total = sum(U0[i + 2][1] * dx for i in 1:nc)
mass0_fuel = sum(U0[i + 2][4] * dx for i in 1:nc)
mass0_ox = sum(U0[i + 2][5] * dx for i in 1:nc)
mass0_prod = sum(U0[i + 2][6] * dx for i in 1:nc)

x, U_nr, t_nr = solve_hyperbolic(prob_noreact)

mass_total_nr = sum(U_nr[i][1] * dx for i in 1:nc)
mass_fuel_nr = sum(U_nr[i][4] * dx for i in 1:nc)
mass_ox_nr = sum(U_nr[i][5] * dx for i in 1:nc)
mass_prod_nr = sum(U_nr[i][6] * dx for i in 1:nc)

err_total_nr = abs(mass_total_nr - mass0_total) / abs(mass0_total)
err_fuel_nr = abs(mass_fuel_nr - mass0_fuel) / abs(mass0_fuel)
err_ox_nr = abs(mass_ox_nr - mass0_ox) / abs(mass0_ox)
err_prod_nr = abs(mass_prod_nr - mass0_prod) / abs(mass0_prod)
8.326672684688672e-15

Case 2: With Reactions — Total Mass Conservation

rxn = ArrheniusReaction{3}(
    500.0, 0.0, 5.0,
    (1.0, 0.5, 0.0),    # fuel + 0.5 oxidizer consumed
    (0.0, 0.0, 1.5),    # 1.5 product created (mass balance: 1 + 0.5 = 1.5)
    0.5,
)
mech = ReactionMechanism{3, 1}((rxn,), (1.0, 1.0, 1.0))
chem = ChemistrySource(mech; mu_mol = 1.0)

prob_react = HyperbolicProblem(
    law, mesh, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
    PeriodicHyperbolicBC(), PeriodicHyperbolicBC(), three_species_ic;
    final_time = 0.1, cfl = 0.3
)

x_r, U_r, t_r = solve_coupled(prob_react, chem; splitting = StrangSplitting())

mass_total_r = sum(U_r[i][1] * dx for i in 1:nc)
# Sum of all species partial densities
mass_species_r = sum(U_r[i][4] + U_r[i][5] + U_r[i][6] for i in 1:nc) * dx

err_total_r = abs(mass_total_r - mass0_total) / abs(mass0_total)
err_species_r = abs(mass_species_r - mass0_total) / abs(mass0_total)
0.0075937502338556655

Visualisation

fig = Figure(fontsize = 20, size = (1100, 450))

ax1 = Axis(
    fig[1, 1], xlabel = "Species", ylabel = "Relative error",
    yscale = log10, title = "No reactions: individual conservation"
)
errs_nr = [err_total_nr, err_fuel_nr, err_ox_nr, err_prod_nr]
errs_nr_plot = max.(errs_nr, 1.0e-16)
barplot!(ax1, 1:4, errs_nr_plot, color = :steelblue)
hlines!(ax1, [eps(Float64)], color = :red, linestyle = :dash, linewidth = 1, label = "Machine ε")
ax1.xticks = (1:4, ["Total ρ", "ρY_fuel", "ρY_ox", "ρY_prod"])
axislegend(ax1, position = :rt)

ax2 = Axis(
    fig[1, 2], xlabel = "Quantity", ylabel = "Relative error",
    yscale = log10, title = "With reactions: total mass conservation"
)
errs_r = [err_total_r, err_species_r]
errs_r_plot = max.(errs_r, 1.0e-16)
barplot!(ax2, 1:2, errs_r_plot, color = :coral)
hlines!(ax2, [eps(Float64)], color = :red, linestyle = :dash, linewidth = 1, label = "Machine ε")
ax2.xticks = (1:2, ["Total ρ", "Σ ρY_k"])
axislegend(ax2, position = :rt)

resize_to_layout!(fig)
fig

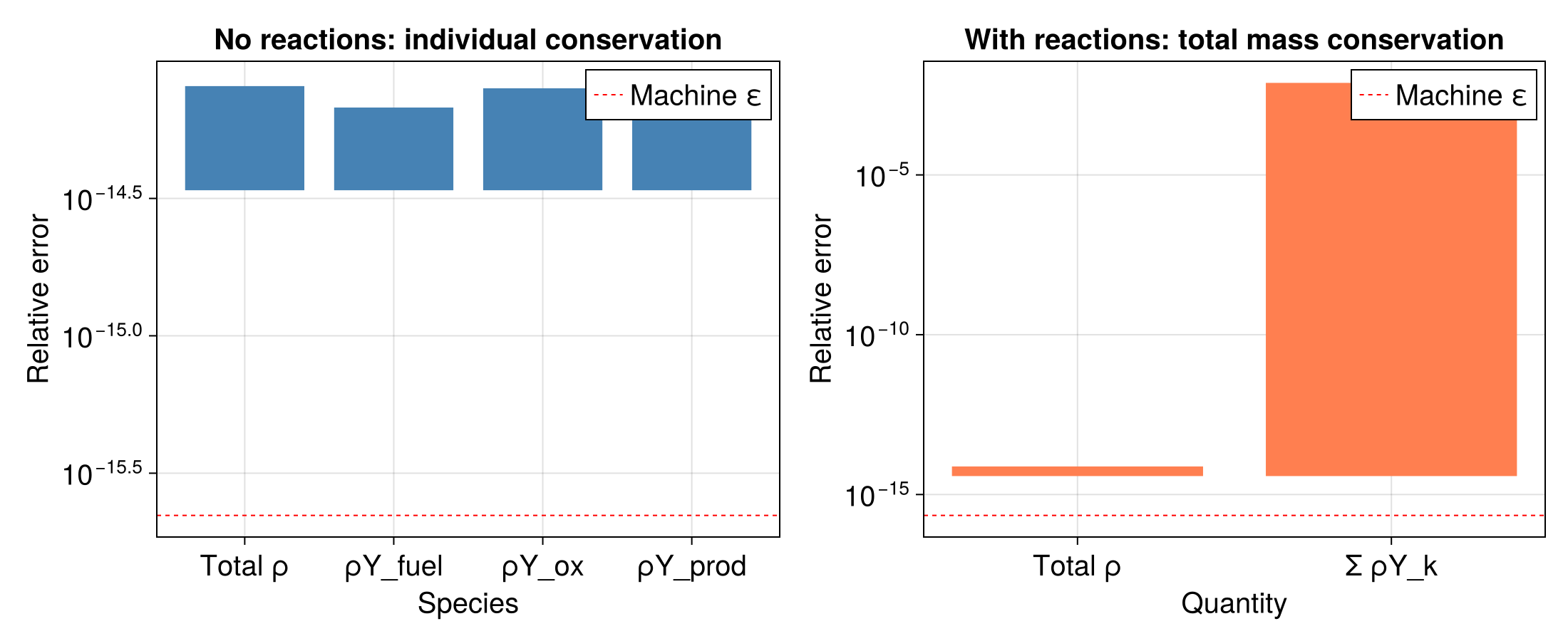

Example block output

Test Assertions

# No reactions: individual species conserved

# With reactions: total mass conserved

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using FiniteVolumeMethod
using StaticArrays
using CairoMakie

gamma = 1.4
eos = IdealGasEOS(gamma)
law = ReactiveEulerEquations{1}(eos, (:fuel, :oxidizer, :product))

N = 100
mesh = StructuredMesh1D(0.0, 1.0, N)
dx = mesh.dx
t_final = 0.3

function three_species_ic(x)
    rho = 1.0 + 0.15 * sin(2 * pi * x)
    v = 0.5
    P = 1.0
    Y_fuel = 0.5 + 0.2 * cos(2 * pi * x)
    Y_ox = 0.3 + 0.1 * sin(4 * pi * x)
    Y_prod = 1.0 - Y_fuel - Y_ox
    return SVector(rho, v, P, Y_fuel, Y_ox, Y_prod)
end

prob_noreact = HyperbolicProblem(
    law, mesh, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
    PeriodicHyperbolicBC(), PeriodicHyperbolicBC(), three_species_ic;
    final_time = t_final, cfl = 0.4
)

# Compute initial totals
U0 = FiniteVolumeMethod.initialize_1d(prob_noreact)
nc = ncells(mesh)
mass0_total = sum(U0[i + 2][1] * dx for i in 1:nc)
mass0_fuel = sum(U0[i + 2][4] * dx for i in 1:nc)
mass0_ox = sum(U0[i + 2][5] * dx for i in 1:nc)
mass0_prod = sum(U0[i + 2][6] * dx for i in 1:nc)

x, U_nr, t_nr = solve_hyperbolic(prob_noreact)

mass_total_nr = sum(U_nr[i][1] * dx for i in 1:nc)
mass_fuel_nr = sum(U_nr[i][4] * dx for i in 1:nc)
mass_ox_nr = sum(U_nr[i][5] * dx for i in 1:nc)
mass_prod_nr = sum(U_nr[i][6] * dx for i in 1:nc)

err_total_nr = abs(mass_total_nr - mass0_total) / abs(mass0_total)
err_fuel_nr = abs(mass_fuel_nr - mass0_fuel) / abs(mass0_fuel)
err_ox_nr = abs(mass_ox_nr - mass0_ox) / abs(mass0_ox)
err_prod_nr = abs(mass_prod_nr - mass0_prod) / abs(mass0_prod)

rxn = ArrheniusReaction{3}(
    500.0, 0.0, 5.0,
    (1.0, 0.5, 0.0),    # fuel + 0.5 oxidizer consumed
    (0.0, 0.0, 1.5),    # 1.5 product created (mass balance: 1 + 0.5 = 1.5)
    0.5,
)
mech = ReactionMechanism{3, 1}((rxn,), (1.0, 1.0, 1.0))
chem = ChemistrySource(mech; mu_mol = 1.0)

prob_react = HyperbolicProblem(
    law, mesh, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
    PeriodicHyperbolicBC(), PeriodicHyperbolicBC(), three_species_ic;
    final_time = 0.1, cfl = 0.3
)

x_r, U_r, t_r = solve_coupled(prob_react, chem; splitting = StrangSplitting())

mass_total_r = sum(U_r[i][1] * dx for i in 1:nc)
# Sum of all species partial densities
mass_species_r = sum(U_r[i][4] + U_r[i][5] + U_r[i][6] for i in 1:nc) * dx

err_total_r = abs(mass_total_r - mass0_total) / abs(mass0_total)
err_species_r = abs(mass_species_r - mass0_total) / abs(mass0_total)

fig = Figure(fontsize = 20, size = (1100, 450))

ax1 = Axis(
    fig[1, 1], xlabel = "Species", ylabel = "Relative error",
    yscale = log10, title = "No reactions: individual conservation"
)
errs_nr = [err_total_nr, err_fuel_nr, err_ox_nr, err_prod_nr]
errs_nr_plot = max.(errs_nr, 1.0e-16)
barplot!(ax1, 1:4, errs_nr_plot, color = :steelblue)
hlines!(ax1, [eps(Float64)], color = :red, linestyle = :dash, linewidth = 1, label = "Machine ε")
ax1.xticks = (1:4, ["Total ρ", "ρY_fuel", "ρY_ox", "ρY_prod"])
axislegend(ax1, position = :rt)

ax2 = Axis(
    fig[1, 2], xlabel = "Quantity", ylabel = "Relative error",
    yscale = log10, title = "With reactions: total mass conservation"
)
errs_r = [err_total_r, err_species_r]
errs_r_plot = max.(errs_r, 1.0e-16)
barplot!(ax2, 1:2, errs_r_plot, color = :coral)
hlines!(ax2, [eps(Float64)], color = :red, linestyle = :dash, linewidth = 1, label = "Machine ε")
ax2.xticks = (1:2, ["Total ρ", "Σ ρY_k"])
axislegend(ax2, position = :rt)

resize_to_layout!(fig)
fig

# No reactions: individual species conserved

# With reactions: total mass conserved
