Acoustic Wave Convergence

This example verifies the 1D Euler solver's convergence on a smooth acoustic wave with a known exact solution. A small-amplitude right-traveling sound wave propagates on a uniform background. After one full period, the wave returns to its initial position on the periodic domain.

Mathematical Setup

The linearised Euler equations admit a right-traveling acoustic wave:

\[\rho = \rho_0 + \varepsilon\sin(2\pi x), \quad v = \frac{\varepsilon c_s}{\rho_0}\sin(2\pi x), \quad P = P_0 + \varepsilon c_s^2 \sin(2\pi x)\]

where $c_s = \sqrt{\gamma P_0/\rho_0}$ is the sound speed. The wave propagates with speed $c_s$ and returns to the initial condition at $t = 1/c_s$ on the domain $[0,1]$.

Reference

• LeVeque, R.J. (2002). Finite Volume Methods for Hyperbolic Problems. Cambridge University Press. Chapter 14.

using FiniteVolumeMethod
using StaticArrays
using CairoMakie

gamma = 1.4
eos = IdealGasEOS(gamma)
law = EulerEquations{1}(eos)

rho0 = 1.0
P0 = 1.0
cs = sqrt(gamma * P0 / rho0)  # sound speed
eps_amp = 1.0e-4               # small amplitude for linearity
t_final = 1.0 / cs            # one full period

function acoustic_ic(x)
    rho = rho0 + eps_amp * sin(2 * pi * x)
    v = eps_amp * cs / rho0 * sin(2 * pi * x)
    P = P0 + eps_amp * cs^2 * sin(2 * pi * x)
    return SVector(rho, v, P)
end

acoustic_ic (generic function with 1 method)

Convergence Measurement

After one full period, the exact solution equals the IC.

function compute_acoustic_error(N)
    mesh = StructuredMesh1D(0.0, 1.0, N)
    prob = HyperbolicProblem(
        law, mesh, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
        PeriodicHyperbolicBC(), PeriodicHyperbolicBC(), acoustic_ic;
        final_time = t_final, cfl = 0.4,
    )
    x, U, t_end = solve_hyperbolic(prob)

    err_rho = 0.0
    err_P = 0.0
    for i in eachindex(x)
        w_num = conserved_to_primitive(law, U[i])
        w_exact = acoustic_ic(x[i])
        err_rho += abs(w_num[1] - w_exact[1])
        err_P += abs(w_num[3] - w_exact[3])
    end
    return err_rho / N, err_P / N
end

resolutions = [32, 64, 128, 256]
results = [compute_acoustic_error(N) for N in resolutions]
errors_rho = [r[1] for r in results]
errors_P = [r[2] for r in results]

4-element Vector{Float64}:
 8.342263324488675e-6
 2.7583909731968004e-6
 8.01407676802833e-7
 2.2289892794838048e-7

Convergence Rates

function convergence_rates(errs)
    return [log2(errs[i] / errs[i + 1]) for i in 1:(length(errs) - 1)]
end

rates_rho = convergence_rates(errors_rho)
rates_P = convergence_rates(errors_P)

3-element Vector{Float64}:
 1.5966118934343807
 1.7832187236071873
 1.8461466517762606

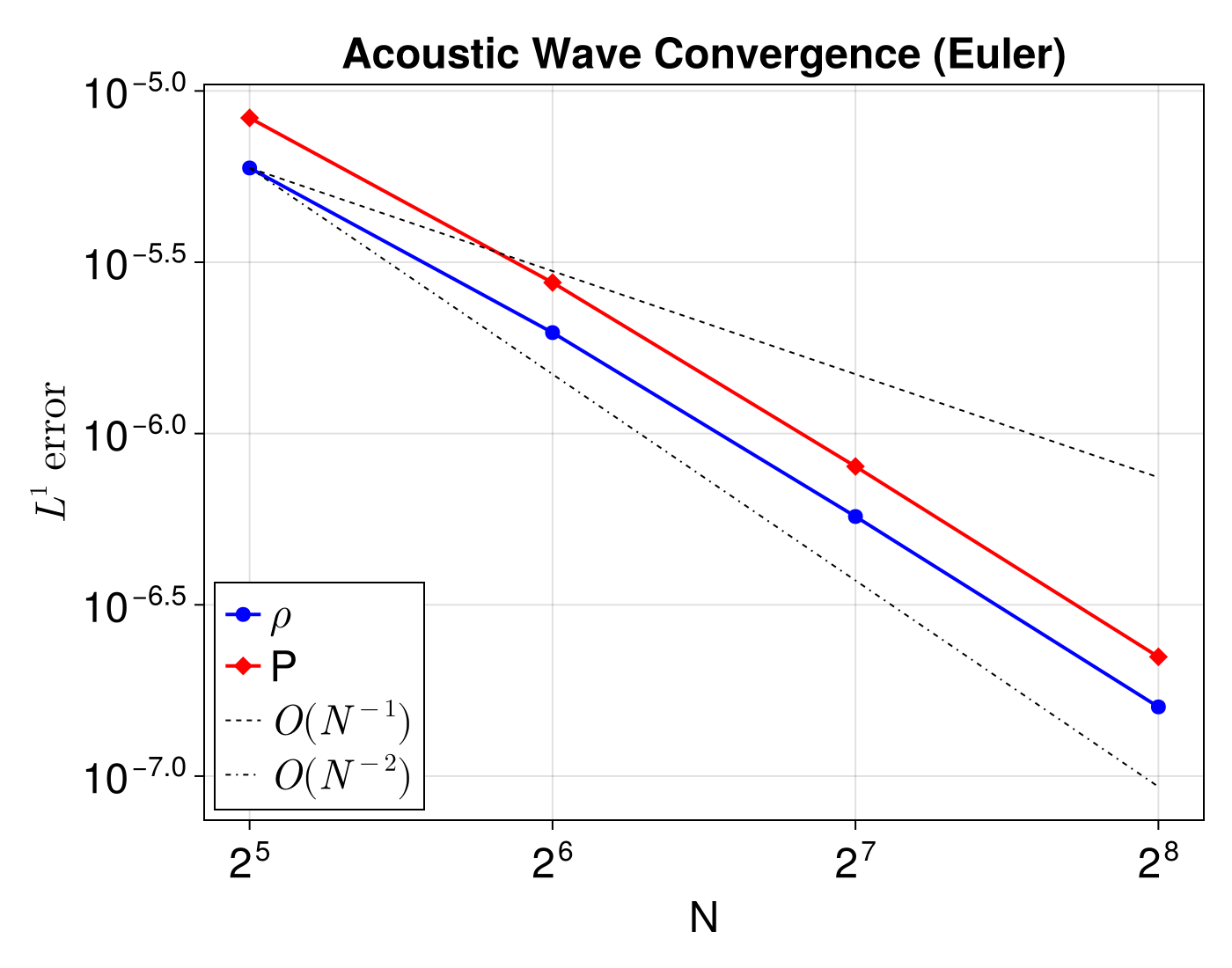

Visualisation

fig = Figure(fontsize = 24, size = (700, 550))
ax = Axis(
    fig[1, 1], xlabel = "N", ylabel = L"L^1 \text{ error}",
    xscale = log2, yscale = log10,
    title = "Acoustic Wave Convergence (Euler)",
)
scatterlines!(
    ax, resolutions, errors_rho, color = :blue, marker = :circle,
    linewidth = 2, markersize = 12, label = L"\rho",
)
scatterlines!(
    ax, resolutions, errors_P, color = :red, marker = :diamond,
    linewidth = 2, markersize = 12, label = "P",
)
e_ref = errors_rho[1]
N_ref = resolutions[1]
lines!(
    ax, resolutions, e_ref .* (N_ref ./ resolutions) .^ 1,
    color = :black, linestyle = :dash, linewidth = 1, label = L"O(N^{-1})",
)
lines!(
    ax, resolutions, e_ref .* (N_ref ./ resolutions) .^ 2,
    color = :black, linestyle = :dashdot, linewidth = 1, label = L"O(N^{-2})",
)
axislegend(ax, position = :lb)
resize_to_layout!(fig)
fig

Test Assertions

MUSCL with HLLC should achieve at least first-order convergence on smooth acoustic data.

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using FiniteVolumeMethod
using StaticArrays
using CairoMakie

gamma = 1.4
eos = IdealGasEOS(gamma)
law = EulerEquations{1}(eos)

rho0 = 1.0
P0 = 1.0
cs = sqrt(gamma * P0 / rho0)  # sound speed
eps_amp = 1.0e-4               # small amplitude for linearity
t_final = 1.0 / cs            # one full period

function acoustic_ic(x)
    rho = rho0 + eps_amp * sin(2 * pi * x)
    v = eps_amp * cs / rho0 * sin(2 * pi * x)
    P = P0 + eps_amp * cs^2 * sin(2 * pi * x)
    return SVector(rho, v, P)
end

function compute_acoustic_error(N)
    mesh = StructuredMesh1D(0.0, 1.0, N)
    prob = HyperbolicProblem(
        law, mesh, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
        PeriodicHyperbolicBC(), PeriodicHyperbolicBC(), acoustic_ic;
        final_time = t_final, cfl = 0.4,
    )
    x, U, t_end = solve_hyperbolic(prob)

    err_rho = 0.0
    err_P = 0.0
    for i in eachindex(x)
        w_num = conserved_to_primitive(law, U[i])
        w_exact = acoustic_ic(x[i])
        err_rho += abs(w_num[1] - w_exact[1])
        err_P += abs(w_num[3] - w_exact[3])
    end
    return err_rho / N, err_P / N
end

resolutions = [32, 64, 128, 256]
results = [compute_acoustic_error(N) for N in resolutions]
errors_rho = [r[1] for r in results]
errors_P = [r[2] for r in results]

function convergence_rates(errs)
    return [log2(errs[i] / errs[i + 1]) for i in 1:(length(errs) - 1)]
end

rates_rho = convergence_rates(errors_rho)
rates_P = convergence_rates(errors_P)

fig = Figure(fontsize = 24, size = (700, 550))
ax = Axis(
    fig[1, 1], xlabel = "N", ylabel = L"L^1 \text{ error}",
    xscale = log2, yscale = log10,
    title = "Acoustic Wave Convergence (Euler)",
)
scatterlines!(
    ax, resolutions, errors_rho, color = :blue, marker = :circle,
    linewidth = 2, markersize = 12, label = L"\rho",
)
scatterlines!(
    ax, resolutions, errors_P, color = :red, marker = :diamond,
    linewidth = 2, markersize = 12, label = "P",
)
e_ref = errors_rho[1]
N_ref = resolutions[1]
lines!(
    ax, resolutions, e_ref .* (N_ref ./ resolutions) .^ 1,
    color = :black, linestyle = :dash, linewidth = 1, label = L"O(N^{-1})",
)
lines!(
    ax, resolutions, e_ref .* (N_ref ./ resolutions) .^ 2,
    color = :black, linestyle = :dashdot, linewidth = 1, label = L"O(N^{-2})",
)
axislegend(ax, position = :lb)
resize_to_layout!(fig)
fig
