Smooth Advection Order of Accuracy

This example measures the convergence rate of each reconstruction scheme on a smooth problem — a small-amplitude density wave advected by uniform flow with periodic boundary conditions.

Mathematical Setup

We solve the 1D Euler equations with initial condition:

\[\rho(x,0) = 1 + 0.01\sin(2\pi x), \qquad v = 1, \qquad P = 1.\]

The exact solution at time $t$ is:

\[\rho_{\text{exact}}(x,t) = 1 + 0.01\sin\!\bigl(2\pi(x - vt)\bigr).\]

Inputs

  • Resolutions: $N \in \{32, 64, 128, 256\}$
  • Schemes: NoReconstruction, MUSCL(Minmod), MUSCL(VanLeer), WENO3
  • Riemann solver: HLLCSolver
  • Final time: $t_f = 0.05$
using FiniteVolumeMethod
using StaticArrays
using CairoMakie

gamma = 1.4
eos = IdealGasEOS(gamma)
law = EulerEquations{1}(eos)

rho0 = 1.0
v0 = 1.0
P0 = 1.0
amp = 0.01
t_final = 0.05

advection_ic(x) = SVector(rho0 + amp * sin(2 * pi * x), v0, P0)
advection_ic (generic function with 1 method)

Convergence Measurement

The $L^1$ density error at each resolution and reconstruction scheme:

function compute_error(N, recon)
    mesh = StructuredMesh1D(0.0, 1.0, N)
    prob = HyperbolicProblem(
        law, mesh, HLLCSolver(), recon,
        PeriodicHyperbolicBC(), PeriodicHyperbolicBC(), advection_ic;
        final_time = t_final, cfl = 0.4
    )
    x, U, t_end = solve_hyperbolic(prob)
    err = 0.0
    for i in eachindex(x)
        x_shifted = mod(x[i] - v0 * t_end, 1.0)
        rho_exact = rho0 + amp * sin(2 * pi * x_shifted)
        rho_num = conserved_to_primitive(law, U[i])[1]
        err += abs(rho_num - rho_exact)
    end
    return err / N
end

resolutions = [32, 64, 128, 256]

schemes = [
    ("NoReconstruction", NoReconstruction()),
    ("MUSCL (Minmod)", CellCenteredMUSCL(MinmodLimiter())),
    ("MUSCL (VanLeer)", CellCenteredMUSCL(VanLeerLimiter())),
    ("WENO3", WENO3()),
]
colors = [:gray, :blue, :cyan, :red]
markers = [:circle, :utriangle, :diamond, :star5]

all_errors = Dict{String, Vector{Float64}}()
for (name, recon) in schemes
    errs = [compute_error(N, recon) for N in resolutions]
    all_errors[name] = errs
end

Convergence Rates

function convergence_rates(errs)
    return [log2(errs[i] / errs[i + 1]) for i in 1:(length(errs) - 1)]
end
convergence_rates (generic function with 1 method)

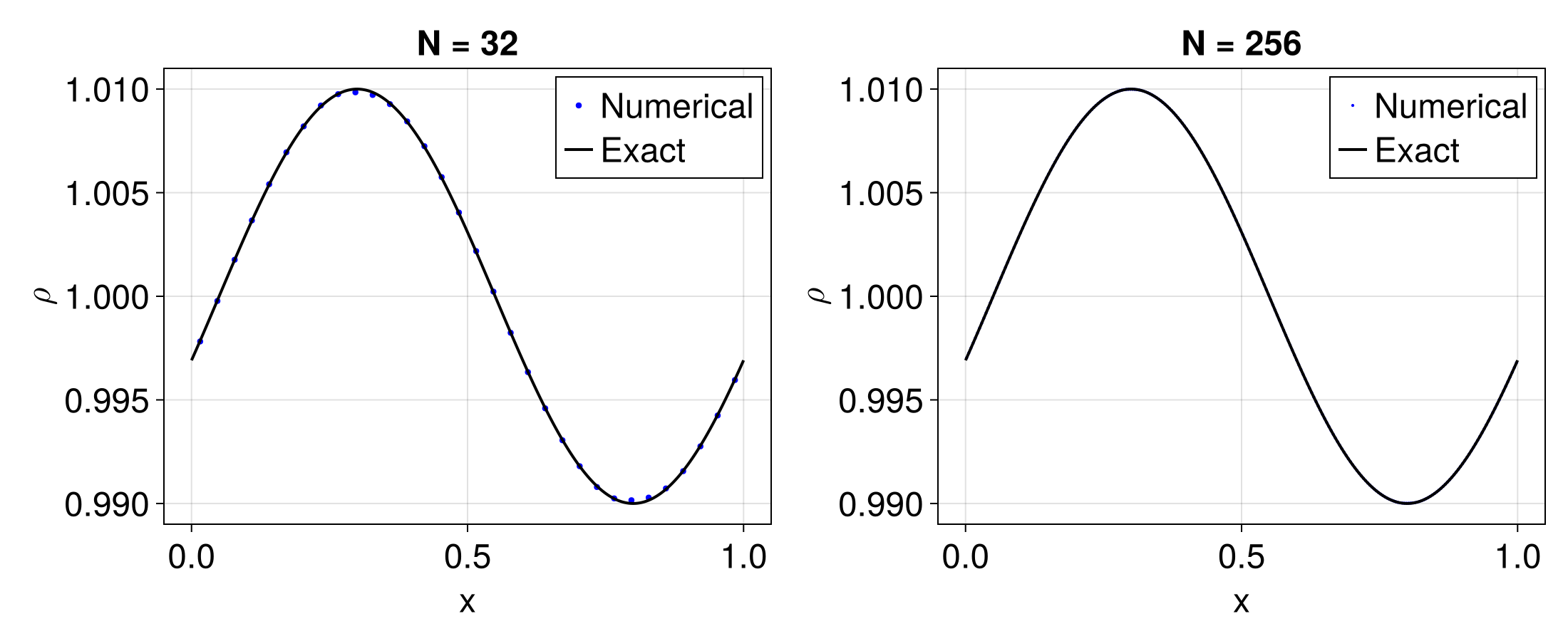

Visualisation — Solutions at Low and High Resolution

mesh_lo = StructuredMesh1D(0.0, 1.0, 32)
mesh_hi = StructuredMesh1D(0.0, 1.0, 256)
prob_lo = HyperbolicProblem(
    law, mesh_lo, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
    PeriodicHyperbolicBC(), PeriodicHyperbolicBC(), advection_ic;
    final_time = t_final, cfl = 0.4
)
prob_hi = HyperbolicProblem(
    law, mesh_hi, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
    PeriodicHyperbolicBC(), PeriodicHyperbolicBC(), advection_ic;
    final_time = t_final, cfl = 0.4
)
x_lo, U_lo, t_lo = solve_hyperbolic(prob_lo)
x_hi, U_hi, t_hi = solve_hyperbolic(prob_hi)
rho_lo = [conserved_to_primitive(law, U_lo[i])[1] for i in eachindex(U_lo)]
rho_hi = [conserved_to_primitive(law, U_hi[i])[1] for i in eachindex(U_hi)]

x_exact = range(0.0, 1.0, length = 500)
rho_exact = [rho0 + amp * sin(2 * pi * mod(xi - v0 * t_lo, 1.0)) for xi in x_exact]

fig1 = Figure(fontsize = 24, size = (1100, 450))
ax1 = Axis(fig1[1, 1], xlabel = "x", ylabel = L"\rho", title = "N = 32")
scatter!(ax1, x_lo, rho_lo, color = :blue, markersize = 6, label = "Numerical")
lines!(ax1, x_exact, rho_exact, color = :black, linewidth = 2, label = "Exact")
axislegend(ax1, position = :rt)
ax2 = Axis(fig1[1, 2], xlabel = "x", ylabel = L"\rho", title = "N = 256")
scatter!(ax2, x_hi, rho_hi, color = :blue, markersize = 3, label = "Numerical")
lines!(ax2, x_exact, rho_exact, color = :black, linewidth = 2, label = "Exact")
axislegend(ax2, position = :rt)
resize_to_layout!(fig1)
fig1
Example block output

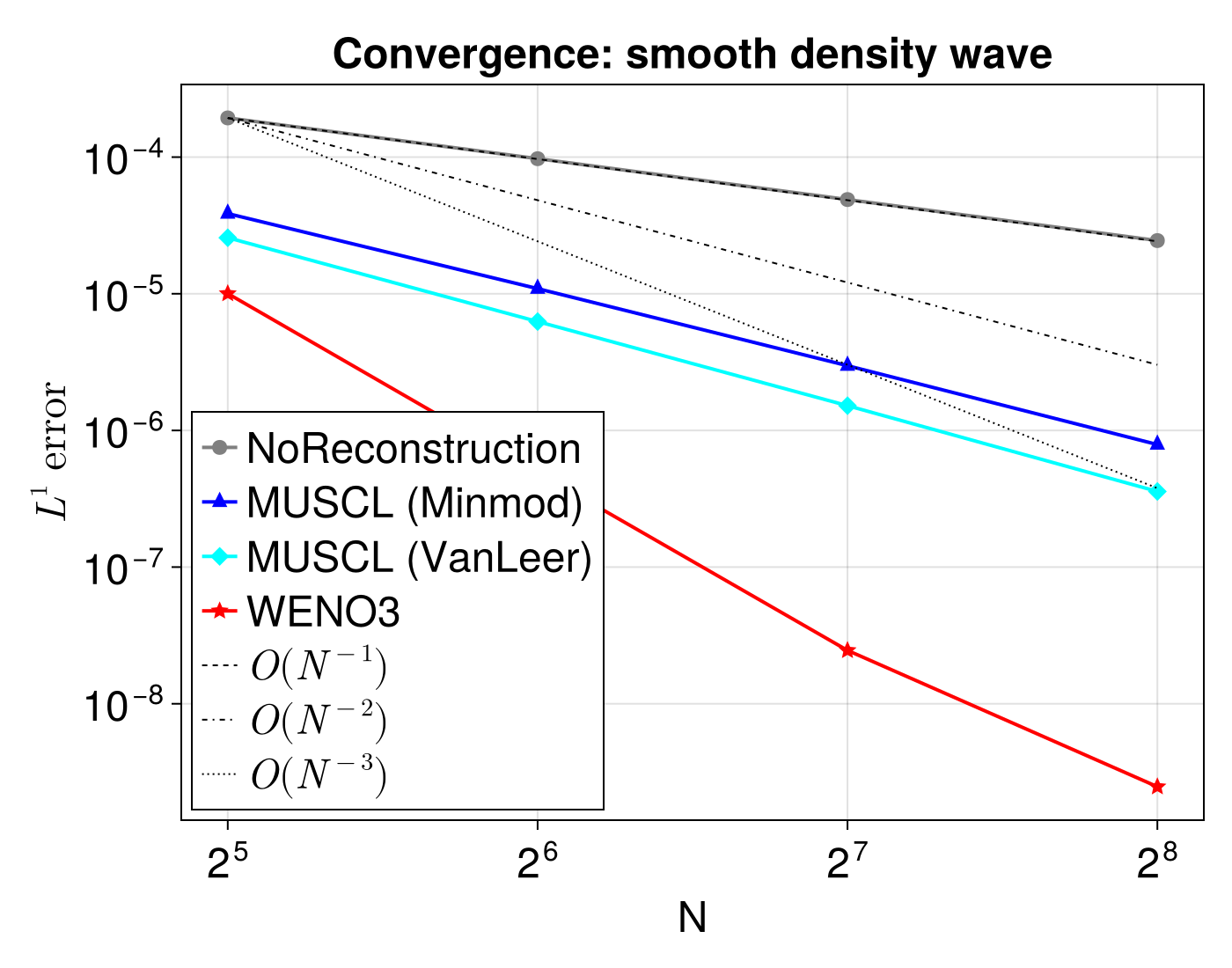

Visualisation — Convergence Plot

fig2 = Figure(fontsize = 24, size = (700, 550))
ax = Axis(
    fig2[1, 1], xlabel = "N", ylabel = L"L^1 \text{ error}",
    xscale = log2, yscale = log10,
    title = "Convergence: smooth density wave"
)
for (idx, (name, _)) in enumerate(schemes)
    errs = all_errors[name]
    scatterlines!(
        ax, resolutions, errs, label = name, marker = markers[idx],
        color = colors[idx], linewidth = 2, markersize = 12
    )
end

# Reference slopes
e_ref = all_errors["NoReconstruction"][1]
N_ref = resolutions[1]
lines!(
    ax, resolutions, e_ref .* (N_ref ./ resolutions) .^ 1,
    color = :black, linestyle = :dash, linewidth = 1, label = L"O(N^{-1})"
)
lines!(
    ax, resolutions, e_ref .* (N_ref ./ resolutions) .^ 2,
    color = :black, linestyle = :dashdot, linewidth = 1, label = L"O(N^{-2})"
)
lines!(
    ax, resolutions, e_ref .* (N_ref ./ resolutions) .^ 3,
    color = :black, linestyle = :dot, linewidth = 1, label = L"O(N^{-3})"
)
axislegend(ax, position = :lb)
resize_to_layout!(fig2)
fig2
Example block output

Test Assertions

rates_norecon = convergence_rates(all_errors["NoReconstruction"])
rates_muscl_mm = convergence_rates(all_errors["MUSCL (Minmod)"])
rates_muscl_vl = convergence_rates(all_errors["MUSCL (VanLeer)"])
rates_weno3 = convergence_rates(all_errors["WENO3"])

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using FiniteVolumeMethod
using StaticArrays
using CairoMakie

gamma = 1.4
eos = IdealGasEOS(gamma)
law = EulerEquations{1}(eos)

rho0 = 1.0
v0 = 1.0
P0 = 1.0
amp = 0.01
t_final = 0.05

advection_ic(x) = SVector(rho0 + amp * sin(2 * pi * x), v0, P0)

function compute_error(N, recon)
    mesh = StructuredMesh1D(0.0, 1.0, N)
    prob = HyperbolicProblem(
        law, mesh, HLLCSolver(), recon,
        PeriodicHyperbolicBC(), PeriodicHyperbolicBC(), advection_ic;
        final_time = t_final, cfl = 0.4
    )
    x, U, t_end = solve_hyperbolic(prob)
    err = 0.0
    for i in eachindex(x)
        x_shifted = mod(x[i] - v0 * t_end, 1.0)
        rho_exact = rho0 + amp * sin(2 * pi * x_shifted)
        rho_num = conserved_to_primitive(law, U[i])[1]
        err += abs(rho_num - rho_exact)
    end
    return err / N
end

resolutions = [32, 64, 128, 256]

schemes = [
    ("NoReconstruction", NoReconstruction()),
    ("MUSCL (Minmod)", CellCenteredMUSCL(MinmodLimiter())),
    ("MUSCL (VanLeer)", CellCenteredMUSCL(VanLeerLimiter())),
    ("WENO3", WENO3()),
]
colors = [:gray, :blue, :cyan, :red]
markers = [:circle, :utriangle, :diamond, :star5]

all_errors = Dict{String, Vector{Float64}}()
for (name, recon) in schemes
    errs = [compute_error(N, recon) for N in resolutions]
    all_errors[name] = errs
end

function convergence_rates(errs)
    return [log2(errs[i] / errs[i + 1]) for i in 1:(length(errs) - 1)]
end

mesh_lo = StructuredMesh1D(0.0, 1.0, 32)
mesh_hi = StructuredMesh1D(0.0, 1.0, 256)
prob_lo = HyperbolicProblem(
    law, mesh_lo, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
    PeriodicHyperbolicBC(), PeriodicHyperbolicBC(), advection_ic;
    final_time = t_final, cfl = 0.4
)
prob_hi = HyperbolicProblem(
    law, mesh_hi, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
    PeriodicHyperbolicBC(), PeriodicHyperbolicBC(), advection_ic;
    final_time = t_final, cfl = 0.4
)
x_lo, U_lo, t_lo = solve_hyperbolic(prob_lo)
x_hi, U_hi, t_hi = solve_hyperbolic(prob_hi)
rho_lo = [conserved_to_primitive(law, U_lo[i])[1] for i in eachindex(U_lo)]
rho_hi = [conserved_to_primitive(law, U_hi[i])[1] for i in eachindex(U_hi)]

x_exact = range(0.0, 1.0, length = 500)
rho_exact = [rho0 + amp * sin(2 * pi * mod(xi - v0 * t_lo, 1.0)) for xi in x_exact]

fig1 = Figure(fontsize = 24, size = (1100, 450))
ax1 = Axis(fig1[1, 1], xlabel = "x", ylabel = L"\rho", title = "N = 32")
scatter!(ax1, x_lo, rho_lo, color = :blue, markersize = 6, label = "Numerical")
lines!(ax1, x_exact, rho_exact, color = :black, linewidth = 2, label = "Exact")
axislegend(ax1, position = :rt)
ax2 = Axis(fig1[1, 2], xlabel = "x", ylabel = L"\rho", title = "N = 256")
scatter!(ax2, x_hi, rho_hi, color = :blue, markersize = 3, label = "Numerical")
lines!(ax2, x_exact, rho_exact, color = :black, linewidth = 2, label = "Exact")
axislegend(ax2, position = :rt)
resize_to_layout!(fig1)
fig1

fig2 = Figure(fontsize = 24, size = (700, 550))
ax = Axis(
    fig2[1, 1], xlabel = "N", ylabel = L"L^1 \text{ error}",
    xscale = log2, yscale = log10,
    title = "Convergence: smooth density wave"
)
for (idx, (name, _)) in enumerate(schemes)
    errs = all_errors[name]
    scatterlines!(
        ax, resolutions, errs, label = name, marker = markers[idx],
        color = colors[idx], linewidth = 2, markersize = 12
    )
end

# Reference slopes
e_ref = all_errors["NoReconstruction"][1]
N_ref = resolutions[1]
lines!(
    ax, resolutions, e_ref .* (N_ref ./ resolutions) .^ 1,
    color = :black, linestyle = :dash, linewidth = 1, label = L"O(N^{-1})"
)
lines!(
    ax, resolutions, e_ref .* (N_ref ./ resolutions) .^ 2,
    color = :black, linestyle = :dashdot, linewidth = 1, label = L"O(N^{-2})"
)
lines!(
    ax, resolutions, e_ref .* (N_ref ./ resolutions) .^ 3,
    color = :black, linestyle = :dot, linewidth = 1, label = L"O(N^{-3})"
)
axislegend(ax, position = :lb)
resize_to_layout!(fig2)
fig2

rates_norecon = convergence_rates(all_errors["NoReconstruction"])
rates_muscl_mm = convergence_rates(all_errors["MUSCL (Minmod)"])
rates_muscl_vl = convergence_rates(all_errors["MUSCL (VanLeer)"])
rates_weno3 = convergence_rates(all_errors["WENO3"])
