Navier-Stokes Taylor-Green Vortex Convergence
This example measures the convergence rate of the Navier-Stokes solver using the 2D Taylor-Green vortex, which has a known analytical solution.
Mathematical Setup
The Taylor-Green vortex is an exact solution of the incompressible Navier-Stokes equations. In the low-Mach limit, it also satisfies the compressible equations. The velocity field decays exponentially:
\[v_x = -U_0 \cos(kx)\sin(ky)\,e^{-2\nu k^2 t}, \qquad v_y = U_0 \sin(kx)\cos(ky)\,e^{-2\nu k^2 t}\]
where $\nu = \mu/\rho_0$ and $k = 2\pi/L$.
Reference
- Taylor, G.I. & Green, A.E. (1937). Mechanism of the Production of Small Eddies from Large Ones. Proc. R. Soc. A, 158, 499-521.
using FiniteVolumeMethod
using StaticArrays
using CairoMakie
rho0 = 1.0
P0 = 100.0 # high pressure → low Mach
U0 = 0.01 # small velocity amplitude
L = 1.0
k = 2 * pi / L
mu = 0.01
nu = mu / rho0
t_final = 0.1
gamma = 1.4
eos = IdealGasEOS(gamma)
function tgv_ic(x, y)
vx = -U0 * cos(k * x) * sin(k * y)
vy = U0 * sin(k * x) * cos(k * y)
P = P0 - rho0 * U0^2 / 4.0 * (cos(2 * k * x) + cos(2 * k * y))
return SVector(rho0, vx, vy, P)
endtgv_ic (generic function with 1 method)Convergence Measurement
We compute the $L^\infty$ velocity error at each resolution.
function compute_ns_error(N)
ns = NavierStokesEquations{2}(eos, mu = mu, Pr = 0.72)
mesh = StructuredMesh2D(0.0, L, 0.0, L, N, N)
prob = HyperbolicProblem2D(
ns, mesh, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
tgv_ic; final_time = t_final, cfl = 0.3,
)
coords, U, t = solve_hyperbolic(prob)
W = to_primitive(ns, U)
decay = exp(-2 * nu * k^2 * t)
max_err = 0.0
for iy in 1:N, ix in 1:N
x, y = coords[ix, iy]
vx_exact = -U0 * cos(k * x) * sin(k * y) * decay
vy_exact = U0 * sin(k * x) * cos(k * y) * decay
err = max(abs(W[ix, iy][2] - vx_exact), abs(W[ix, iy][3] - vy_exact))
max_err = max(max_err, err)
end
return max_err
end
resolutions = [16, 32, 64]
errors = [compute_ns_error(N) for N in resolutions]3-element Vector{Float64}:
0.0019024198636314622
0.0005541445500856501
0.00014703312353359695Convergence Rates
function convergence_rates(errs)
return [log2(errs[i] / errs[i + 1]) for i in 1:(length(errs) - 1)]
end
rates = convergence_rates(errors)2-element Vector{Float64}:
1.7795014224738963

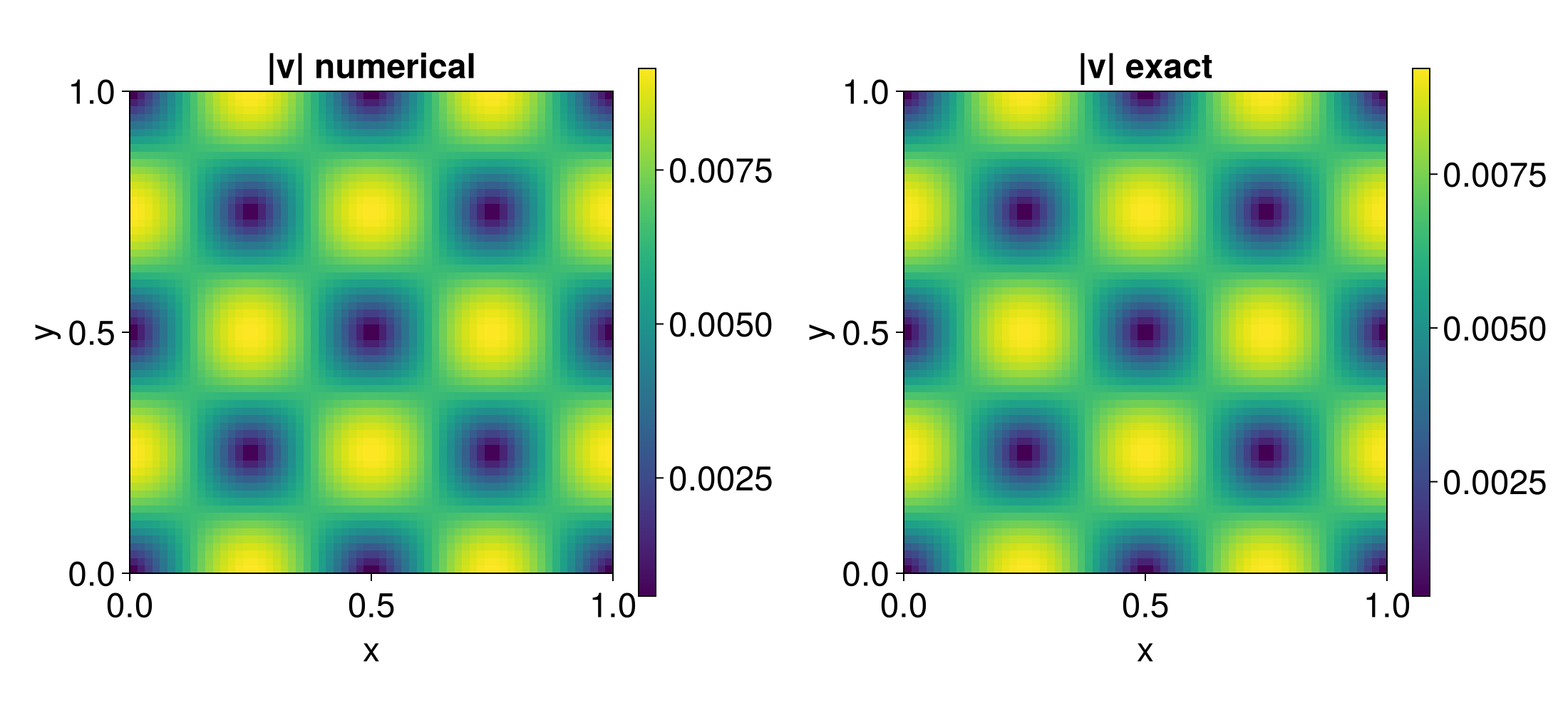

1.9141211550735513Visualisation — Solution at N=64
ns_fine = NavierStokesEquations{2}(eos, mu = mu, Pr = 0.72)
mesh_fine = StructuredMesh2D(0.0, L, 0.0, L, 64, 64)
prob_fine = HyperbolicProblem2D(
ns_fine, mesh_fine, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
tgv_ic; final_time = t_final, cfl = 0.3,
)
coords_fine, U_fine, t_fine = solve_hyperbolic(prob_fine)
W_fine = to_primitive(ns_fine, U_fine)
decay_fine = exp(-2 * nu * k^2 * t_fine)
xc = [coords_fine[i, 1][1] for i in 1:64]
yc = [coords_fine[1, j][2] for j in 1:64]
vmag = [sqrt(W_fine[i, j][2]^2 + W_fine[i, j][3]^2) for i in 1:64, j in 1:64]
vmag_exact = [
sqrt(
(-U0 * cos(k * xc[i]) * sin(k * yc[j]) * decay_fine)^2 +
(U0 * sin(k * xc[i]) * cos(k * yc[j]) * decay_fine)^2
) for i in 1:64, j in 1:64
]
fig1 = Figure(fontsize = 24, size = (1100, 500))
ax1 = Axis(fig1[1, 1], xlabel = "x", ylabel = "y", title = "|v| numerical", aspect = DataAspect())
hm1 = heatmap!(ax1, xc, yc, vmag, colormap = :viridis)
Colorbar(fig1[1, 2], hm1)
ax2 = Axis(fig1[1, 3], xlabel = "x", ylabel = "y", title = "|v| exact", aspect = DataAspect())
hm2 = heatmap!(ax2, xc, yc, vmag_exact, colormap = :viridis)
Colorbar(fig1[1, 4], hm2)
resize_to_layout!(fig1)
fig1

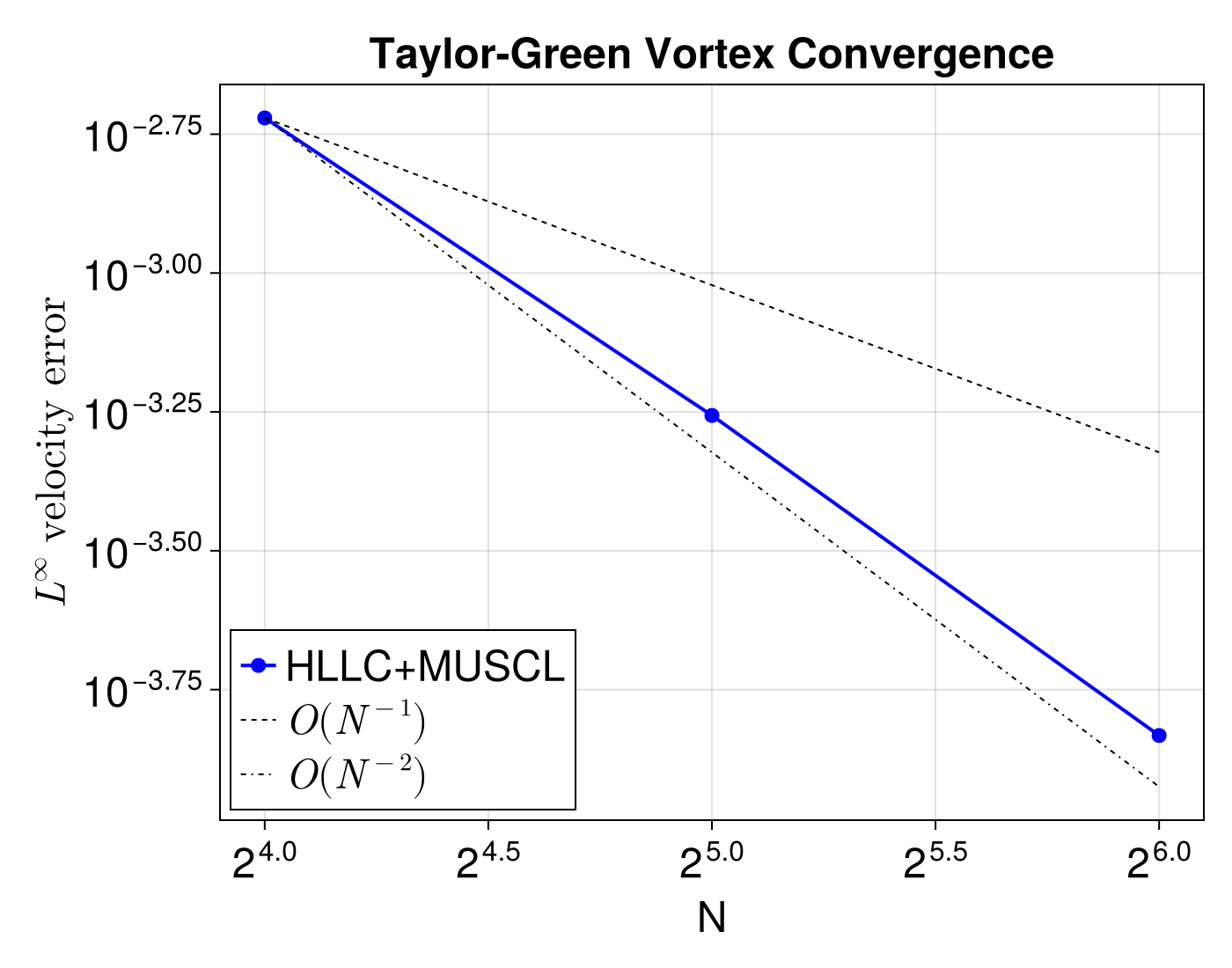

Visualisation — Convergence Plot
fig2 = Figure(fontsize = 24, size = (700, 550))
ax = Axis(
fig2[1, 1], xlabel = "N", ylabel = L"L^\infty \text{ velocity error}",
xscale = log2, yscale = log10,
title = "Taylor-Green Vortex Convergence",
)
scatterlines!(ax, resolutions, errors, color = :blue, marker = :circle, linewidth = 2, markersize = 12, label = "HLLC+MUSCL")
# Reference slopes
e_ref = errors[1]
N_ref = resolutions[1]
lines!(
ax, resolutions, e_ref .* (N_ref ./ resolutions) .^ 1,
color = :black, linestyle = :dash, linewidth = 1, label = L"O(N^{-1})",
)
lines!(
ax, resolutions, e_ref .* (N_ref ./ resolutions) .^ 2,
color = :black, linestyle = :dashdot, linewidth = 1, label = L"O(N^{-2})",
)
axislegend(ax, position = :lb)
resize_to_layout!(fig2)
fig2
Test Assertions
