Decoupled Spatial–Temporal MMS (Parabolic)
This example separates spatial and temporal errors in a method of manufactured solutions (MMS) study. Part A isolates spatial error using a time-polynomial exact solution (so the ODE integrator is exact). Part B isolates temporal error on a fixed mesh by sweeping solver tolerances.
Mathematical Setup
Part A (spatial): The exact solution $u(x,y,t) = \sin(\pi x)\sin(\pi y)(1+t)$ is linear in time, so any standard ODE integrator reproduces it exactly. The diffusion equation $\partial_t u = \nabla^2 u + S$ with $D = 1$ yields:
\[S(x,y,t) = \sin(\pi x)\sin(\pi y) + 2\pi^2\sin(\pi x)\sin(\pi y)(1+t).\]
Part B (temporal): On a fixed fine mesh ($N = 80$), we use the standard MMS solution $u = \sin(\pi x)\sin(\pi y)e^{-t}$ and sweep ODE solver tolerances to verify that the temporal error decreases independently.
Reference
- Roache, P.J. (1998). Verification and Validation in Computational Science and Engineering. Hermosa Publishers, Chapters 5 and 8.
- Oberkampf, W.L. & Roy, C.J. (2010). Verification and Validation in Scientific Computing. Cambridge University Press.
using FiniteVolumeMethod, DelaunayTriangulation
using OrdinaryDiffEq
using CairoMakiePart A — Spatial Convergence (Time-Polynomial Exact Solution)
The exact solution is linear in $t$, so Tsit5 reproduces it exactly. Only the FVM spatial discretisation error remains.
u_exact_A(x, y, t) = sin(pi * x) * sin(pi * y) * (1 + t)
function source_A(x, y, t, u, p)
return sin(pi * x) * sin(pi * y) + 2 * pi^2 * sin(pi * x) * sin(pi * y) * (1 + t)
end
D_const(x, y, t, u, p) = 1.0
bc_zero(x, y, t, u, p) = zero(u)
mesh_sizes_A = [10, 20, 40, 80]
t_final_A = 0.5
errors_A = Float64[]
for N in mesh_sizes_A
tri = triangulate_rectangle(0.0, 1.0, 0.0, 1.0, N, N; single_boundary = true)
mesh = FVMGeometry(tri)
BCs = BoundaryConditions(mesh, bc_zero, Dirichlet)
f0 = (x, y) -> u_exact_A(x, y, 0.0)
initial_condition = [f0(x, y) for (x, y) in DelaunayTriangulation.each_point(tri)]
prob = FVMProblem(
mesh, BCs;
diffusion_function = D_const,
source_function = source_A,
initial_condition = initial_condition,
final_time = t_final_A,
)
sol = solve(prob, Tsit5(); saveat = [t_final_A])
err = 0.0
n_pts = 0
for (j, (x, y)) in enumerate(DelaunayTriangulation.each_point(tri))
e = abs(sol.u[end][j] - u_exact_A(x, y, t_final_A))
err = max(err, e)
n_pts += 1
end
push!(errors_A, err)
endPart A — Convergence Rates
function convergence_rates(errs)
return [log2(errs[i] / errs[i + 1]) for i in 1:(length(errs) - 1)]
end
rates_A = convergence_rates(errors_A)3-element Vector{Float64}:
2.0817116857724143
1.6141419018954637
1.6370248357226262Part B — Temporal Convergence (Fixed Mesh)
Fix the mesh at $N = 80$ and sweep ODE solver tolerances.
u_exact_B(x, y, t) = sin(pi * x) * sin(pi * y) * exp(-t)
function source_B(x, y, t, u, p)
return (2 * pi^2 - 1) * sin(pi * x) * sin(pi * y) * exp(-t)
end
N_fixed = 80
t_final_B = 1.0
tol_values = [1.0e-3, 1.0e-5, 1.0e-7, 1.0e-9]
errors_B = Float64[]
tri_B = triangulate_rectangle(0.0, 1.0, 0.0, 1.0, N_fixed, N_fixed; single_boundary = true)
mesh_B = FVMGeometry(tri_B)
BCs_B = BoundaryConditions(mesh_B, bc_zero, Dirichlet)
f0_B = (x, y) -> u_exact_B(x, y, 0.0)
ic_B = [f0_B(x, y) for (x, y) in DelaunayTriangulation.each_point(tri_B)]
for tol in tol_values
prob = FVMProblem(
mesh_B, BCs_B;
diffusion_function = D_const,
source_function = source_B,
initial_condition = ic_B,
final_time = t_final_B,
)
sol = solve(prob, Tsit5(); saveat = [t_final_B], abstol = tol, reltol = tol)
err = 0.0
for (j, (x, y)) in enumerate(DelaunayTriangulation.each_point(tri_B))
e = abs(sol.u[end][j] - u_exact_B(x, y, t_final_B))
err = max(err, e)
end
push!(errors_B, err)

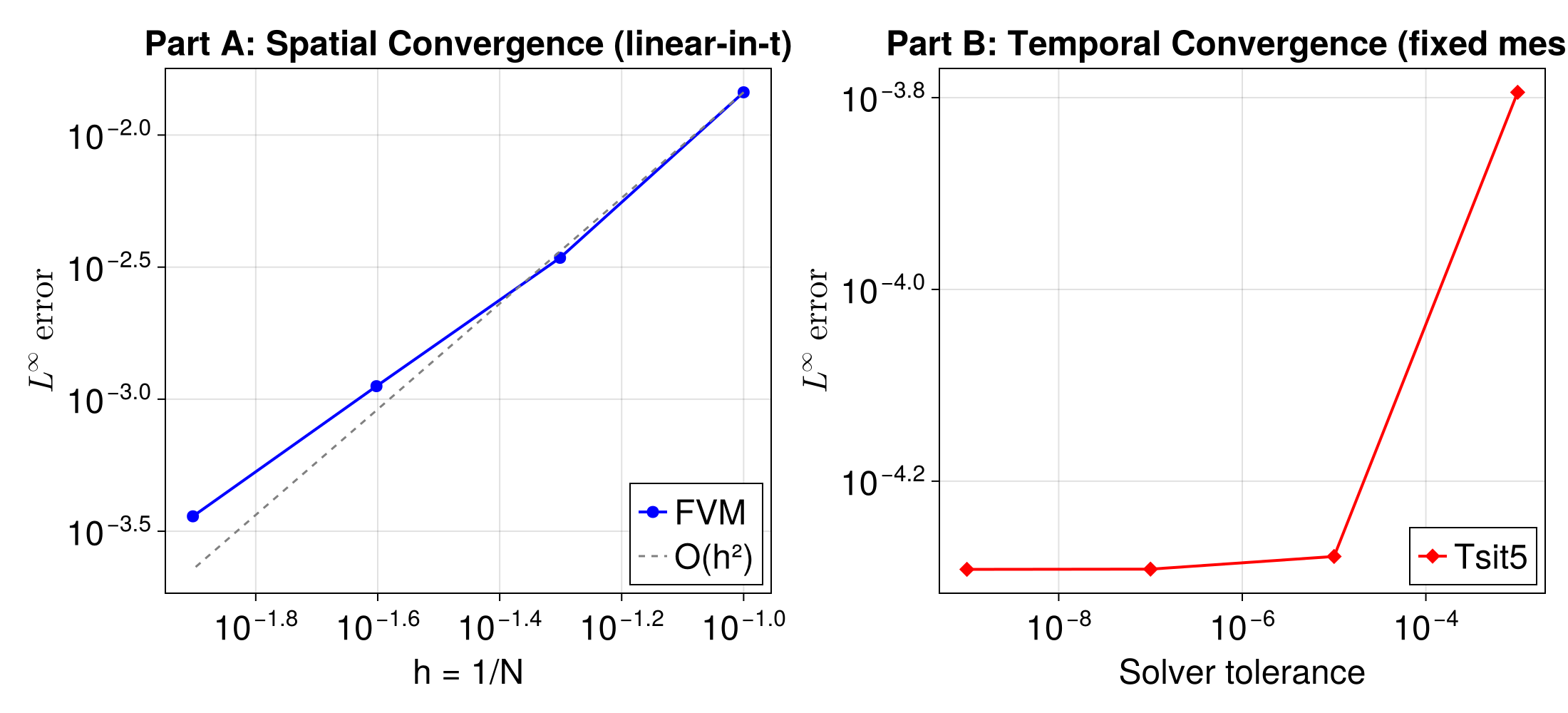

endVisualisation — Spatial Convergence
h_vals = 1.0 ./ mesh_sizes_A
fig1 = Figure(fontsize = 24, size = (1100, 500))
ax1 = Axis(
fig1[1, 1], xlabel = "h = 1/N", ylabel = L"L^\infty \text{ error}",
xscale = log10, yscale = log10,
title = "Part A: Spatial Convergence (linear-in-t)",
)
scatterlines!(
ax1, h_vals, errors_A, color = :blue, marker = :circle,
linewidth = 2, markersize = 12, label = "FVM",
)
lines!(
ax1, h_vals, errors_A[1] .* (h_vals ./ h_vals[1]) .^ 2,
color = :gray, linestyle = :dash, linewidth = 1.5, label = "O(h²)",
)
axislegend(ax1, position = :rb)
# Part B plot
ax2 = Axis(
fig1[1, 2], xlabel = "Solver tolerance", ylabel = L"L^\infty \text{ error}",
xscale = log10, yscale = log10,
title = "Part B: Temporal Convergence (fixed mesh)",
)
scatterlines!(
ax2, tol_values, errors_B, color = :red, marker = :diamond,
linewidth = 2, markersize = 12, label = "Tsit5",
)
axislegend(ax2, position = :rb)
resize_to_layout!(fig1)
fig1
Test Assertions
Part A: Spatial rates should be approximately second order. Part B: Errors should decrease monotonically with tighter tolerances.
Just the code
An uncommented version of this example is given below. You can view the source code for this file here.
using FiniteVolumeMethod, DelaunayTriangulation
using OrdinaryDiffEq
using CairoMakie
u_exact_A(x, y, t) = sin(pi * x) * sin(pi * y) * (1 + t)
function source_A(x, y, t, u, p)
return sin(pi * x) * sin(pi * y) + 2 * pi^2 * sin(pi * x) * sin(pi * y) * (1 + t)
end
D_const(x, y, t, u, p) = 1.0
bc_zero(x, y, t, u, p) = zero(u)
mesh_sizes_A = [10, 20, 40, 80]
t_final_A = 0.5
errors_A = Float64[]
for N in mesh_sizes_A
tri = triangulate_rectangle(0.0, 1.0, 0.0, 1.0, N, N; single_boundary = true)
mesh = FVMGeometry(tri)
BCs = BoundaryConditions(mesh, bc_zero, Dirichlet)
f0 = (x, y) -> u_exact_A(x, y, 0.0)
initial_condition = [f0(x, y) for (x, y) in DelaunayTriangulation.each_point(tri)]
prob = FVMProblem(
mesh, BCs;
diffusion_function = D_const,
source_function = source_A,
initial_condition = initial_condition,
final_time = t_final_A,
)
sol = solve(prob, Tsit5(); saveat = [t_final_A])
err = 0.0
n_pts = 0
for (j, (x, y)) in enumerate(DelaunayTriangulation.each_point(tri))
e = abs(sol.u[end][j] - u_exact_A(x, y, t_final_A))
err = max(err, e)
n_pts += 1
end
push!(errors_A, err)
end
function convergence_rates(errs)
return [log2(errs[i] / errs[i + 1]) for i in 1:(length(errs) - 1)]
end
rates_A = convergence_rates(errors_A)
u_exact_B(x, y, t) = sin(pi * x) * sin(pi * y) * exp(-t)
function source_B(x, y, t, u, p)
return (2 * pi^2 - 1) * sin(pi * x) * sin(pi * y) * exp(-t)
end
N_fixed = 80
t_final_B = 1.0
tol_values = [1.0e-3, 1.0e-5, 1.0e-7, 1.0e-9]
errors_B = Float64[]
tri_B = triangulate_rectangle(0.0, 1.0, 0.0, 1.0, N_fixed, N_fixed; single_boundary = true)
mesh_B = FVMGeometry(tri_B)
BCs_B = BoundaryConditions(mesh_B, bc_zero, Dirichlet)
f0_B = (x, y) -> u_exact_B(x, y, 0.0)
ic_B = [f0_B(x, y) for (x, y) in DelaunayTriangulation.each_point(tri_B)]
for tol in tol_values
prob = FVMProblem(
mesh_B, BCs_B;
diffusion_function = D_const,
source_function = source_B,
initial_condition = ic_B,
final_time = t_final_B,
)
sol = solve(prob, Tsit5(); saveat = [t_final_B], abstol = tol, reltol = tol)
err = 0.0
for (j, (x, y)) in enumerate(DelaunayTriangulation.each_point(tri_B))
e = abs(sol.u[end][j] - u_exact_B(x, y, t_final_B))
err = max(err, e)
end
push!(errors_B, err)
end
h_vals = 1.0 ./ mesh_sizes_A
fig1 = Figure(fontsize = 24, size = (1100, 500))
ax1 = Axis(
fig1[1, 1], xlabel = "h = 1/N", ylabel = L"L^\infty \text{ error}",
xscale = log10, yscale = log10,
title = "Part A: Spatial Convergence (linear-in-t)",
)
scatterlines!(
ax1, h_vals, errors_A, color = :blue, marker = :circle,
linewidth = 2, markersize = 12, label = "FVM",
)
lines!(
ax1, h_vals, errors_A[1] .* (h_vals ./ h_vals[1]) .^ 2,
color = :gray, linestyle = :dash, linewidth = 1.5, label = "O(h²)",
)
axislegend(ax1, position = :rb)
# Part B plot
ax2 = Axis(
fig1[1, 2], xlabel = "Solver tolerance", ylabel = L"L^\infty \text{ error}",
xscale = log10, yscale = log10,
title = "Part B: Temporal Convergence (fixed mesh)",
)
scatterlines!(
ax2, tol_values, errors_B, color = :red, marker = :diamond,
linewidth = 2, markersize = 12, label = "Tsit5",
)
axislegend(ax2, position = :rb)
resize_to_layout!(fig1)
fig1This page was generated using Literate.jl.
