MMS Convergence (Parabolic)
This example verifies the parabolic (vertex-centred) solver using the method of manufactured solutions (MMS). We choose an exact solution, derive the corresponding source term, and confirm second-order convergence as the mesh is refined.
Mathematical Setup
We solve the diffusion equation with a source term on the unit square $\Omega = [0,1]^2$ with homogeneous Dirichlet boundary conditions:
\[\pdv{u}{t} = \nabla^2 u + S(x,y,t), \qquad u\big|_{\partial\Omega} = 0.\]
The manufactured exact solution is:
\[u_{\text{exact}}(x,y,t) = \sin(\pi x)\sin(\pi y)\,e^{-t},\]
which yields the source term:
\[S(x,y,t) = (2\pi^2 - 1)\sin(\pi x)\sin(\pi y)\,e^{-t}.\]
Inputs
- Mesh sizes: $N \in \{10, 20, 40, 80\}$ (characteristic cell size $h = 1/N$)
- Diffusion coefficient: $D = 1$
- Final time: $t_f = 1.0$
- Time integrator:
Tsit5()
using FiniteVolumeMethod, DelaunayTriangulation
using OrdinaryDiffEq
using CairoMakieDefine the exact solution, source, and PDE coefficients:
u_exact(x, y, t) = sin(pi * x) * sin(pi * y) * exp(-t)
function source_mms(x, y, t, u, p)
return (2 * pi^2 - 1) * sin(pi * x) * sin(pi * y) * exp(-t)
end
D_mms(x, y, t, u, p) = 1.0
bc_mms(x, y, t, u, p) = zero(u)bc_mms (generic function with 1 method)Grid Refinement Study
For each mesh size we build a triangulation, solve the PDE, and compute the $L^\infty$ and $L^2$ errors at $t = 1$.
mesh_sizes = [10, 20, 40, 80]
t_final = 1.0
errors_Linf = Float64[]
errors_L2 = Float64[]
last_tri = nothing
last_sol = nothing
for N in mesh_sizes
tri = triangulate_rectangle(0.0, 1.0, 0.0, 1.0, N, N; single_boundary = true)
mesh = FVMGeometry(tri)
BCs = BoundaryConditions(mesh, bc_mms, Dirichlet)
f0 = (x, y) -> u_exact(x, y, 0.0)
initial_condition = [f0(x, y) for (x, y) in DelaunayTriangulation.each_point(tri)]
prob = FVMProblem(
mesh, BCs;
diffusion_function = D_mms,
source_function = source_mms,
initial_condition = initial_condition,
final_time = t_final
)
sol = solve(prob, Tsit5(); saveat = [t_final])
# Cache the finest mesh result for visualisation
global last_tri = tri
global last_sol = sol
# Compute errors at the final time
err_inf = 0.0
err_l2 = 0.0
n_pts = 0
for (j, (x, y)) in enumerate(DelaunayTriangulation.each_point(tri))
e = abs(sol.u[end][j] - u_exact(x, y, t_final))
err_inf = max(err_inf, e)
err_l2 += e^2
n_pts += 1
end
push!(errors_Linf, err_inf)
push!(errors_L2, sqrt(err_l2 / n_pts))
endConvergence Rates
We compute the rate as $p = \log_2(e_N / e_{2N})$:
function convergence_rates(errs)
return [log2(errs[i] / errs[i + 1]) for i in 1:(length(errs) - 1)]
end
rates_Linf = convergence_rates(errors_Linf)
rates_L2 = convergence_rates(errors_L2)3-element Vector{Float64}:
2.076976608697809
2.0434625916472067
1.8153781906855238Visualisation — Solution Comparison

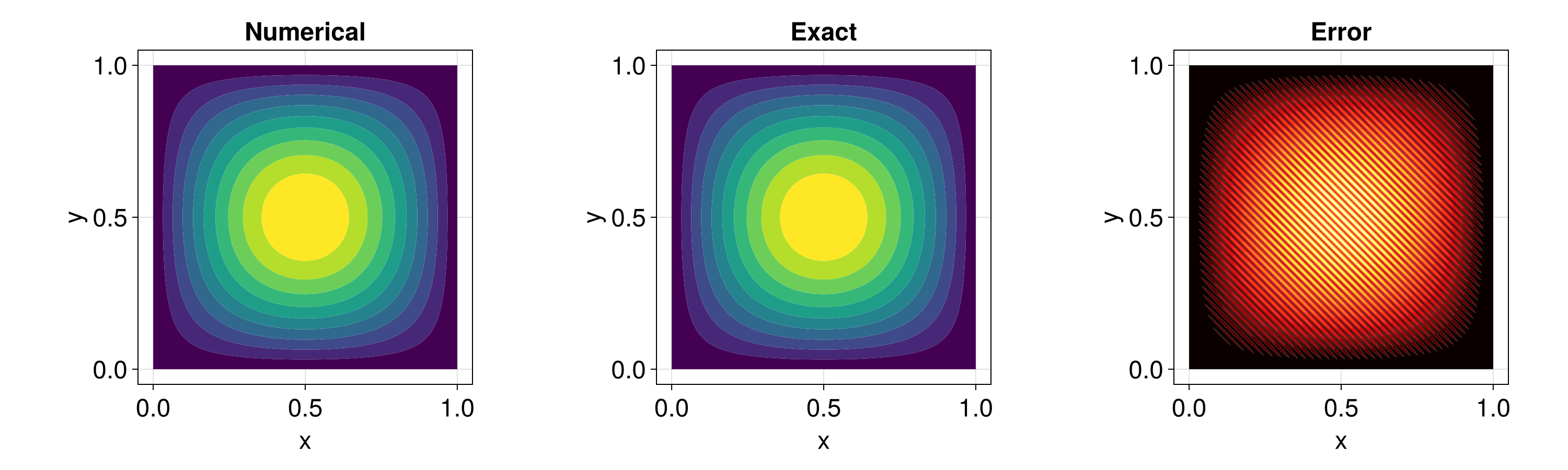

Three panels at the finest mesh: numerical, exact, and error.
tri_fine = last_tri
sol_fine = last_sol
u_num = sol_fine.u[end]
u_ex = [u_exact(x, y, t_final) for (x, y) in DelaunayTriangulation.each_point(tri_fine)]
u_err = abs.(u_num .- u_ex)
fig1 = Figure(fontsize = 24, size = (1500, 450))
ax1 = Axis(fig1[1, 1], xlabel = "x", ylabel = "y", title = "Numerical", aspect = DataAspect())
tricontourf!(ax1, tri_fine, u_num, colormap = :viridis)
ax2 = Axis(fig1[1, 2], xlabel = "x", ylabel = "y", title = "Exact", aspect = DataAspect())
tricontourf!(ax2, tri_fine, u_ex, colormap = :viridis)
ax3 = Axis(fig1[1, 3], xlabel = "x", ylabel = "y", title = "Error", aspect = DataAspect())
tricontourf!(ax3, tri_fine, u_err, colormap = :hot)
resize_to_layout!(fig1)
fig1

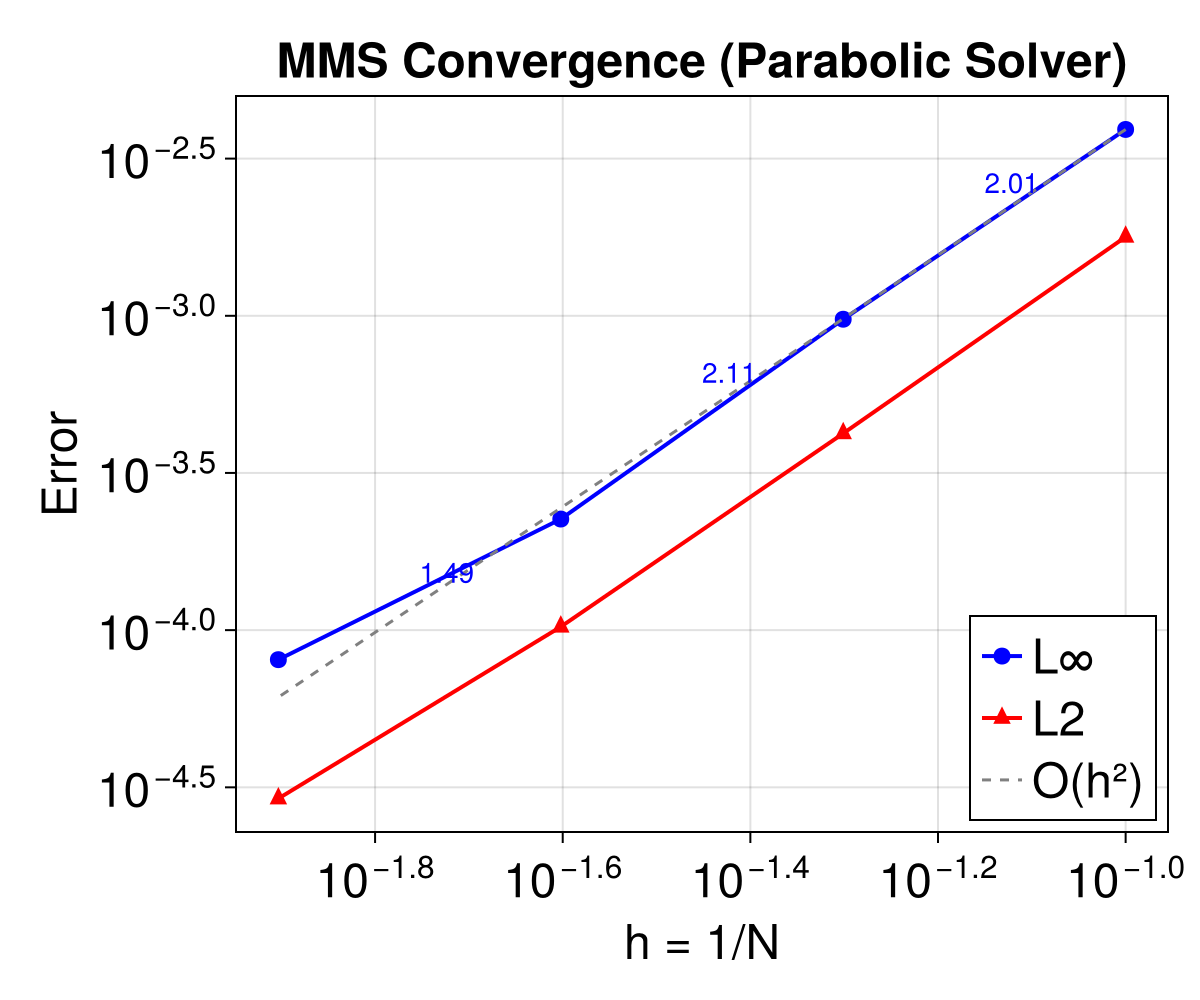

Visualisation — Convergence Plot
h_vals = 1.0 ./ mesh_sizes
fig2 = Figure(fontsize = 24, size = (600, 500))
ax = Axis(
fig2[1, 1], xlabel = "h = 1/N", ylabel = "Error",
xscale = log10, yscale = log10,
title = "MMS Convergence (Parabolic Solver)"
)
scatterlines!(
ax, h_vals, errors_Linf, label = "L∞", marker = :circle,
color = :blue, linewidth = 2, markersize = 12
)
scatterlines!(
ax, h_vals, errors_L2, label = "L2", marker = :utriangle,
color = :red, linewidth = 2, markersize = 12
)
# O(h^2) reference slope
lines!(
ax, h_vals, errors_Linf[1] .* (h_vals ./ h_vals[1]) .^ 2,
color = :gray, linestyle = :dash, linewidth = 1.5, label = "O(h²)"
)
axislegend(ax, position = :rb)
# Annotate rates
for i in eachindex(rates_Linf)
x_mid = sqrt(h_vals[i] * h_vals[i + 1])
text!(ax, x_mid, errors_Linf[i] * 0.6; text = "$(round(rates_Linf[i], digits = 2))", fontsize = 14, color = :blue)
end
resize_to_layout!(fig2)
fig2
Test Assertions
Just the code
