GRMHD Newtonian Limit — Low-Velocity Con2Prim Stability

This example verifies that the GRMHD conserved-to-primitive (con2prim) variable inversion remains stable and convergent in the Newtonian limit (low velocity). Two checks are performed:

1. Con2Prim round-trip at low velocities: Verify that conserved_to_primitive(primitive_to_conserved(W)) recovers W at velocities $v \sim 10^{-6}, 10^{-8}, 10^{-10}$ in Schwarzschild.
2. Static atmosphere stationarity: A uniform atmosphere at rest in Schwarzschild spacetime should remain stationary (within numerical drift tolerance) after many timesteps.

Reference

• Noble, S.C. et al. (2006). Primitive Variable Solvers for Conservative General Relativistic Magnetohydrodynamics. ApJ, 641, 626-637.
• Font, J.A. (2008). Numerical Hydrodynamics and Magnetohydrodynamics in General Relativity. Living Rev. Relativity, 11, 7.

using FiniteVolumeMethod
using StaticArrays
using CairoMakie

gamma = 5.0 / 3.0
eos = IdealGasEOS(gamma)

IdealGasEOS{Float64}(1.6666666666666667)

Check 1 — Con2Prim Round-Trip at Low Velocities

M = 1.0
metric_s = SchwarzschildMetric(M; r_min = 3.0)
law_s = GRMHDEquations{2}(eos, metric_s)

velocities = [1.0e-2, 1.0e-4, 1.0e-6, 1.0e-8, 1.0e-10]
roundtrip_errors = Float64[]

for v in velocities
    w = SVector(1.0, v, 0.0, 0.0, 1.0, 0.1, 0.0, 0.0)
    u = primitive_to_conserved(law_s, w)
    w_rec = conserved_to_primitive(law_s, u)
    err = maximum(abs.(w_rec .- w) ./ (abs.(w) .+ 1.0e-15))
    push!(roundtrip_errors, err)
end

Check 2 — Static Atmosphere Stationarity

A uniform atmosphere at rest in Schwarzschild. We run a short simulation and verify that the solution does not drift significantly.

metric_atm = SchwarzschildMetric(1.0; r_min = 4.0)
law_atm = GRMHDEquations{2}(eos, metric_atm)

rho_atm = 1.0
P_atm = 1.0
N_atm = 16
t_final_atm = 0.5

function static_atm_ic(x, y)
    return SVector(rho_atm, 0.0, 0.0, 0.0, P_atm, 0.0, 0.0, 0.0)
end

mesh_atm = StructuredMesh2D(4.0, 8.0, 0.0, 1.0, N_atm, N_atm)
prob_atm = HyperbolicProblem2D(
    law_atm, mesh_atm, HLLSolver(), CellCenteredMUSCL(MinmodLimiter()),
    TransmissiveBC(), TransmissiveBC(),
    PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
    static_atm_ic; final_time = t_final_atm, cfl = 0.2,
)
coords_atm, U_atm, t_atm, _ = solve_hyperbolic(prob_atm; vector_potential = nothing)

# Compute maximum density drift
max_drift = 0.0
for iy in 1:N_atm, ix in 1:N_atm
    w = conserved_to_primitive(law_atm, U_atm[ix, iy])
    drift = abs(w[1] - rho_atm) / rho_atm
    global max_drift = max(max_drift, drift)
end

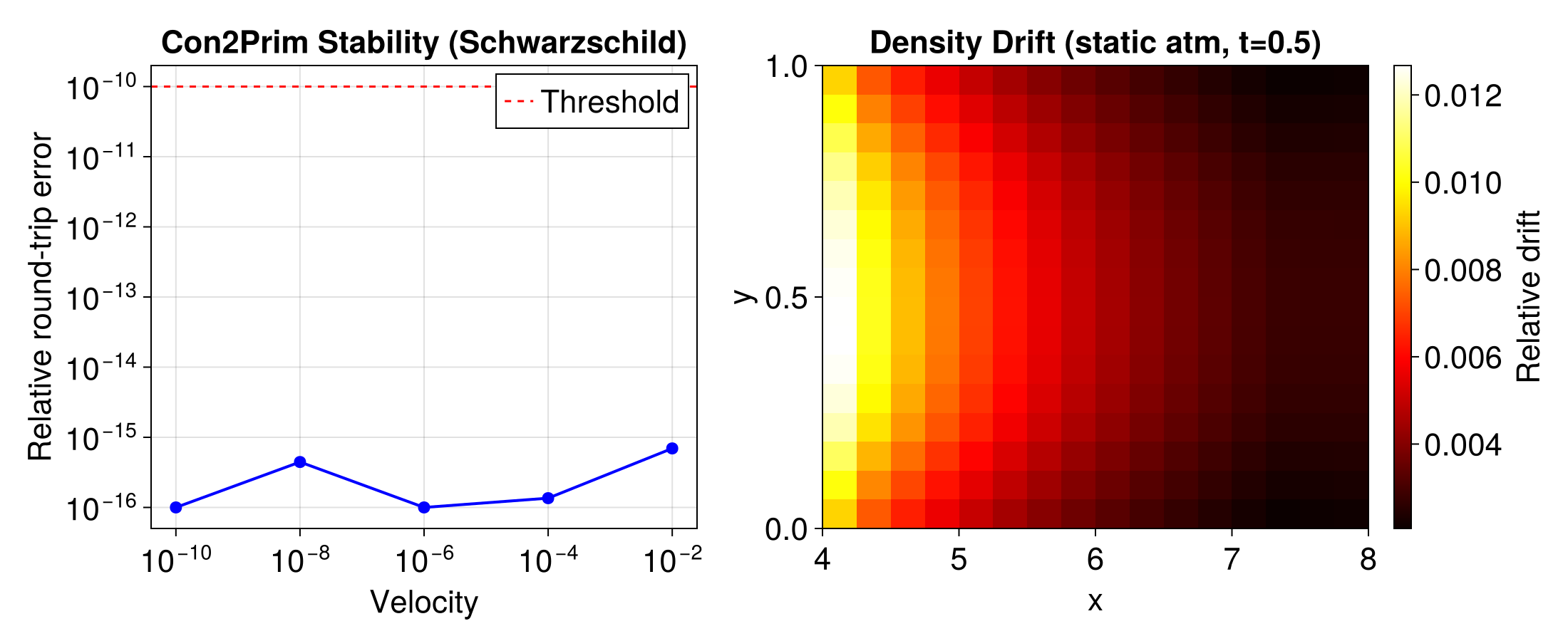

Visualisation

fig = Figure(fontsize = 22, size = (1100, 450))
ax1 = Axis(
    fig[1, 1], xlabel = "Velocity", ylabel = "Relative round-trip error",
    xscale = log10, yscale = log10,
    title = "Con2Prim Stability (Schwarzschild)",
)
scatterlines!(
    ax1, velocities, max.(roundtrip_errors, 1.0e-16),
    color = :blue, marker = :circle, linewidth = 2, markersize = 12,
)
hlines!(ax1, [1.0e-10], color = :red, linestyle = :dash, linewidth = 1.5, label = "Threshold")
axislegend(ax1, position = :rt)

ax2 = Axis(
    fig[1, 2], xlabel = "x", ylabel = "y",
    title = "Density Drift (static atm, t=$(round(t_atm, digits = 2)))",
)
drift_map = [
    abs(conserved_to_primitive(law_atm, U_atm[ix, iy])[1] - rho_atm) / rho_atm
        for ix in 1:N_atm, iy in 1:N_atm
]
xc = [coords_atm[i, 1][1] for i in 1:N_atm]
yc = [coords_atm[1, j][2] for j in 1:N_atm]
hm = heatmap!(ax2, xc, yc, drift_map, colormap = :hot)
Colorbar(fig[1, 3], hm, label = "Relative drift")
resize_to_layout!(fig)
fig

Test Assertions

Con2Prim should converge for all tested velocities. Static atmosphere drift should be small.

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using FiniteVolumeMethod
using StaticArrays
using CairoMakie

gamma = 5.0 / 3.0
eos = IdealGasEOS(gamma)

M = 1.0
metric_s = SchwarzschildMetric(M; r_min = 3.0)
law_s = GRMHDEquations{2}(eos, metric_s)

velocities = [1.0e-2, 1.0e-4, 1.0e-6, 1.0e-8, 1.0e-10]
roundtrip_errors = Float64[]

for v in velocities
    w = SVector(1.0, v, 0.0, 0.0, 1.0, 0.1, 0.0, 0.0)
    u = primitive_to_conserved(law_s, w)
    w_rec = conserved_to_primitive(law_s, u)
    err = maximum(abs.(w_rec .- w) ./ (abs.(w) .+ 1.0e-15))
    push!(roundtrip_errors, err)
end

metric_atm = SchwarzschildMetric(1.0; r_min = 4.0)
law_atm = GRMHDEquations{2}(eos, metric_atm)

rho_atm = 1.0
P_atm = 1.0
N_atm = 16
t_final_atm = 0.5

function static_atm_ic(x, y)
    return SVector(rho_atm, 0.0, 0.0, 0.0, P_atm, 0.0, 0.0, 0.0)
end

mesh_atm = StructuredMesh2D(4.0, 8.0, 0.0, 1.0, N_atm, N_atm)
prob_atm = HyperbolicProblem2D(
    law_atm, mesh_atm, HLLSolver(), CellCenteredMUSCL(MinmodLimiter()),
    TransmissiveBC(), TransmissiveBC(),
    PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
    static_atm_ic; final_time = t_final_atm, cfl = 0.2,
)
coords_atm, U_atm, t_atm, _ = solve_hyperbolic(prob_atm; vector_potential = nothing)

# Compute maximum density drift
max_drift = 0.0
for iy in 1:N_atm, ix in 1:N_atm
    w = conserved_to_primitive(law_atm, U_atm[ix, iy])
    drift = abs(w[1] - rho_atm) / rho_atm
    global max_drift = max(max_drift, drift)
end

fig = Figure(fontsize = 22, size = (1100, 450))
ax1 = Axis(
    fig[1, 1], xlabel = "Velocity", ylabel = "Relative round-trip error",
    xscale = log10, yscale = log10,
    title = "Con2Prim Stability (Schwarzschild)",
)
scatterlines!(
    ax1, velocities, max.(roundtrip_errors, 1.0e-16),
    color = :blue, marker = :circle, linewidth = 2, markersize = 12,
)
hlines!(ax1, [1.0e-10], color = :red, linestyle = :dash, linewidth = 1.5, label = "Threshold")
axislegend(ax1, position = :rt)

ax2 = Axis(
    fig[1, 2], xlabel = "x", ylabel = "y",
    title = "Density Drift (static atm, t=$(round(t_atm, digits = 2)))",
)
drift_map = [
    abs(conserved_to_primitive(law_atm, U_atm[ix, iy])[1] - rho_atm) / rho_atm
        for ix in 1:N_atm, iy in 1:N_atm
]
xc = [coords_atm[i, 1][1] for i in 1:N_atm]
yc = [coords_atm[1, j][2] for j in 1:N_atm]
hm = heatmap!(ax2, xc, yc, drift_map, colormap = :hot)
Colorbar(fig[1, 3], hm, label = "Relative drift")
resize_to_layout!(fig)
fig

This page was generated using Literate.jl.
