GRMHD Minkowski Limit Convergence

This example verifies that the GRMHD solver reproduces special-relativistic results when using a Minkowski metric, and measures convergence on a smooth density wave.

Mathematical Setup

We solve the 2D GRMHD equations with a MinkowskiMetric (flat spacetime), which should reproduce SRMHD results exactly. The test uses a smooth density perturbation advected by uniform flow:

\[\rho = 1 + 0.01\sin(2\pi x), \quad v_x = 0.3, \quad P = 1\]

with constant $B_x = 0.5$ and $B_y = B_z = 0$.

Reference

• Del Zanna, L. et al. (2007). ECHO: a Eulerian conservative high-order scheme for general relativistic MHD. A&A, 473, 11-30.

using FiniteVolumeMethod
using StaticArrays
using CairoMakie

gamma = 5.0 / 3.0
eos = IdealGasEOS(gamma)
metric = MinkowskiMetric{2}()
law = GRMHDEquations{2}(eos, metric)

amp = 0.01
vx0 = 0.3
Bx0 = 0.5
rho0 = 1.0
P0 = 1.0
t_final = 0.5

function grmhd_ic(x, y)
    rho = rho0 + amp * sin(2 * pi * x)
    return SVector(rho, vx0, 0.0, 0.0, P0, Bx0, 0.0, 0.0)
end

grmhd_ic (generic function with 1 method)

Convergence Measurement

function compute_grmhd_error(N)
    mesh = StructuredMesh2D(0.0, 1.0, 0.0, 1.0, N, 4)
    prob = HyperbolicProblem2D(
        law, mesh, HLLSolver(), CellCenteredMUSCL(MinmodLimiter()),
        PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
        PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
        grmhd_ic; final_time = t_final, cfl = 0.25,
    )
    coords, U, t_end, _ = solve_hyperbolic(prob; vector_potential = nothing)
    nx = N
    err = 0.0
    for ix in 1:nx
        x = coords[ix, 1][1]
        x_shifted = mod(x - vx0 * t_end, 1.0)
        rho_exact = rho0 + amp * sin(2 * pi * x_shifted)
        rho_num = conserved_to_primitive(law, U[ix, 1])[1]
        err += abs(rho_num - rho_exact)
    end
    return err / nx
end

resolutions = [16, 32, 64, 128]
errors = [compute_grmhd_error(N) for N in resolutions]

4-element Vector{Float64}:
 0.0005905692303506752
 0.0002480780884735502
 7.320288507187654e-5
 1.9994784000470188e-5

Convergence Rates

function convergence_rates(errs)
    return [log2(errs[i] / errs[i + 1]) for i in 1:(length(errs) - 1)]
end

rates = convergence_rates(errors)

3-element Vector{Float64}:
 1.2513118769462628
 1.7608219004128065
 1.8722768130271457

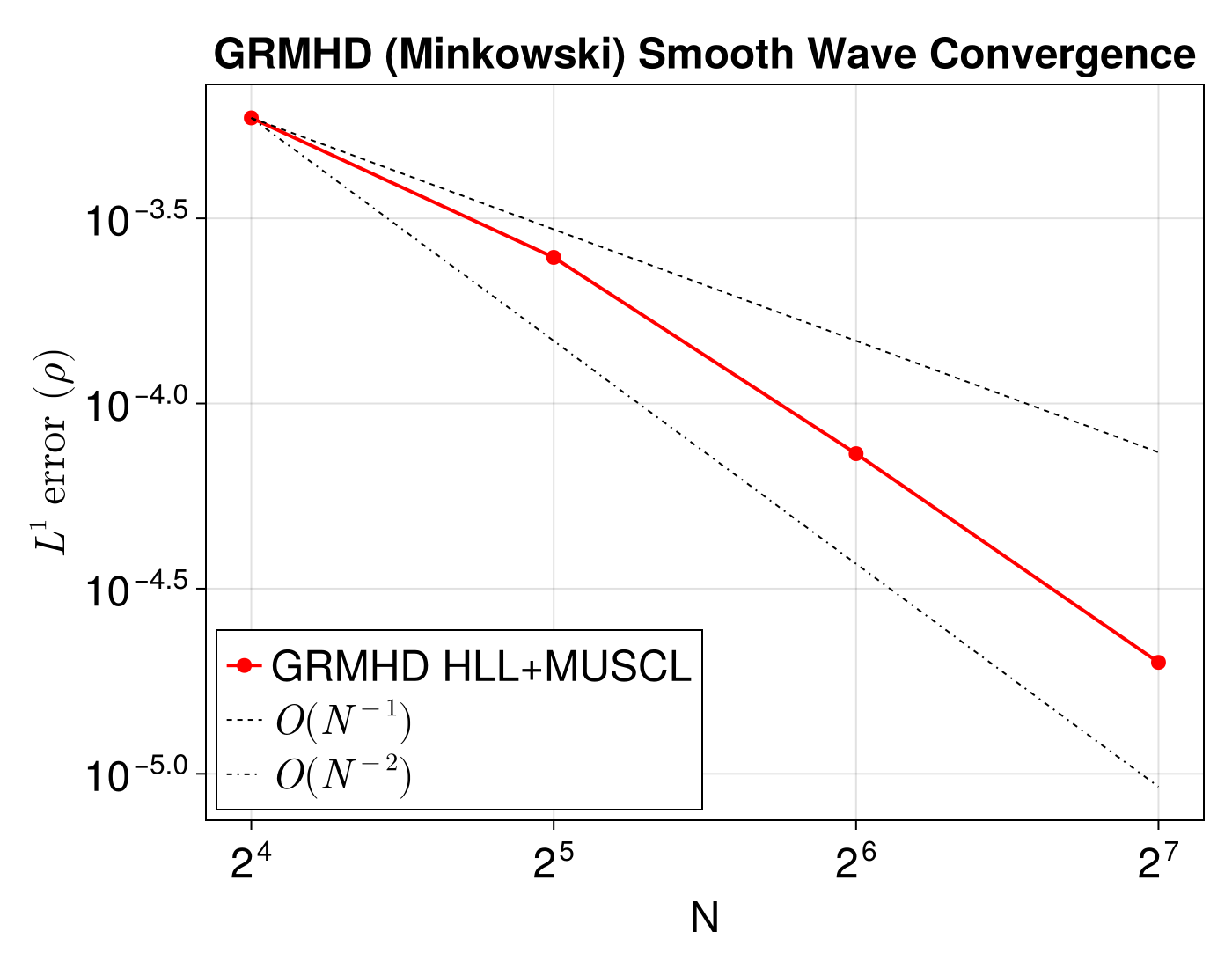

Visualisation — Convergence Plot

fig = Figure(fontsize = 24, size = (700, 550))
ax = Axis(
    fig[1, 1], xlabel = "N", ylabel = L"L^1 \text{ error } (\rho)",
    xscale = log2, yscale = log10,
    title = "GRMHD (Minkowski) Smooth Wave Convergence",
)
scatterlines!(ax, resolutions, errors, color = :red, marker = :circle, linewidth = 2, markersize = 12, label = "GRMHD HLL+MUSCL")
e_ref = errors[1]
N_ref = resolutions[1]
lines!(
    ax, resolutions, e_ref .* (N_ref ./ resolutions) .^ 1,
    color = :black, linestyle = :dash, linewidth = 1, label = L"O(N^{-1})",
)
lines!(
    ax, resolutions, e_ref .* (N_ref ./ resolutions) .^ 2,
    color = :black, linestyle = :dashdot, linewidth = 1, label = L"O(N^{-2})",
)
axislegend(ax, position = :lb)
resize_to_layout!(fig)
fig

Test Assertions

With MUSCL reconstruction, expect at least first-order convergence. The Minkowski limit should not degrade accuracy relative to SRMHD.

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using FiniteVolumeMethod
using StaticArrays
using CairoMakie

gamma = 5.0 / 3.0
eos = IdealGasEOS(gamma)
metric = MinkowskiMetric{2}()
law = GRMHDEquations{2}(eos, metric)

amp = 0.01
vx0 = 0.3
Bx0 = 0.5
rho0 = 1.0
P0 = 1.0
t_final = 0.5

function grmhd_ic(x, y)
    rho = rho0 + amp * sin(2 * pi * x)
    return SVector(rho, vx0, 0.0, 0.0, P0, Bx0, 0.0, 0.0)
end

function compute_grmhd_error(N)
    mesh = StructuredMesh2D(0.0, 1.0, 0.0, 1.0, N, 4)
    prob = HyperbolicProblem2D(
        law, mesh, HLLSolver(), CellCenteredMUSCL(MinmodLimiter()),
        PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
        PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
        grmhd_ic; final_time = t_final, cfl = 0.25,
    )
    coords, U, t_end, _ = solve_hyperbolic(prob; vector_potential = nothing)
    nx = N
    err = 0.0
    for ix in 1:nx
        x = coords[ix, 1][1]
        x_shifted = mod(x - vx0 * t_end, 1.0)
        rho_exact = rho0 + amp * sin(2 * pi * x_shifted)
        rho_num = conserved_to_primitive(law, U[ix, 1])[1]
        err += abs(rho_num - rho_exact)
    end
    return err / nx
end

resolutions = [16, 32, 64, 128]
errors = [compute_grmhd_error(N) for N in resolutions]

function convergence_rates(errs)
    return [log2(errs[i] / errs[i + 1]) for i in 1:(length(errs) - 1)]
end

rates = convergence_rates(errors)

fig = Figure(fontsize = 24, size = (700, 550))
ax = Axis(
    fig[1, 1], xlabel = "N", ylabel = L"L^1 \text{ error } (\rho)",
    xscale = log2, yscale = log10,
    title = "GRMHD (Minkowski) Smooth Wave Convergence",
)
scatterlines!(ax, resolutions, errors, color = :red, marker = :circle, linewidth = 2, markersize = 12, label = "GRMHD HLL+MUSCL")
e_ref = errors[1]
N_ref = resolutions[1]
lines!(
    ax, resolutions, e_ref .* (N_ref ./ resolutions) .^ 1,
    color = :black, linestyle = :dash, linewidth = 1, label = L"O(N^{-1})",
)
lines!(
    ax, resolutions, e_ref .* (N_ref ./ resolutions) .^ 2,
    color = :black, linestyle = :dashdot, linewidth = 1, label = L"O(N^{-2})",
)
axislegend(ax, position = :lb)
resize_to_layout!(fig)
fig
