GRMHD Asymptotic Flat-Space Verification

This example verifies the asymptotic reduction from GRMHD to SRMHD in flat spacetime (Minkowski metric). Two checks are performed:

  1. Flux consistency: The GRMHD physical flux with MinkowskiMetric must match the SRMHD physical flux to machine precision for a comprehensive set of primitive states.
  2. Con2Prim round-trip: Converting primitive -> conserved -> primitive must recover the original state for both GRMHD and SRMHD.

No PDE is solved – this is a pure algebraic verification of the GRMHD -> SRMHD asymptotic limit (tier-1 reduction in the V&V hierarchy).

Reference

  • Del Zanna, L. et al. (2007). ECHO: a Eulerian conservative high-order scheme for general relativistic MHD. A&A, 473, 11-30.
  • Rezzolla, L. & Zanotti, O. (2013). Relativistic Hydrodynamics. Oxford University Press.
using FiniteVolumeMethod
using StaticArrays
using CairoMakie

gamma = 5.0 / 3.0
eos = IdealGasEOS(gamma)
metric = MinkowskiMetric{2}()
grmhd = GRMHDEquations{2}(eos, metric)
srmhd = SRMHDEquations{1}(eos)
SRMHDEquations{1, IdealGasEOS{Float64}}(IdealGasEOS{Float64}(1.6666666666666667), 1.0e-12, 50)

Comprehensive State Set

We test across a wide range of physical regimes: low/high velocity, low/high magnetic field, and combinations thereof.

test_states = [
    # (label, [rho, vx, vy, vz, P, Bx, By, Bz])
    ("rest", SVector(1.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0)),
    ("low-v", SVector(1.0, 0.01, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0)),
    ("moderate-v", SVector(1.0, 0.5, 0.2, 0.0, 1.0, 0.0, 0.0, 0.0)),
    ("high-v", SVector(1.0, 0.9, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0)),
    ("low-B", SVector(1.0, 0.3, 0.0, 0.0, 1.0, 0.01, 0.01, 0.0)),
    ("moderate-B", SVector(1.0, 0.3, 0.0, 0.0, 1.0, 1.0, 0.5, 0.0)),
    ("high-B", SVector(1.0, 0.3, 0.0, 0.0, 1.0, 5.0, 3.0, 0.0)),
    ("high-v high-B", SVector(1.0, 0.8, 0.3, 0.0, 1.0, 2.0, 1.0, 0.5)),
    ("low-rho", SVector(0.001, 0.5, 0.0, 0.0, 0.01, 0.1, 0.0, 0.0)),
    ("high-P", SVector(1.0, 0.3, 0.1, 0.0, 100.0, 1.0, 1.0, 0.0)),
]
10-element Vector{Tuple{String, StaticArraysCore.SVector{8, Float64}}}:
 ("rest", [1.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0])
 ("low-v", [1.0, 0.01, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0])
 ("moderate-v", [1.0, 0.5, 0.2, 0.0, 1.0, 0.0, 0.0, 0.0])
 ("high-v", [1.0, 0.9, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0])
 ("low-B", [1.0, 0.3, 0.0, 0.0, 1.0, 0.01, 0.01, 0.0])
 ("moderate-B", [1.0, 0.3, 0.0, 0.0, 1.0, 1.0, 0.5, 0.0])
 ("high-B", [1.0, 0.3, 0.0, 0.0, 1.0, 5.0, 3.0, 0.0])
 ("high-v high-B", [1.0, 0.8, 0.3, 0.0, 1.0, 2.0, 1.0, 0.5])
 ("low-rho", [0.001, 0.5, 0.0, 0.0, 0.01, 0.1, 0.0, 0.0])
 ("high-P", [1.0, 0.3, 0.1, 0.0, 100.0, 1.0, 1.0, 0.0])

Check 1 –- Flux Consistency

The GRMHD physical_flux with Minkowski metric must match SRMHD flux.

max_flux_diff = 0.0
for (label, w) in test_states
    for dir in 1:2
        F_gr = physical_flux(grmhd, w, dir)
        F_sr = physical_flux(srmhd, w, dir)
        diff = maximum(abs.(F_gr .- F_sr))
        global max_flux_diff = max(max_flux_diff, diff)
    end
end

Check 2 –- Con2Prim Round-Trip Consistency

max_roundtrip_diff = 0.0
for (label, w) in test_states
    # GRMHD round-trip
    u_gr = primitive_to_conserved(grmhd, w)
    w_gr = conserved_to_primitive(grmhd, u_gr)
    # SRMHD round-trip
    u_sr = primitive_to_conserved(srmhd, w)
    w_sr = conserved_to_primitive(srmhd, u_sr)
    # Check both recover original
    diff_gr = maximum(abs.(w_gr .- w))
    diff_sr = maximum(abs.(w_sr .- w))
    global max_roundtrip_diff = max(max_roundtrip_diff, diff_gr, diff_sr)
    # Check GRMHD and SRMHD conserved vectors match (in Minkowski)
    u_diff = maximum(abs.(u_gr .- u_sr))
    global max_roundtrip_diff = max(max_roundtrip_diff, u_diff)
end

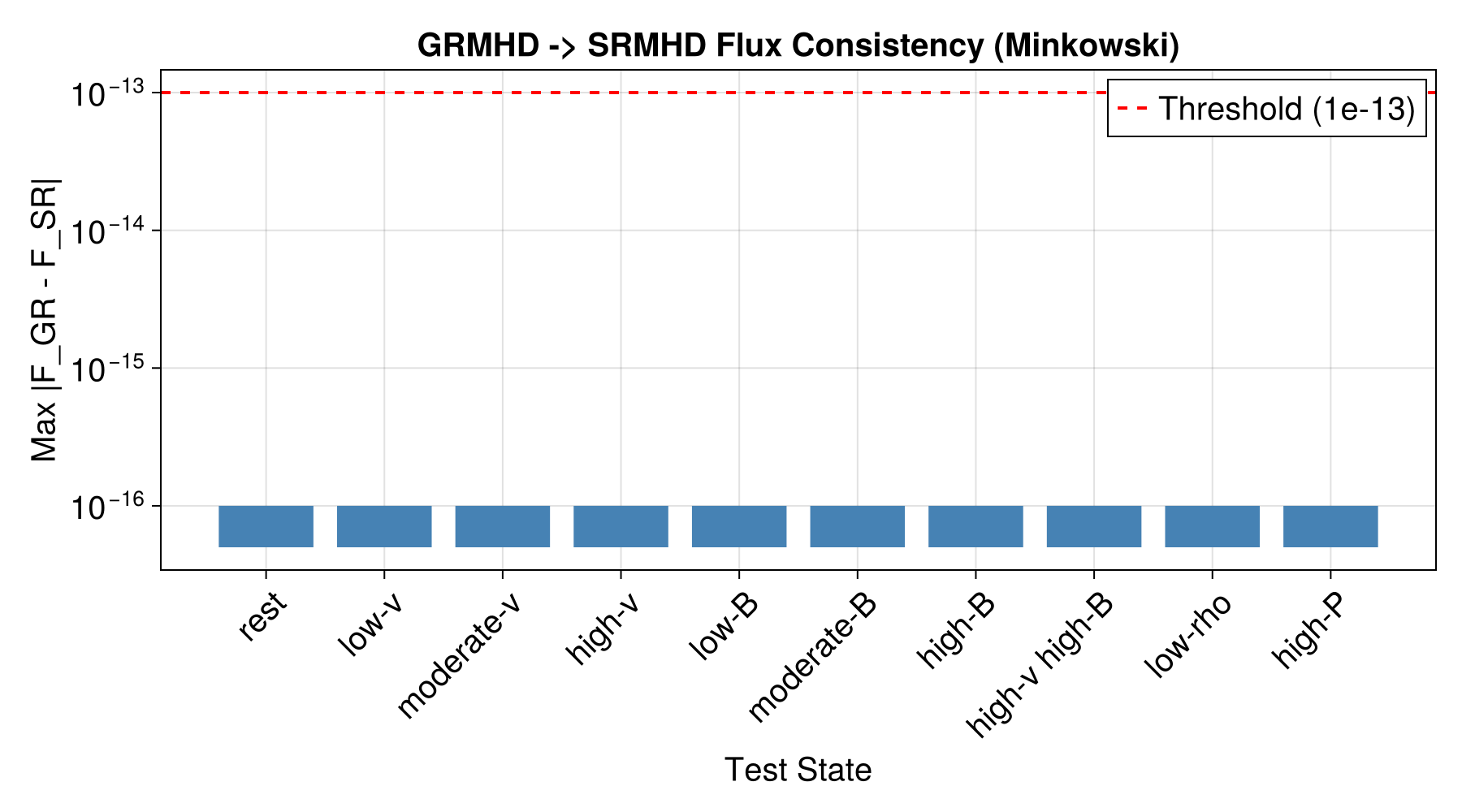

Visualisation –- Error Summary

labels = [s[1] for s in test_states]
flux_diffs = Float64[]
for (label, w) in test_states
    d = 0.0
    for dir in 1:2
        F_gr = physical_flux(grmhd, w, dir)
        F_sr = physical_flux(srmhd, w, dir)
        d = max(d, maximum(abs.(F_gr .- F_sr)))
    end
    push!(flux_diffs, max(d, 1.0e-16))
end

fig = Figure(fontsize = 20, size = (900, 500))
ax = Axis(
    fig[1, 1]; xlabel = "Test State", ylabel = "Max |F_GR - F_SR|",
    yscale = log10, title = "GRMHD -> SRMHD Flux Consistency (Minkowski)",
    xticks = (1:length(labels), labels), xticklabelrotation = pi / 4,
)
barplot!(ax, 1:length(labels), flux_diffs; color = :steelblue)
hlines!(ax, [1.0e-13]; color = :red, linestyle = :dash, linewidth = 2, label = "Threshold (1e-13)")
axislegend(ax; position = :rt)
resize_to_layout!(fig)
fig
Example block output

Test Assertions

if isdefined(@__MODULE__, :record_evidence_result)
    record_evidence_result(
        metrics = Dict(
            "max_flux_diff" => max_flux_diff,
            "max_roundtrip_diff" => max_roundtrip_diff,
            "state_count" => length(test_states),
        ),
        notes = [
            "Invariant-style algebraic reduction check for GRMHD -> SRMHD in Minkowski spacetime.",
            "This evidence entry is the relativistic invariant-stage asymptotic flat-space consistency case.",
        ],
        summary = Dict(
            "test_state_labels" => labels,
            "flux_diffs" => flux_diffs,
            "max_flux_diff" => max_flux_diff,
            "max_roundtrip_diff" => max_roundtrip_diff,
        ),
    )
end

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using FiniteVolumeMethod
using StaticArrays
using CairoMakie

gamma = 5.0 / 3.0
eos = IdealGasEOS(gamma)
metric = MinkowskiMetric{2}()
grmhd = GRMHDEquations{2}(eos, metric)
srmhd = SRMHDEquations{1}(eos)

test_states = [
    # (label, [rho, vx, vy, vz, P, Bx, By, Bz])
    ("rest", SVector(1.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0)),
    ("low-v", SVector(1.0, 0.01, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0)),
    ("moderate-v", SVector(1.0, 0.5, 0.2, 0.0, 1.0, 0.0, 0.0, 0.0)),
    ("high-v", SVector(1.0, 0.9, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0)),
    ("low-B", SVector(1.0, 0.3, 0.0, 0.0, 1.0, 0.01, 0.01, 0.0)),
    ("moderate-B", SVector(1.0, 0.3, 0.0, 0.0, 1.0, 1.0, 0.5, 0.0)),
    ("high-B", SVector(1.0, 0.3, 0.0, 0.0, 1.0, 5.0, 3.0, 0.0)),
    ("high-v high-B", SVector(1.0, 0.8, 0.3, 0.0, 1.0, 2.0, 1.0, 0.5)),
    ("low-rho", SVector(0.001, 0.5, 0.0, 0.0, 0.01, 0.1, 0.0, 0.0)),
    ("high-P", SVector(1.0, 0.3, 0.1, 0.0, 100.0, 1.0, 1.0, 0.0)),
]

max_flux_diff = 0.0
for (label, w) in test_states
    for dir in 1:2
        F_gr = physical_flux(grmhd, w, dir)
        F_sr = physical_flux(srmhd, w, dir)
        diff = maximum(abs.(F_gr .- F_sr))
        global max_flux_diff = max(max_flux_diff, diff)
    end
end

max_roundtrip_diff = 0.0
for (label, w) in test_states
    # GRMHD round-trip
    u_gr = primitive_to_conserved(grmhd, w)
    w_gr = conserved_to_primitive(grmhd, u_gr)
    # SRMHD round-trip
    u_sr = primitive_to_conserved(srmhd, w)
    w_sr = conserved_to_primitive(srmhd, u_sr)
    # Check both recover original
    diff_gr = maximum(abs.(w_gr .- w))
    diff_sr = maximum(abs.(w_sr .- w))
    global max_roundtrip_diff = max(max_roundtrip_diff, diff_gr, diff_sr)
    # Check GRMHD and SRMHD conserved vectors match (in Minkowski)
    u_diff = maximum(abs.(u_gr .- u_sr))
    global max_roundtrip_diff = max(max_roundtrip_diff, u_diff)
end

labels = [s[1] for s in test_states]
flux_diffs = Float64[]
for (label, w) in test_states
    d = 0.0
    for dir in 1:2
        F_gr = physical_flux(grmhd, w, dir)
        F_sr = physical_flux(srmhd, w, dir)
        d = max(d, maximum(abs.(F_gr .- F_sr)))
    end
    push!(flux_diffs, max(d, 1.0e-16))
end

fig = Figure(fontsize = 20, size = (900, 500))
ax = Axis(
    fig[1, 1]; xlabel = "Test State", ylabel = "Max |F_GR - F_SR|",
    yscale = log10, title = "GRMHD -> SRMHD Flux Consistency (Minkowski)",
    xticks = (1:length(labels), labels), xticklabelrotation = pi / 4,
)
barplot!(ax, 1:length(labels), flux_diffs; color = :steelblue)
hlines!(ax, [1.0e-13]; color = :red, linestyle = :dash, linewidth = 2, label = "Threshold (1e-13)")
axislegend(ax; position = :rt)
resize_to_layout!(fig)
fig


if isdefined(@__MODULE__, :record_evidence_result)
    record_evidence_result(
        metrics = Dict(
            "max_flux_diff" => max_flux_diff,
            "max_roundtrip_diff" => max_roundtrip_diff,
            "state_count" => length(test_states),
        ),
        notes = [
            "Invariant-style algebraic reduction check for GRMHD -> SRMHD in Minkowski spacetime.",
            "This evidence entry is the relativistic invariant-stage asymptotic flat-space consistency case.",
        ],
        summary = Dict(
            "test_state_labels" => labels,
            "flux_diffs" => flux_diffs,
            "max_flux_diff" => max_flux_diff,
            "max_roundtrip_diff" => max_roundtrip_diff,
        ),
    )
end
