AMR Smooth-Pulse Convergence

This example verifies the 2D AMR semidiscrete solve path on a fixed hierarchy. A compact smooth entropy pulse is transported across the domain by a uniform background velocity and compared against the exact solution after a short time. The hierarchy is constructed once from the initial condition and then frozen so the measured error reflects the AMR finite-volume update itself rather than dynamic regridding effects.

Mathematical Setup

We solve the 2D Euler equations on $[0,1]^2$ with

\[\rho(x,y,t) = 1 + A\exp\left(-\frac{(x-x_c-v_x t)^2 + (y-y_c-v_y t)^2}{2\sigma^2}\right), \quad (v_x, v_y) = (0.25, 0.15), \quad P = 1,\]

where $A = 0.35$, $\sigma = 0.08$, and $(x_c, y_c) = (0.35, 0.40)$.

Reference

• Berger, M.J. & Colella, P. (1989). Local Adaptive Mesh Refinement for Shock Hydrodynamics. Journal of Computational Physics, 82, 64-84.

using CairoMakie

amr_common_path = joinpath(@__DIR__, "amr_common.jl")
isfile(amr_common_path) || (amr_common_path = joinpath(@__DIR__, "..", "literate_verification", "amr_common.jl"))
include(amr_common_path)

base_cells = [8, 16, 32]
results = [fixed_hierarchy_exact_error(base; max_level = 1) for base in base_cells]
errors = [result.density_error for result in results]
rates = [log2(errors[i] / errors[i + 1]) for i in 1:(length(errors) - 1)]
active_cells = [result.active_cells for result in results]

fig = Figure(fontsize = 24, size = (750, 500))
ax = Axis(
    fig[1, 1],
    xlabel = "Base block cells per side",
    ylabel = L"L^1(\rho) \text{ error}",
    xscale = log2,
    yscale = log10,

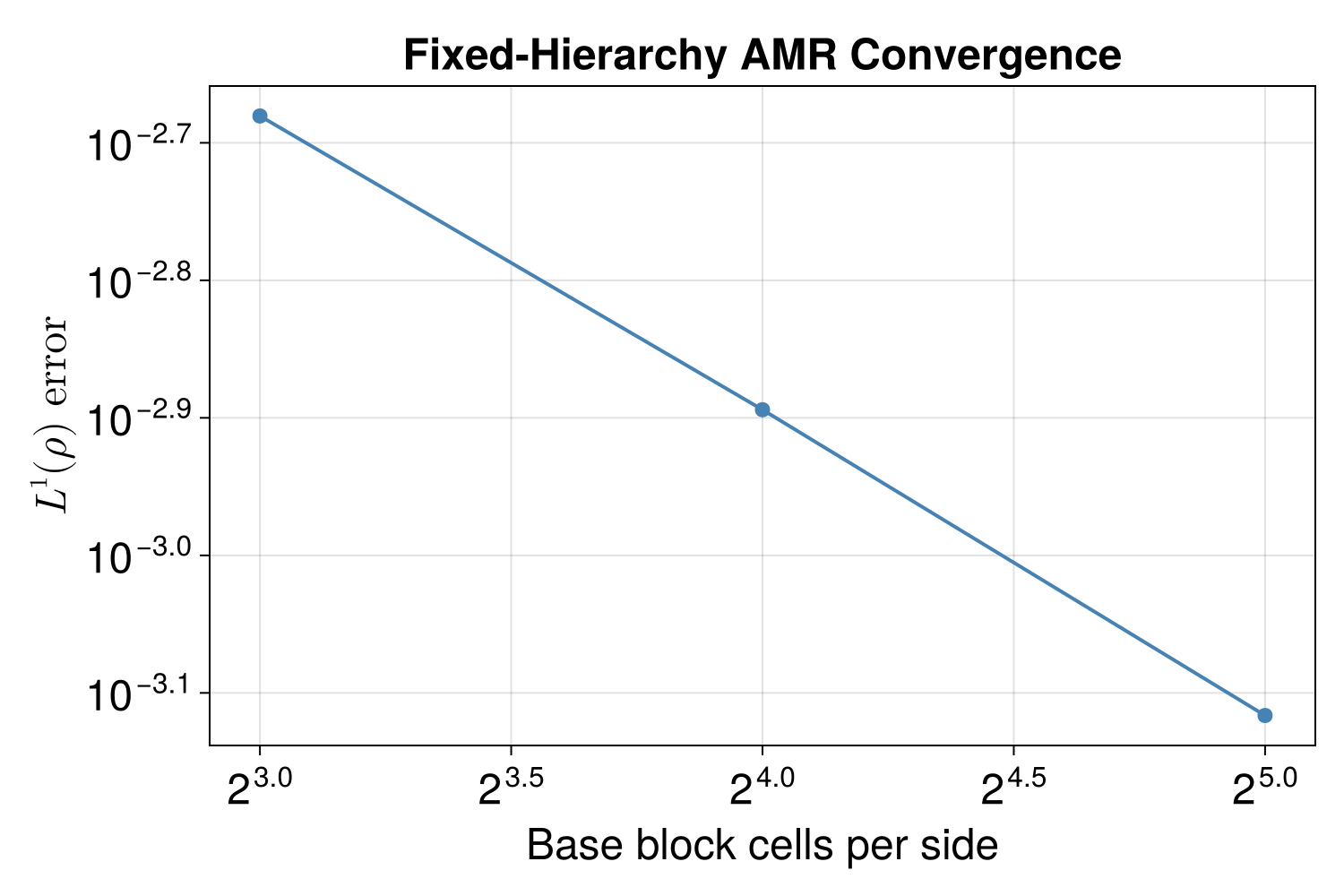

    title = "Fixed-Hierarchy AMR Convergence",
)
scatterlines!(
    ax,
    base_cells,
    errors;
    color = :steelblue,
    marker = :circle,
    linewidth = 2,
    markersize = 12,
)
resize_to_layout!(fig)
fig

Test Assertions

The fixed-hierarchy AMR solve should complete successfully, the error should decrease monotonically, and the observed rates should be comfortably positive.

if isdefined(@__MODULE__, :record_evidence_result)
    record_evidence_result(
        metrics = Dict(
            "density_errors" => errors,
            "density_rates" => rates,
            "finest_density_error" => errors[end],
            "active_cells" => active_cells,
        ),
        artifacts = ["amr_convergence.png"],
        notes = [
            "Canonical fixed-hierarchy AMR execution via sciml_problem(prob) and solve(prob, SSPRK33()).",
            "Regridding is disabled after the initial hierarchy construction so the measured error isolates the semidiscrete AMR update.",
        ],
        summary = Dict(
            "base_cells" => base_cells,
            "active_cells" => active_cells,
            "density_errors" => errors,
            "density_rates" => rates,
        ),
    )
end
