Two-Fluid Plasma Sod Shock Tube

The two-fluid model treats ions and electrons as separate compressible fluids. Each species evolves under its own Euler equations; coupling (Lorentz force) is applied via source terms. In this tutorial we use a symmetric setup with equal mass ratio ($m_i = m_e$) so that both species produce identical Sod shock tube solutions.

Problem Setup

The 1D two-fluid system has 6 conserved variables: $U = [\rho_i, \rho_i v_i, E_i, \rho_e, \rho_e v_e, E_e]$

Initial conditions (primitive $[\rho_i, v_i, P_i, \rho_e, v_e, P_e]$):

\[W = \begin{cases}[1, 0, 1, 1, 0, 1] & x < 0.5,\\[0.125, 0, 0.1, 0.125, 0, 0.1] & x \geq 0.5.\end{cases}\]

We begin by loading the package and defining the conservation law.

using FiniteVolumeMethod
using StaticArrays

eos = IdealGasEOS(1.4)
law = TwoFluidEquations{1}(eos, eos; mass_ratio = 1.0)

TwoFluidEquations{1, IdealGasEOS{Float64}}(IdealGasEOS{Float64}(1.4), IdealGasEOS{Float64}(1.4), 1.0, -1.0)

Define left and right primitive states:

wL = SVector(1.0, 0.0, 1.0, 1.0, 0.0, 1.0)
wR = SVector(0.125, 0.0, 0.1, 0.125, 0.0, 0.1)

6-element StaticArraysCore.SVector{6, Float64} with indices SOneTo(6):
 0.125
 0.0
 0.1
 0.125
 0.0
 0.1

Set up the mesh and solver:

N = 200
mesh = StructuredMesh1D(0.0, 1.0, N)

ic(x) = x < 0.5 ? wL : wR

ic (generic function with 1 method)

Solving with Lax-Friedrichs

We use the global Lax-Friedrichs solver (the most diffusive but most robust option) with first-order reconstruction.

prob = HyperbolicProblem(
    law, mesh, LaxFriedrichsSolver(), NoReconstruction(),
    TransmissiveBC(), TransmissiveBC(), ic;
    final_time = 0.2, cfl = 0.4,
)
x, U, t = solve_hyperbolic(prob)

200-element Vector{Float64}:
 0.0025
 0.0075
 0.0125
 0.0175
 0.0225
 ⋮
 0.9775
 0.9825
 0.9875
 0.9925
 0.9975

Visualisation

Extract primitive variables for each species.

using CairoMakie

W = to_primitive(law, U)
rho_i = [W[i][1] for i in eachindex(W)]
v_i = [W[i][2] for i in eachindex(W)]
rho_e = [W[i][4] for i in eachindex(W)]
v_e = [W[i][5] for i in eachindex(W)]

fig = Figure(fontsize = 24, size = (1200, 800))
ax1 = Axis(fig[1, 1], xlabel = "x", ylabel = L"\rho_i", title = "Ion Density")
ax2 = Axis(fig[1, 2], xlabel = "x", ylabel = L"v_i", title = "Ion Velocity")
ax3 = Axis(fig[2, 1], xlabel = "x", ylabel = L"\rho_e", title = "Electron Density")
ax4 = Axis(fig[2, 2], xlabel = "x", ylabel = L"v_e", title = "Electron Velocity")
scatter!(ax1, x, rho_i, color = :blue, markersize = 4)
scatter!(ax2, x, v_i, color = :red, markersize = 4)
scatter!(ax3, x, rho_e, color = :teal, markersize = 4)
scatter!(ax4, x, v_e, color = :orange, markersize = 4)
resize_to_layout!(fig)
fig

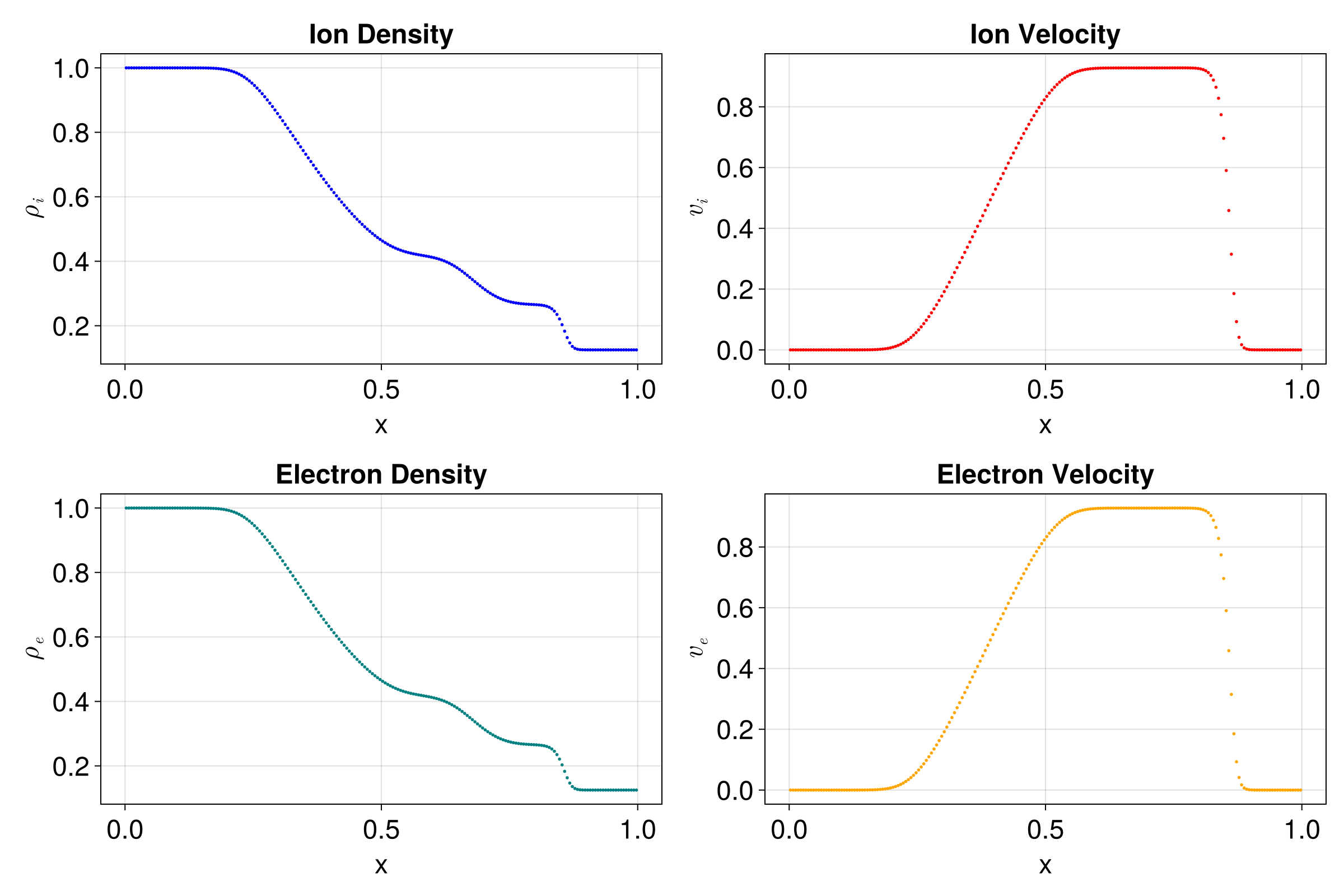

With equal mass ratio and identical initial conditions, both species produce the same Sod solution. In realistic applications the mass ratio would be $m_i / m_e \approx 1836$, leading to very different electron and ion dynamics.

Physical Checks

All densities and pressures must be positive. With identical ICs and no coupling, ion and electron solutions should match.

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using FiniteVolumeMethod
using StaticArrays

eos = IdealGasEOS(1.4)
law = TwoFluidEquations{1}(eos, eos; mass_ratio = 1.0)

wL = SVector(1.0, 0.0, 1.0, 1.0, 0.0, 1.0)
wR = SVector(0.125, 0.0, 0.1, 0.125, 0.0, 0.1)

N = 200
mesh = StructuredMesh1D(0.0, 1.0, N)

ic(x) = x < 0.5 ? wL : wR

prob = HyperbolicProblem(
    law, mesh, LaxFriedrichsSolver(), NoReconstruction(),
    TransmissiveBC(), TransmissiveBC(), ic;
    final_time = 0.2, cfl = 0.4,
)
x, U, t = solve_hyperbolic(prob)

using CairoMakie

W = to_primitive(law, U)
rho_i = [W[i][1] for i in eachindex(W)]
v_i = [W[i][2] for i in eachindex(W)]
rho_e = [W[i][4] for i in eachindex(W)]
v_e = [W[i][5] for i in eachindex(W)]

fig = Figure(fontsize = 24, size = (1200, 800))
ax1 = Axis(fig[1, 1], xlabel = "x", ylabel = L"\rho_i", title = "Ion Density")
ax2 = Axis(fig[1, 2], xlabel = "x", ylabel = L"v_i", title = "Ion Velocity")
ax3 = Axis(fig[2, 1], xlabel = "x", ylabel = L"\rho_e", title = "Electron Density")
ax4 = Axis(fig[2, 2], xlabel = "x", ylabel = L"v_e", title = "Electron Velocity")
scatter!(ax1, x, rho_i, color = :blue, markersize = 4)
scatter!(ax2, x, v_i, color = :red, markersize = 4)
scatter!(ax3, x, rho_e, color = :teal, markersize = 4)
scatter!(ax4, x, v_e, color = :orange, markersize = 4)
resize_to_layout!(fig)
fig
