SRMHD Cylindrical Blast Wave

This tutorial demonstrates the 2D special relativistic MHD (SRMHD) solver on a cylindrical blast wave problem. A high-pressure region is placed at the centre of the domain, driving a relativistic expansion into a magnetised ambient medium. The magnetic field breaks the cylindrical symmetry, producing an elongated shock structure along the field direction.

Problem Setup

The domain is $[-0.5, 0.5]^2$ with transmissive boundaries. A uniform magnetic field $B_x = 0.5$ threads the domain. The initial pressure is $P = 1$ inside a circle of radius $r = 0.1$ and $P = 0.01$ outside.

using FiniteVolumeMethod
using StaticArrays

gamma = 4.0 / 3.0
eos = IdealGasEOS(gamma)
law = SRMHDEquations{2}(eos)

P_in = 1.0
P_out = 0.01
rho0 = 0.01
r_blast = 0.1
Bx0 = 0.5

function blast_ic(x, y)
    r = sqrt(x^2 + y^2)
    P = r < r_blast ? P_in : P_out
    return SVector(rho0, 0.0, 0.0, 0.0, P, Bx0, 0.0, 0.0)
end

blast_ic (generic function with 1 method)

Vector potential for uniform $B_x$:

Az_blast(x, y) = Bx0 * y

Az_blast (generic function with 1 method)

Solving

N = 100
mesh = StructuredMesh2D(-0.5, 0.5, -0.5, 0.5, N, N)

prob = HyperbolicProblem2D(
    law, mesh, HLLSolver(), CellCenteredMUSCL(MinmodLimiter()),
    TransmissiveBC(), TransmissiveBC(),
    TransmissiveBC(), TransmissiveBC(),
    blast_ic; final_time = 0.4, cfl = 0.25
)

coords, U, t_final, ct = solve_hyperbolic(prob; vector_potential = Az_blast)

100×100 Matrix{Tuple{Float64, Float64}}:
 (-0.495, -0.495)  (-0.495, -0.485)  …  (-0.495, 0.485)  (-0.495, 0.495)
 (-0.485, -0.495)  (-0.485, -0.485)     (-0.485, 0.485)  (-0.485, 0.495)
 (-0.475, -0.495)  (-0.475, -0.485)     (-0.475, 0.485)  (-0.475, 0.495)
 (-0.465, -0.495)  (-0.465, -0.485)     (-0.465, 0.485)  (-0.465, 0.495)
 (-0.455, -0.495)  (-0.455, -0.485)     (-0.455, 0.485)  (-0.455, 0.495)
 ⋮                                   ⋱
 (0.455, -0.495)   (0.455, -0.485)   …  (0.455, 0.485)   (0.455, 0.495)
 (0.465, -0.495)   (0.465, -0.485)      (0.465, 0.485)   (0.465, 0.495)
 (0.475, -0.495)   (0.475, -0.485)      (0.475, 0.485)   (0.475, 0.495)
 (0.485, -0.495)   (0.485, -0.485)      (0.485, 0.485)   (0.485, 0.495)
 (0.495, -0.495)   (0.495, -0.485)      (0.495, 0.485)   (0.495, 0.495)

Divergence Check

divB_max = max_divB(ct, mesh)

true

Visualisation

using CairoMakie

nx, ny = N, N
xc = [coords[i, 1][1] for i in 1:nx]
yc = [coords[1, j][2] for j in 1:ny]

rho = [conserved_to_primitive(law, U[i, j])[1] for i in 1:nx, j in 1:ny]
P = [conserved_to_primitive(law, U[i, j])[5] for i in 1:nx, j in 1:ny]

fig = Figure(fontsize = 20, size = (1000, 500))
ax1 = Axis(
    fig[1, 1], xlabel = "x", ylabel = "y",
    title = "Density at t = $(round(t_final, digits = 3))",
    aspect = DataAspect()
)
hm1 = heatmap!(ax1, xc, yc, rho, colormap = :viridis)
Colorbar(fig[1, 2], hm1)

ax2 = Axis(
    fig[1, 3], xlabel = "x", ylabel = "y",
    title = "Pressure",
    aspect = DataAspect()
)
hm2 = heatmap!(ax2, xc, yc, P, colormap = :inferno)
Colorbar(fig[1, 4], hm2)

resize_to_layout!(fig)
fig

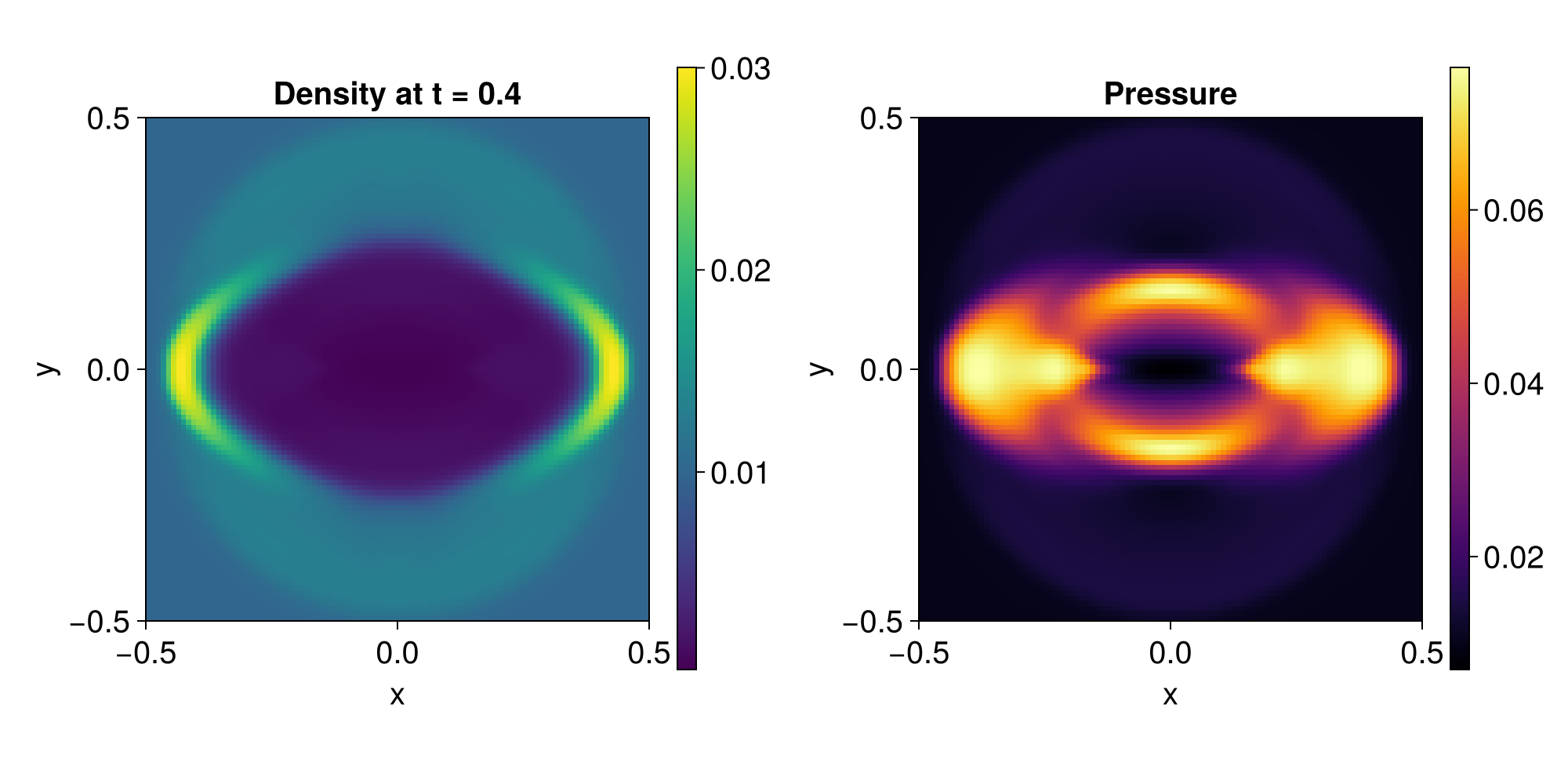

The blast wave is clearly elongated along the $x$-direction due to the uniform $B_x$ field, which channels the expansion. The $\nabla\cdot\vb B$ constraint is maintained at machine precision (|\nabla\cdot\vb B|{\max} = $ $(Expr(:incomplete, Base.Meta.ParseError("ParseError:\n# Error @ none:1:12\n(round(divB\n# └ ── Expected `)` or `,`", Base.JuliaSyntax.ParseError(Base.JuliaSyntax.SourceFile("(round(divB", 0, "none", 1, [1, 12]), Base.JuliaSyntax.Diagnostic[Base.JuliaSyntax.Diagnostic(12, 11, :error, "Expected `)` or `,`"), Base.JuliaSyntax.Diagnostic(12, 11, :error, "Expected `)` or `,`")], :other))))max, sigdigits=2))) thanks to constrained transport.

true

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using FiniteVolumeMethod
using StaticArrays

gamma = 4.0 / 3.0
eos = IdealGasEOS(gamma)
law = SRMHDEquations{2}(eos)

P_in = 1.0
P_out = 0.01
rho0 = 0.01
r_blast = 0.1
Bx0 = 0.5

function blast_ic(x, y)
    r = sqrt(x^2 + y^2)
    P = r < r_blast ? P_in : P_out
    return SVector(rho0, 0.0, 0.0, 0.0, P, Bx0, 0.0, 0.0)
end

Az_blast(x, y) = Bx0 * y

N = 100
mesh = StructuredMesh2D(-0.5, 0.5, -0.5, 0.5, N, N)

prob = HyperbolicProblem2D(
    law, mesh, HLLSolver(), CellCenteredMUSCL(MinmodLimiter()),
    TransmissiveBC(), TransmissiveBC(),
    TransmissiveBC(), TransmissiveBC(),
    blast_ic; final_time = 0.4, cfl = 0.25
)

coords, U, t_final, ct = solve_hyperbolic(prob; vector_potential = Az_blast)

divB_max = max_divB(ct, mesh)

using CairoMakie

nx, ny = N, N
xc = [coords[i, 1][1] for i in 1:nx]
yc = [coords[1, j][2] for j in 1:ny]

rho = [conserved_to_primitive(law, U[i, j])[1] for i in 1:nx, j in 1:ny]
P = [conserved_to_primitive(law, U[i, j])[5] for i in 1:nx, j in 1:ny]

fig = Figure(fontsize = 20, size = (1000, 500))
ax1 = Axis(
    fig[1, 1], xlabel = "x", ylabel = "y",
    title = "Density at t = $(round(t_final, digits = 3))",
    aspect = DataAspect()
)
hm1 = heatmap!(ax1, xc, yc, rho, colormap = :viridis)
Colorbar(fig[1, 2], hm1)

ax2 = Axis(
    fig[1, 3], xlabel = "x", ylabel = "y",
    title = "Pressure",
    aspect = DataAspect()
)
hm2 = heatmap!(ax2, xc, yc, P, colormap = :inferno)
Colorbar(fig[1, 4], hm2)

resize_to_layout!(fig)
fig
