Relativistic Sod Shock Tube (SR Hydro)

The special relativistic Sod problem extends the classical Sod shock tube to relativistic fluid dynamics. It tests the ability of the solver to handle relativistic wave speeds and the iterative conservative-to-primitive (con2prim) recovery.

Problem Setup

The 1D special relativistic hydrodynamics equations conserve $(\rho W, \rho h W^2 v, \rho h W^2 - P - \rho W)$ where $W = 1/\sqrt{1 - v^2}$ is the Lorentz factor and $h$ is the specific enthalpy.

Initial conditions (primitive $[\rho, v, P]$):

\[(\rho, v, P) = \begin{cases}(1, 0, 1) & x < 0.5,\\(0.125, 0, 0.1) & x \geq 0.5.\end{cases}\]

We begin by loading the package and defining the conservation law.

using FiniteVolumeMethod
using StaticArrays

eos = IdealGasEOS(5.0 / 3.0)
law = SRHydroEquations{1}(eos)

SRHydroEquations{1, IdealGasEOS{Float64}}(IdealGasEOS{Float64}(1.6666666666666667), 1.0e-12, 50)

Define left and right primitive states $(\rho, v, P)$:

wL = SVector(1.0, 0.0, 1.0)
wR = SVector(0.125, 0.0, 0.1)

3-element StaticArraysCore.SVector{3, Float64} with indices SOneTo(3):
 0.125
 0.0
 0.1

Set up the mesh and boundary conditions:

N = 400
mesh = StructuredMesh1D(0.0, 1.0, N)

ic(x) = x < 0.5 ? wL : wR

ic (generic function with 1 method)

Solving with HLL

We use the HLL Riemann solver with first-order reconstruction for robustness. The CFL is kept low (0.3) to respect the relativistic signal speeds.

prob = HyperbolicProblem(
    law, mesh, HLLSolver(), NoReconstruction(),
    TransmissiveBC(), TransmissiveBC(), ic;
    final_time = 0.2, cfl = 0.3,
)
x, U, t = solve_hyperbolic(prob)

400-element Vector{Float64}:
 0.00125
 0.00375
 0.00625
 0.00875
 0.01125
 ⋮
 0.98875
 0.9912500000000001
 0.99375
 0.99625
 0.99875

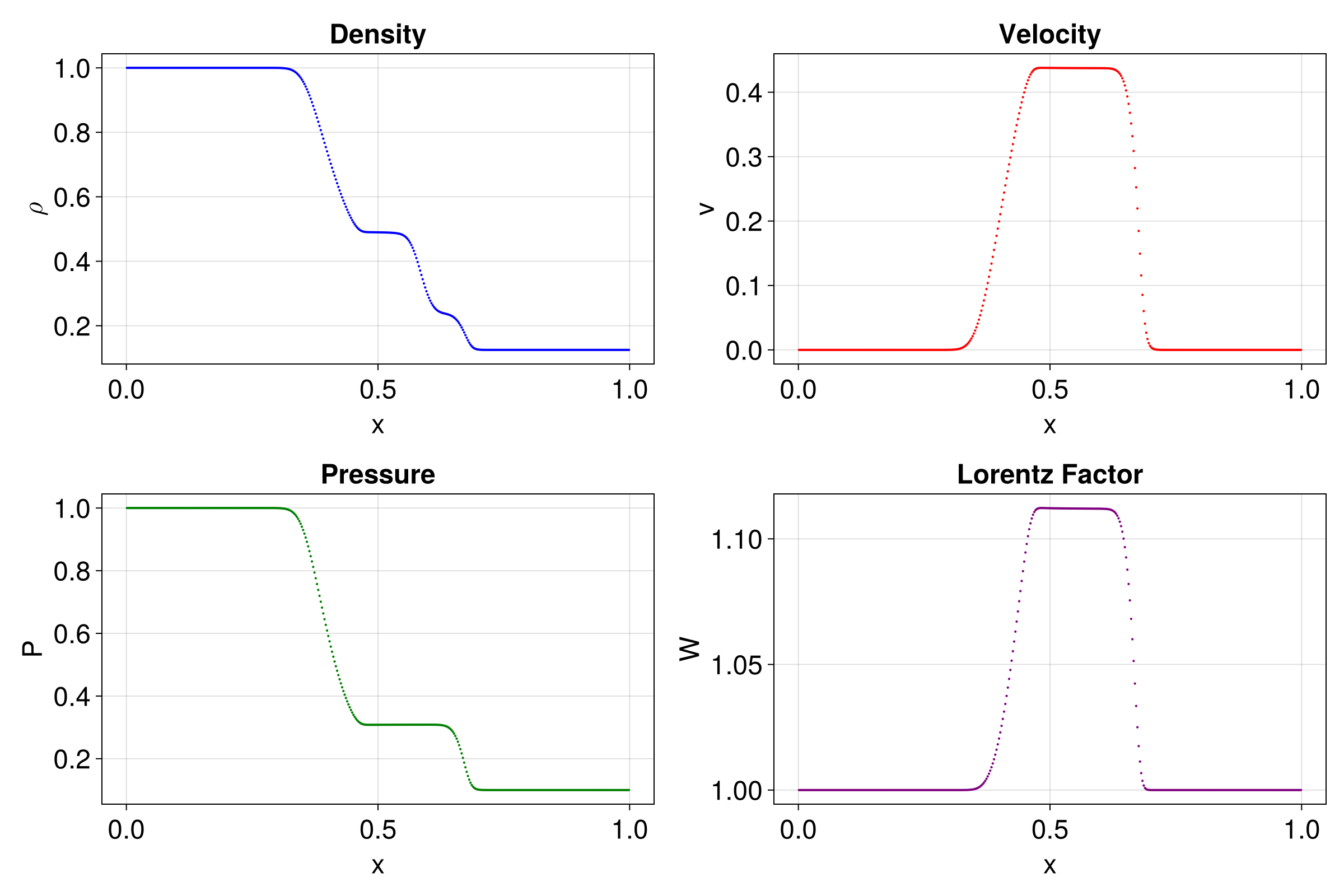

Visualisation

Extract primitive variables and compute the Lorentz factor $W = 1/\sqrt{1 - v^2}$.

using CairoMakie

W_prim = to_primitive(law, U)
rho_vals = [W_prim[i][1] for i in eachindex(W_prim)]
v_vals = [W_prim[i][2] for i in eachindex(W_prim)]
P_vals = [W_prim[i][3] for i in eachindex(W_prim)]
gamma_vals = [1.0 / sqrt(1.0 - W_prim[i][2]^2) for i in eachindex(W_prim)]

fig = Figure(fontsize = 24, size = (1200, 800))
ax1 = Axis(fig[1, 1], xlabel = "x", ylabel = L"\rho", title = "Density")
ax2 = Axis(fig[1, 2], xlabel = "x", ylabel = "v", title = "Velocity")
ax3 = Axis(fig[2, 1], xlabel = "x", ylabel = "P", title = "Pressure")
ax4 = Axis(fig[2, 2], xlabel = "x", ylabel = "W", title = "Lorentz Factor")
scatter!(ax1, x, rho_vals, color = :blue, markersize = 3)
scatter!(ax2, x, v_vals, color = :red, markersize = 3)
scatter!(ax3, x, P_vals, color = :green, markersize = 3)
scatter!(ax4, x, gamma_vals, color = :purple, markersize = 3)
resize_to_layout!(fig)
fig

The wave structure is qualitatively similar to the classical case but the contact discontinuity and shock are compressed toward the right boundary due to relativistic effects.

Physical Checks

Density and pressure must be positive, and all velocities must remain subluminal ($|v| < 1$).

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using FiniteVolumeMethod
using StaticArrays

eos = IdealGasEOS(5.0 / 3.0)
law = SRHydroEquations{1}(eos)

wL = SVector(1.0, 0.0, 1.0)
wR = SVector(0.125, 0.0, 0.1)

N = 400
mesh = StructuredMesh1D(0.0, 1.0, N)

ic(x) = x < 0.5 ? wL : wR

prob = HyperbolicProblem(
    law, mesh, HLLSolver(), NoReconstruction(),
    TransmissiveBC(), TransmissiveBC(), ic;
    final_time = 0.2, cfl = 0.3,
)
x, U, t = solve_hyperbolic(prob)

using CairoMakie

W_prim = to_primitive(law, U)
rho_vals = [W_prim[i][1] for i in eachindex(W_prim)]
v_vals = [W_prim[i][2] for i in eachindex(W_prim)]
P_vals = [W_prim[i][3] for i in eachindex(W_prim)]
gamma_vals = [1.0 / sqrt(1.0 - W_prim[i][2]^2) for i in eachindex(W_prim)]

fig = Figure(fontsize = 24, size = (1200, 800))
ax1 = Axis(fig[1, 1], xlabel = "x", ylabel = L"\rho", title = "Density")
ax2 = Axis(fig[1, 2], xlabel = "x", ylabel = "v", title = "Velocity")
ax3 = Axis(fig[2, 1], xlabel = "x", ylabel = "P", title = "Pressure")
ax4 = Axis(fig[2, 2], xlabel = "x", ylabel = "W", title = "Lorentz Factor")
scatter!(ax1, x, rho_vals, color = :blue, markersize = 3)
scatter!(ax2, x, v_vals, color = :red, markersize = 3)
scatter!(ax3, x, P_vals, color = :green, markersize = 3)
scatter!(ax4, x, gamma_vals, color = :purple, markersize = 3)
resize_to_layout!(fig)
fig
