Sedov Blast Wave

The Sedov blast wave is a 2D point-explosion problem with a known self-similar solution. A concentrated energy release at the origin drives a cylindrical shock wave whose radius evolves as $r_s(t) \propto t^{2/5}$.

Problem Setup

We solve the 2D Euler equations on $[-1, 1]^2$ with transmissive boundary conditions. The initial condition is a uniform density field with a small, high-pressure region near the origin.

using FiniteVolumeMethod
using StaticArrays

gamma = 1.4
eos = IdealGasEOS(gamma)
law = EulerEquations{2}(eos)

N = 50
mesh = StructuredMesh2D(-1.0, 1.0, -1.0, 1.0, N, N)

StructuredMesh2D{Float64}(-1.0, 1.0, -1.0, 1.0, 50, 50, 0.04, 0.04)

The background pressure is very low, with a strong blast in the central cells:

P_bg = 1.0e-5
P_blast = 1.0
r_blast = 3.0 * mesh.dx

function sedov_ic(x, y)
    r = sqrt(x^2 + y^2)
    P = r < r_blast ? P_blast : P_bg
    return SVector(1.0, 0.0, 0.0, P)
end

sedov_ic (generic function with 1 method)

We use transmissive boundary conditions on all four sides:

prob = HyperbolicProblem2D(
    law, mesh, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
    TransmissiveBC(), TransmissiveBC(),
    TransmissiveBC(), TransmissiveBC(),
    sedov_ic; final_time = 0.1, cfl = 0.3
)
coords, U, t_final = solve_hyperbolic(prob)

50×50 Matrix{Tuple{Float64, Float64}}:
 (-0.98, -0.98)  (-0.98, -0.94)  …  (-0.98, 0.94)  (-0.98, 0.98)
 (-0.94, -0.98)  (-0.94, -0.94)     (-0.94, 0.94)  (-0.94, 0.98)
 (-0.9, -0.98)   (-0.9, -0.94)      (-0.9, 0.94)   (-0.9, 0.98)
 (-0.86, -0.98)  (-0.86, -0.94)     (-0.86, 0.94)  (-0.86, 0.98)
 (-0.82, -0.98)  (-0.82, -0.94)     (-0.82, 0.94)  (-0.82, 0.98)
 ⋮                               ⋱
 (0.82, -0.98)   (0.82, -0.94)   …  (0.82, 0.94)   (0.82, 0.98)
 (0.86, -0.98)   (0.86, -0.94)      (0.86, 0.94)   (0.86, 0.98)
 (0.9, -0.98)    (0.9, -0.94)       (0.9, 0.94)    (0.9, 0.98)
 (0.94, -0.98)   (0.94, -0.94)      (0.94, 0.94)   (0.94, 0.98)
 (0.98, -0.98)   (0.98, -0.94)      (0.98, 0.94)   (0.98, 0.98)

Visualisation

We extract the density field and plot it as a 2D heatmap.

using CairoMakie

nx, ny = N, N
xc = [coords[i, 1][1] for i in 1:nx]
yc = [coords[1, j][2] for j in 1:ny]
rho = [conserved_to_primitive(law, U[i, j])[1] for i in 1:nx, j in 1:ny]

fig = Figure(fontsize = 24, size = (1000, 500))
ax1 = Axis(
    fig[1, 1], xlabel = "x", ylabel = "y", title = "Density at t = $(round(t_final, digits = 3))",
    aspect = DataAspect()
)
hm = heatmap!(ax1, xc, yc, rho, colormap = :inferno)
Colorbar(fig[1, 2], hm)

Colorbar()

We also plot the radial density profile to check cylindrical symmetry:

ax2 = Axis(fig[1, 3], xlabel = "r", ylabel = L"\rho", title = "Radial profile")
r_vals = Float64[]
rho_vals = Float64[]
for i in 1:nx, j in 1:ny
    x, y = coords[i, j]
    r = sqrt(x^2 + y^2)
    push!(r_vals, r)
    push!(rho_vals, rho[i, j])
end
scatter!(ax2, r_vals, rho_vals, color = :blue, markersize = 3)
resize_to_layout!(fig)
fig

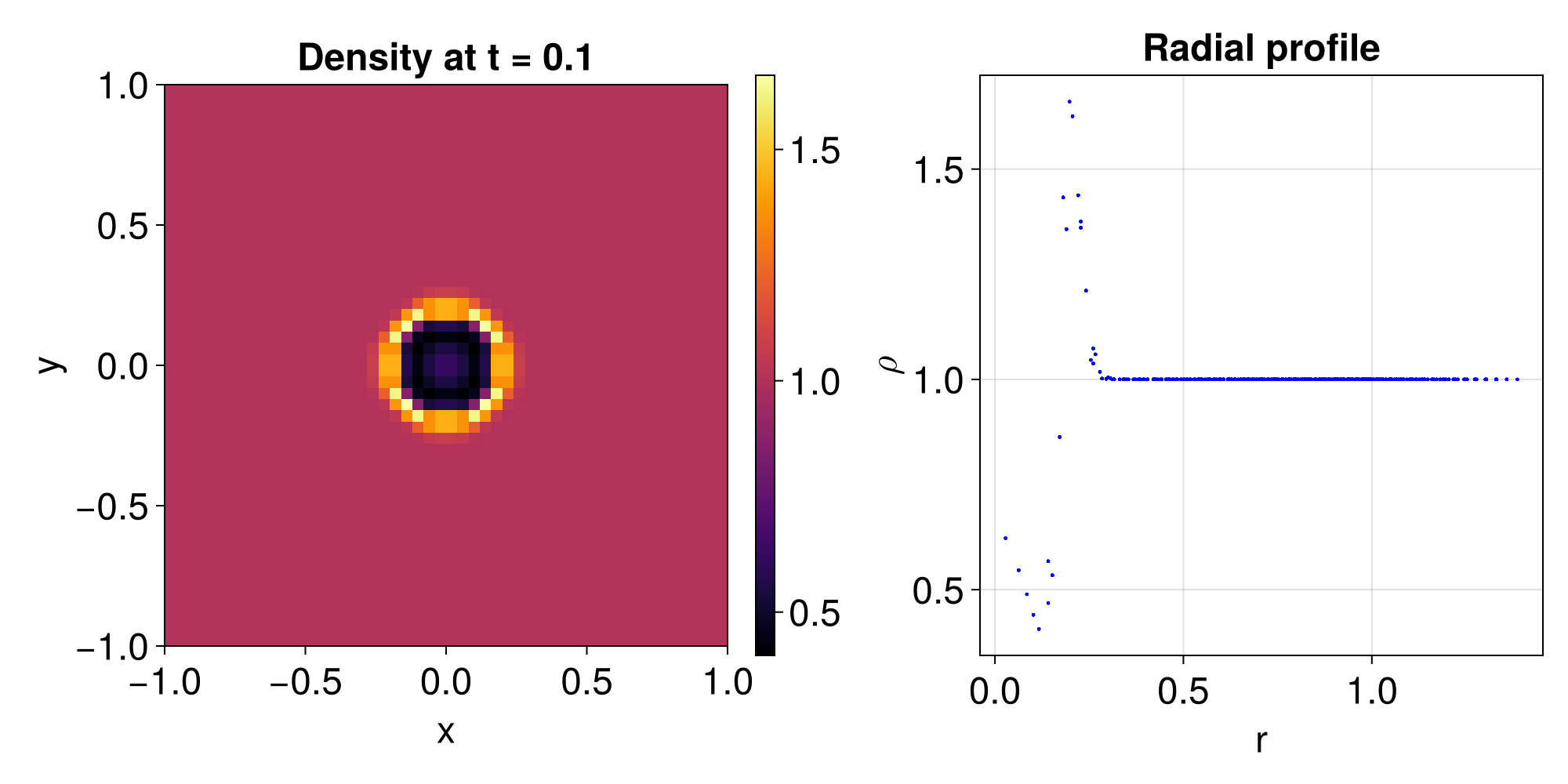

The density profile shows a clear cylindrical shock front with a thin shell of compressed gas. The radial profile confirms the approximate cylindrical symmetry of the solution.

true
