Resistive MHD Current Sheet

This tutorial demonstrates the ResistiveMHDEquations type by setting up a current sheet — a thin layer where the magnetic field reverses direction. In fully resistive MHD this configuration would undergo reconnection on a diffusive time scale $\tau \sim L^2/\eta$.

The solve_hyperbolic solver evolves only the ideal (hyperbolic) MHD part. The resistive terms (resistive_flux_x, ohmic_heating) are provided as standalone utility functions for operator-split or IMEX integration. Here we demonstrate both the ideal evolution and the resistive utility API.

Problem Setup

The 8-variable MHD system is used with a $B_y$ reversal at $x = 0.5$. Uniform density $\rho = 1$, pressure $P = 1$, and $B_x = 0.75$ (a guide field).

using FiniteVolumeMethod
using StaticArrays

eos = IdealGasEOS(5.0 / 3.0)
law = ResistiveMHDEquations{1}(eos; eta = 0.01)

ResistiveMHDEquations{1, IdealGasEOS{Float64}}(IdealGasEOS{Float64}(1.6666666666666667), 0.01)

Initial condition: $B_y$ reverses across the midpoint.

function current_sheet_ic(x)
    rho = 1.0
    vx, vy, vz = 0.0, 0.0, 0.0
    P = 1.0
    Bx = 0.75
    By = x < 0.5 ? 1.0 : -1.0
    Bz = 0.0
    return SVector(rho, vx, vy, vz, P, Bx, By, Bz)
end

N = 200
mesh = StructuredMesh1D(0.0, 1.0, N)

prob = HyperbolicProblem(
    law, mesh, HLLDSolver(), CellCenteredMUSCL(MinmodLimiter()),
    TransmissiveBC(), TransmissiveBC(), current_sheet_ic;
    final_time = 0.1, cfl = 0.4,
)
x, U, t = solve_hyperbolic(prob)

200-element Vector{Float64}:
 0.0025
 0.0075
 0.0125
 0.0175
 0.0225
 ⋮
 0.9775
 0.9825
 0.9875
 0.9925
 0.9975

Computing Current Density and Resistive Heating

The current density $J_z \approx \partial B_y / \partial x$ and Ohmic heating rate $\eta |J|^2$ are computed from the cell data.

W = to_primitive(law, U)
By_vals = [W[i][7] for i in eachindex(W)]
dx = 1.0 / N

# Approximate current density at cell centers via central differences
J_vals = zeros(length(By_vals))
for i in 2:(length(By_vals) - 1)
    J_vals[i] = (By_vals[i + 1] - By_vals[i - 1]) / (2 * dx)
end
J_vals[1] = (By_vals[2] - By_vals[1]) / dx
J_vals[end] = (By_vals[end] - By_vals[end - 1]) / dx

# Ohmic heating rate at each cell
Q_vals = [ohmic_heating(law, J_vals[i]^2) for i in eachindex(J_vals)]

# Demonstrate resistive_flux_x between two adjacent cells
i_mid = N ÷ 2
flux_demo = resistive_flux_x(law, U[i_mid], U[i_mid + 1], dx)

8-element StaticArraysCore.SVector{8, Float64} with indices SOneTo(8):
  0.0
  0.0
  0.0
  0.0
  1.3242965521028307e-7
  0.0
 -0.0036423468664428357
 -0.0

Visualisation

using CairoMakie

fig = Figure(fontsize = 24, size = (1200, 400))
ax1 = Axis(fig[1, 1], xlabel = "x", ylabel = L"B_y", title = "Magnetic Field By")
ax2 = Axis(fig[1, 2], xlabel = "x", ylabel = L"J_z", title = "Current Density")
ax3 = Axis(fig[1, 3], xlabel = "x", ylabel = L"\eta |J|^2", title = "Ohmic Heating Rate")
scatter!(ax1, x, By_vals, color = :blue, markersize = 4)
scatter!(ax2, x, J_vals, color = :red, markersize = 4)
scatter!(ax3, x, Q_vals, color = :orange, markersize = 4)
resize_to_layout!(fig)
fig

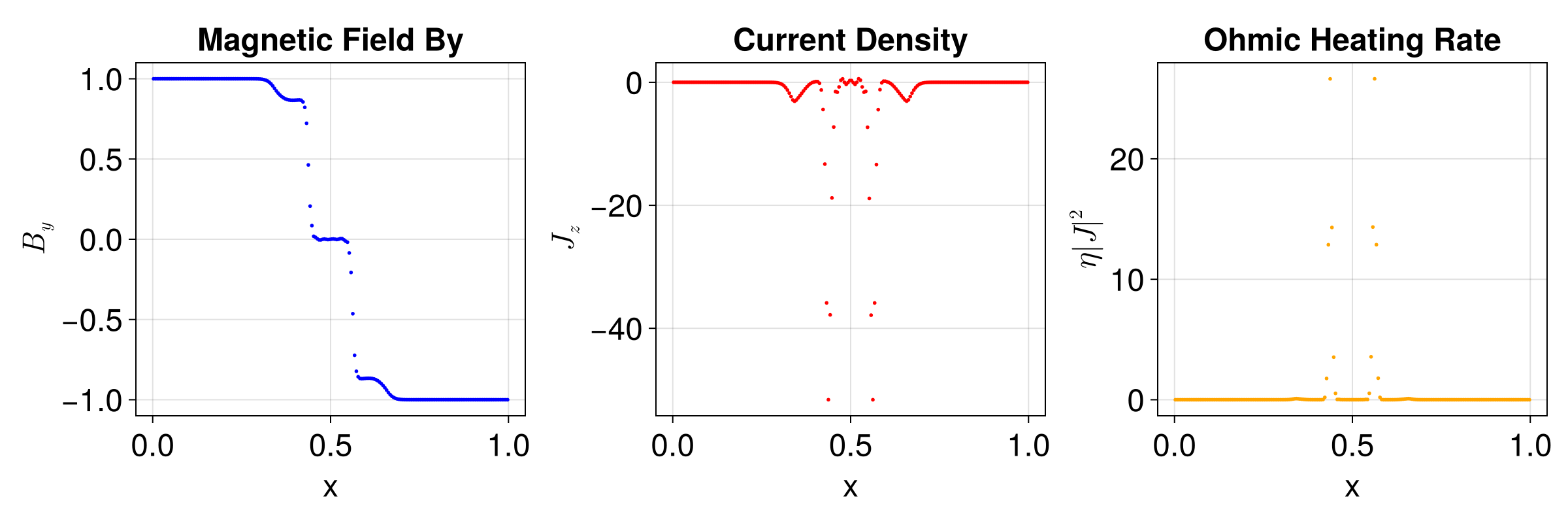

The ideal MHD evolution produces fast magnetosonic waves that propagate away from the current sheet. The current density $J_z$ peaks at the reversal layer. The Ohmic heating rate $\eta |J|^2$ shows where magnetic energy would be dissipated in a resistive run.
