Orszag-Tang Vortex

The Orszag-Tang vortex is an iconic 2D MHD test problem that demonstrates the transition to MHD turbulence. Starting from smooth initial conditions, the flow develops a complex pattern of interacting shocks and current sheets.

Problem Setup

The domain is $[0, 1]^2$ with periodic boundary conditions and $\gamma = 5/3$. The initial condition is a superposition of velocity and magnetic field vortices:

\[\rho = \gamma^2, \quad P = \gamma, \quad v_x = -\sin(2\pi y), \quad v_y = \sin(2\pi x),\]

\[B_x = -\frac{\sin(2\pi y)}{\sqrt{4\pi}}, \quad B_y = \frac{\sin(4\pi x)}{\sqrt{4\pi}}.\]

using FiniteVolumeMethod
using StaticArrays

gamma = 5.0 / 3.0
eos = IdealGasEOS(gamma)
law = IdealMHDEquations{2}(eos)

N = 50
mesh = StructuredMesh2D(0.0, 1.0, 0.0, 1.0, N, N)

function ot_ic(x, y)
    rho = gamma^2
    P = gamma
    vx = -sin(2 * pi * y)
    vy = sin(2 * pi * x)
    vz = 0.0
    Bx = -sin(2 * pi * y) / sqrt(4 * pi)
    By = sin(4 * pi * x) / sqrt(4 * pi)
    Bz = 0.0
    return SVector(rho, vx, vy, vz, P, Bx, By, Bz)
end
ot_ic (generic function with 1 method)

Vector Potential Initialisation

For MHD with constrained transport, we initialise the magnetic field using a vector potential $A_z(x,y)$ to guarantee $\nabla\cdot\vb B = 0$ to machine precision. The vector potential satisfying $B_x = \partial A_z/\partial y$ and $B_y = -\partial A_z/\partial x$ is:

function Az_ot(x, y)
    return cos(2 * pi * y) / (2 * pi * sqrt(4 * pi)) +
        cos(4 * pi * x) / (4 * pi * sqrt(4 * pi))
end
Az_ot (generic function with 1 method)

Solving

We use the HLLD Riemann solver with MUSCL reconstruction and periodic BCs.

prob = HyperbolicProblem2D(
    law, mesh, HLLDSolver(), CellCenteredMUSCL(MinmodLimiter()),
    PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
    PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
    ot_ic; final_time = 0.5, cfl = 0.4
)
HyperbolicProblem2D: IdealMHDEquations with HLLDSolver on 50×50 cells, t ∈ (0.0, 0.5)

The vector_potential keyword tells solve_hyperbolic to initialise the face-centred magnetic field from $A_z$ via Stokes' theorem:

coords, U, t_final, ct = solve_hyperbolic(prob; vector_potential = Az_ot)
50×50 Matrix{Tuple{Float64, Float64}}:
 (0.01, 0.01)  (0.01, 0.03)  (0.01, 0.05)  …  (0.01, 0.97)  (0.01, 0.99)
 (0.03, 0.01)  (0.03, 0.03)  (0.03, 0.05)     (0.03, 0.97)  (0.03, 0.99)
 (0.05, 0.01)  (0.05, 0.03)  (0.05, 0.05)     (0.05, 0.97)  (0.05, 0.99)
 (0.07, 0.01)  (0.07, 0.03)  (0.07, 0.05)     (0.07, 0.97)  (0.07, 0.99)
 (0.09, 0.01)  (0.09, 0.03)  (0.09, 0.05)     (0.09, 0.97)  (0.09, 0.99)
 ⋮                                         ⋱
 (0.91, 0.01)  (0.91, 0.03)  (0.91, 0.05)  …  (0.91, 0.97)  (0.91, 0.99)
 (0.93, 0.01)  (0.93, 0.03)  (0.93, 0.05)     (0.93, 0.97)  (0.93, 0.99)
 (0.95, 0.01)  (0.95, 0.03)  (0.95, 0.05)     (0.95, 0.97)  (0.95, 0.99)
 (0.97, 0.01)  (0.97, 0.03)  (0.97, 0.05)     (0.97, 0.97)  (0.97, 0.99)
 (0.99, 0.01)  (0.99, 0.03)  (0.99, 0.05)     (0.99, 0.97)  (0.99, 0.99)

Checking $\nabla\cdot\vb B$

The constrained transport algorithm should keep $|\nabla\cdot\vb B|$ at machine precision:

divB_max = max_divB(ct, mesh)
true

Visualisation

using CairoMakie

nx, ny = N, N
xc = [coords[i, 1][1] for i in 1:nx]
yc = [coords[1, j][2] for j in 1:ny]
rho = [conserved_to_primitive(law, U[i, j])[1] for i in 1:nx, j in 1:ny]
P_vals = [conserved_to_primitive(law, U[i, j])[5] for i in 1:nx, j in 1:ny]

fig = Figure(fontsize = 24, size = (1100, 500))
ax1 = Axis(
    fig[1, 1], xlabel = "x", ylabel = "y",
    title = "Density at t = $(round(t_final, digits = 2))", aspect = DataAspect()
)
hm1 = heatmap!(ax1, xc, yc, rho, colormap = :viridis)
Colorbar(fig[1, 2], hm1)

ax2 = Axis(
    fig[1, 3], xlabel = "x", ylabel = "y",
    title = "Pressure", aspect = DataAspect()
)
hm2 = heatmap!(ax2, xc, yc, P_vals, colormap = :magma)
Colorbar(fig[1, 4], hm2)
resize_to_layout!(fig)
fig
Example block output

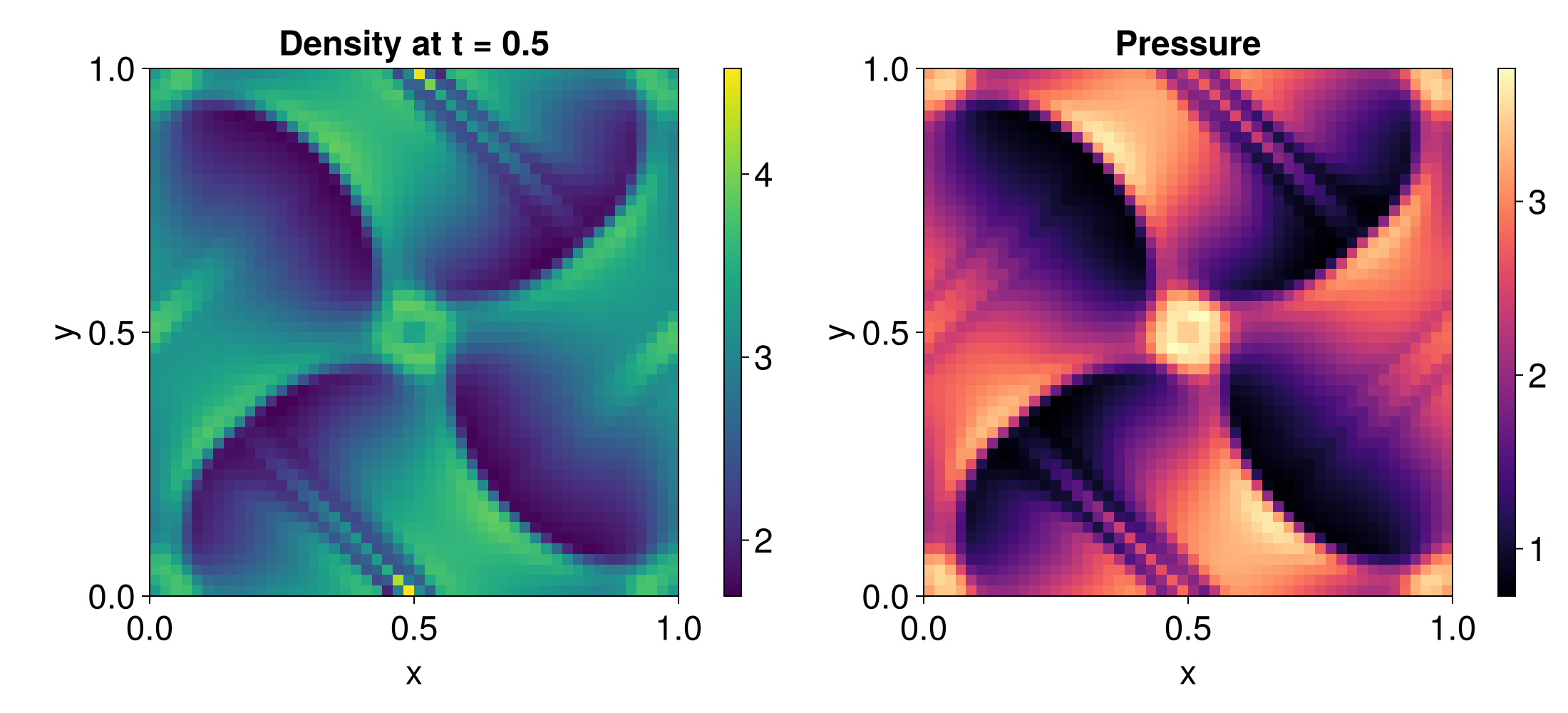

The density and pressure fields show the characteristic pattern of interacting shocks and current sheets. The maximum $|\nabla\cdot\vb B|$ is round(divB_max, sigdigits = 2), confirming that constrained transport maintains the divergence-free constraint to machine precision.
