MHD Rotor

The MHD rotor problem (Balsara & Spicer, 1999) is a classic test for 2D MHD solvers. A dense, rapidly spinning disk is embedded in a uniform magnetic field. The magnetic pressure confines the rotor and launches torsional Alfvén waves that wrap around it, producing characteristic spiral structure.

Problem Setup

The domain is $[0, 1]^2$. A disk of radius $r_0 = 0.1$ centred at $(0.5, 0.5)$ has density $\rho = 10$ and toroidal velocity with $v_\phi = 2$. Outside a taper zone $r_1 = 0.115$ the fluid is at rest with $\rho = 1$. A uniform magnetic field $B_x = 5/\sqrt{4\pi}$ threads the entire domain.

using FiniteVolumeMethod
using StaticArrays

gamma = 1.4
eos = IdealGasEOS(gamma)
law = IdealMHDEquations{2}(eos)

r0 = 0.1
r1 = 0.115
B0 = 5.0 / sqrt(4.0 * π)
P0 = 1.0
rho_in = 10.0
rho_out = 1.0
vphi_max = 2.0

2.0

The taper function smoothly transitions between the rotor interior and the ambient medium:

function rotor_ic(x, y)
    dx, dy = x - 0.5, y - 0.5
    r = sqrt(dx^2 + dy^2)
    if r < r0
        f = 1.0
    elseif r < r1
        f = (r1 - r) / (r1 - r0)
    else
        f = 0.0
    end
    rho = rho_in * f + rho_out * (1.0 - f)
    vphi = vphi_max * f
    # Toroidal velocity: v_phi = (-sin(theta), cos(theta)) * vphi
    vx = r > 1.0e-14 ? -vphi * dy / r : 0.0
    vy = r > 1.0e-14 ? vphi * dx / r : 0.0
    return SVector(rho, vx, vy, 0.0, P0, B0, 0.0, 0.0)
end

rotor_ic (generic function with 1 method)

Vector Potential

We initialise the uniform magnetic field via a vector potential $A_z(x,y) = B_0 \, y$ to ensure $\nabla\cdot\vb B = 0$ at machine precision through constrained transport.

Az_rotor(x, y) = B0 * y

Az_rotor (generic function with 1 method)

Solving

N = 100
mesh = StructuredMesh2D(0.0, 1.0, 0.0, 1.0, N, N)

prob = HyperbolicProblem2D(
    law, mesh, HLLDSolver(), CellCenteredMUSCL(MinmodLimiter()),
    TransmissiveBC(), TransmissiveBC(),
    TransmissiveBC(), TransmissiveBC(),
    rotor_ic; final_time = 0.15, cfl = 0.3
)

coords, U, t_final, ct = solve_hyperbolic(prob; vector_potential = Az_rotor)

100×100 Matrix{Tuple{Float64, Float64}}:
 (0.005, 0.005)  (0.005, 0.015)  …  (0.005, 0.985)  (0.005, 0.995)
 (0.015, 0.005)  (0.015, 0.015)     (0.015, 0.985)  (0.015, 0.995)
 (0.025, 0.005)  (0.025, 0.015)     (0.025, 0.985)  (0.025, 0.995)
 (0.035, 0.005)  (0.035, 0.015)     (0.035, 0.985)  (0.035, 0.995)
 (0.045, 0.005)  (0.045, 0.015)     (0.045, 0.985)  (0.045, 0.995)
 ⋮                               ⋱
 (0.955, 0.005)  (0.955, 0.015)  …  (0.955, 0.985)  (0.955, 0.995)
 (0.965, 0.005)  (0.965, 0.015)     (0.965, 0.985)  (0.965, 0.995)
 (0.975, 0.005)  (0.975, 0.015)     (0.975, 0.985)  (0.975, 0.995)
 (0.985, 0.005)  (0.985, 0.015)     (0.985, 0.985)  (0.985, 0.995)
 (0.995, 0.005)  (0.995, 0.015)     (0.995, 0.985)  (0.995, 0.995)

Checking Divergence

divB_max = max_divB(ct, mesh)

true

Visualisation

using CairoMakie

nx, ny = N, N
xc = [coords[i, 1][1] for i in 1:nx]
yc = [coords[1, j][2] for j in 1:ny]

rho = [conserved_to_primitive(law, U[i, j])[1] for i in 1:nx, j in 1:ny]
P = [conserved_to_primitive(law, U[i, j])[5] for i in 1:nx, j in 1:ny]
Bmag = [
    begin
            w = conserved_to_primitive(law, U[i, j])
            sqrt(w[6]^2 + w[7]^2)
        end for i in 1:nx, j in 1:ny
]

fig = Figure(fontsize = 20, size = (1400, 450))
ax1 = Axis(
    fig[1, 1], xlabel = "x", ylabel = "y",
    title = "Density", aspect = DataAspect()
)
hm1 = heatmap!(ax1, xc, yc, rho, colormap = :viridis)
Colorbar(fig[1, 2], hm1)

ax2 = Axis(
    fig[1, 3], xlabel = "x", ylabel = "y",
    title = "Pressure", aspect = DataAspect()
)
hm2 = heatmap!(ax2, xc, yc, P, colormap = :inferno)
Colorbar(fig[1, 4], hm2)

ax3 = Axis(
    fig[1, 5], xlabel = "x", ylabel = "y",
    title = "|B|", aspect = DataAspect()
)
hm3 = heatmap!(ax3, xc, yc, Bmag, colormap = :plasma)
Colorbar(fig[1, 6], hm3)

resize_to_layout!(fig)
fig

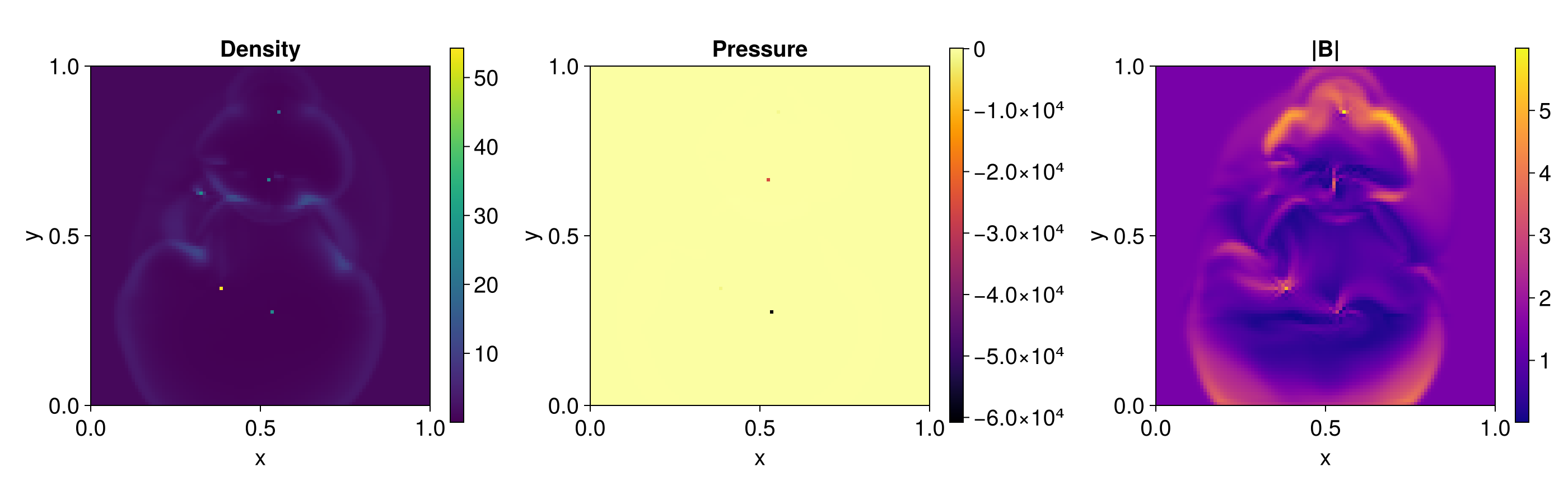

The density panel shows the spinning rotor being confined by the magnetic field. The pressure field reveals the magnetic pressure build-up around the rotor. The $|\vb B|$ panel shows the torsional Alfvén waves wrapping around the disk. The maximum |\nabla\cdot\vb B| = $ round(divB_max, sigdigits = 2) confirms that constrained transport maintains the solenoidal constraint.

┌ Warning: Negative pressures detected in MHD rotor
└ @ Main mhd_rotor.md:151
