Kelvin-Helmholtz Instability

The Kelvin-Helmholtz instability (KHI) is a shear-driven hydrodynamic instability that develops at the interface between two fluid layers moving at different velocities. The instability rolls up into characteristic vortex structures.

Problem Setup

We solve the 2D Euler equations on $[0, 1]^2$ with periodic boundary conditions. The initial condition has two shear layers with a small velocity perturbation to seed the instability:

using FiniteVolumeMethod
using StaticArrays

gamma = 1.4
eos = IdealGasEOS(gamma)
law = EulerEquations{2}(eos)

# Shear layer parameters
rho1 = 1.0    ## density of the inner layer
rho2 = 2.0    ## density of the outer layers
v_shear = 0.5
P0 = 2.5
A_pert = 0.01 ## perturbation amplitude

function kh_ic(x, y)
    # Two shear layers at y = 0.25 and y = 0.75
    if 0.25 < y < 0.75
        rho = rho2
        vx = v_shear
    else
        rho = rho1
        vx = -v_shear
    end
    # Smooth the density transition
    sigma = 0.05
    rho = rho1 + (rho2 - rho1) * (
        0.5 * (1.0 + tanh((y - 0.25) / sigma)) -
            0.5 * (1.0 + tanh((y - 0.75) / sigma))
    )
    vx_smooth = -v_shear + 2 * v_shear * (
        0.5 * (1.0 + tanh((y - 0.25) / sigma)) -
            0.5 * (1.0 + tanh((y - 0.75) / sigma))
    )
    # Sinusoidal perturbation in vy to seed the instability
    vy = A_pert * sin(4 * pi * x)
    return SVector(rho, vx_smooth, vy, P0)
end

kh_ic (generic function with 1 method)

Solving at Two Resolutions

We compare $N=64$ and $N=128$ to show how resolution affects the development of the instability.

t_final = 1.0

N_low = 64
mesh_low = StructuredMesh2D(0.0, 1.0, 0.0, 1.0, N_low, N_low)
prob_low = HyperbolicProblem2D(
    law, mesh_low, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
    PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
    PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
    kh_ic; final_time = t_final, cfl = 0.4
)
coords_low, U_low, _ = solve_hyperbolic(prob_low)

N_high = 128
mesh_high = StructuredMesh2D(0.0, 1.0, 0.0, 1.0, N_high, N_high)
prob_high = HyperbolicProblem2D(
    law, mesh_high, HLLCSolver(), CellCenteredMUSCL(MinmodLimiter()),
    PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
    PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
    kh_ic; final_time = t_final, cfl = 0.4
)
coords_high, U_high, t_end = solve_hyperbolic(prob_high)

128×128 Matrix{Tuple{Float64, Float64}}:
 (0.00390625, 0.00390625)  (0.00390625, 0.0117188)  …  (0.00390625, 0.996094)
 (0.0117188, 0.00390625)   (0.0117188, 0.0117188)      (0.0117188, 0.996094)
 (0.0195312, 0.00390625)   (0.0195312, 0.0117188)      (0.0195312, 0.996094)
 (0.0273438, 0.00390625)   (0.0273438, 0.0117188)      (0.0273438, 0.996094)
 (0.0351562, 0.00390625)   (0.0351562, 0.0117188)      (0.0351562, 0.996094)
 ⋮                                                  ⋱
 (0.964844, 0.00390625)    (0.964844, 0.0117188)       (0.964844, 0.996094)
 (0.972656, 0.00390625)    (0.972656, 0.0117188)       (0.972656, 0.996094)
 (0.980469, 0.00390625)    (0.980469, 0.0117188)    …  (0.980469, 0.996094)
 (0.988281, 0.00390625)    (0.988281, 0.0117188)       (0.988281, 0.996094)
 (0.996094, 0.00390625)    (0.996094, 0.0117188)       (0.996094, 0.996094)

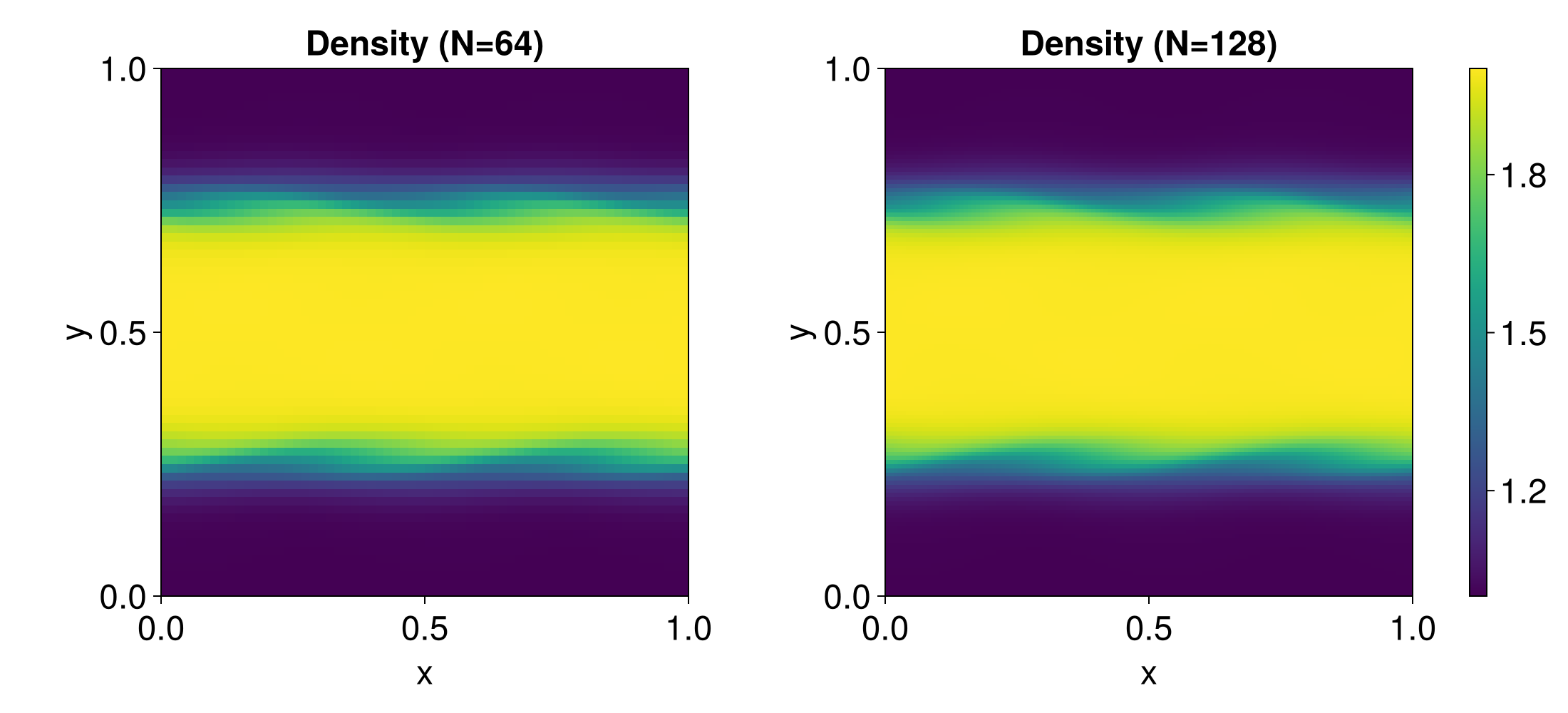

Visualisation

using CairoMakie

fig = Figure(fontsize = 24, size = (1100, 500))

ax1 = Axis(
    fig[1, 1], xlabel = "x", ylabel = "y",
    title = "Density (N=$(N_low))", aspect = DataAspect()
)
xc_l = [coords_low[i, 1][1] for i in 1:N_low]
yc_l = [coords_low[1, j][2] for j in 1:N_low]
rho_low = [conserved_to_primitive(law, U_low[i, j])[1] for i in 1:N_low, j in 1:N_low]
hm1 = heatmap!(ax1, xc_l, yc_l, rho_low, colormap = :viridis)

ax2 = Axis(
    fig[1, 2], xlabel = "x", ylabel = "y",
    title = "Density (N=$(N_high))", aspect = DataAspect()
)
xc_h = [coords_high[i, 1][1] for i in 1:N_high]
yc_h = [coords_high[1, j][2] for j in 1:N_high]
rho_high = [conserved_to_primitive(law, U_high[i, j])[1] for i in 1:N_high, j in 1:N_high]
hm2 = heatmap!(ax2, xc_h, yc_h, rho_high, colormap = :viridis)
Colorbar(fig[1, 3], hm2)

resize_to_layout!(fig)
fig

At higher resolution, the vortex roll-up is more finely resolved and secondary instabilities become visible. The KHI is an excellent test for the interplay between numerical dissipation and physical instability growth.

true
