IMEX Stiff Relaxation

This tutorial demonstrates the implicit-explicit (IMEX) time integration scheme for problems with stiff source terms. We consider the 1D Euler equations with a stiff radiative cooling source that drives the gas toward an equilibrium temperature on a time scale much shorter than the CFL time step.

Problem Setup

The governing equations are:

\[\pdv{\vb U}{t} + \pdv{\vb F}{x} = \vb S_{\mathrm{stiff}}(\vb U),\]

where the source term represents optically thin radiative cooling: $S_E = -\rho^2 \Lambda(T)$ with $\Lambda(T) = \lambda(T - T_{\mathrm{target}})$. When $\lambda \gg 1$, the cooling is stiff and an explicit time integrator would require impractically small time steps.

using FiniteVolumeMethod
using StaticArrays

gamma = 1.4
eos = IdealGasEOS(gamma)
law = EulerEquations{1}(eos)

# Physical parameters
rho_init = 1.0
v_init = 0.0
P_target = 1.0     ## equilibrium pressure
P_init = 3.0       ## initial pressure (above equilibrium)
mu_mol = 1.0       ## mean molecular weight
lambda_rate = 50.0  ## stiff cooling rate

50.0

Cooling Source

The CoolingSource takes a function $\Lambda(T)$ and the mean molecular weight $\mu$. The temperature is computed as $T = P\mu/\rho$.

T_target = P_target * mu_mol
cooling_func = T -> lambda_rate * (T - T_target)
source = CoolingSource(cooling_func; mu_mol = mu_mol)

w_init = SVector(rho_init, v_init, P_init)

3-element StaticArraysCore.SVector{3, Float64} with indices SOneTo(3):
 1.0
 0.0
 3.0

Solving with Different IMEX Schemes

We compare three IMEX Runge-Kutta schemes:

N = 32
mesh = StructuredMesh1D(0.0, 1.0, N)
t_final = 0.05

prob = HyperbolicProblem(
    law, mesh, HLLSolver(), NoReconstruction(),
    TransmissiveBC(), TransmissiveBC(),
    x -> w_init;
    final_time = t_final, cfl = 0.4
)

HyperbolicProblem: EulerEquations with HLLSolver on 32 cells, t ∈ (0.0, 0.05)

SSP3(4,3,3) — 4-stage, 3rd-order SSP scheme:

x_ssp, U_ssp, t_ssp = solve_hyperbolic_imex(
    prob, source; scheme = IMEX_SSP3_433(),
    newton_tol = 1.0e-12, newton_maxiter = 10
)

([0.015625, 0.046875, 0.078125, 0.109375, 0.140625, 0.171875, 0.203125, 0.234375, 0.265625, 0.296875  …  0.703125, 0.734375, 0.765625, 0.796875, 0.828125, 0.859375, 0.890625, 0.921875, 0.953125, 0.984375], StaticArraysCore.SVector{3, Float64}[[1.0, 0.0, 4.426525412870292], [1.0, 0.0, 4.426525412870292], [1.0, 0.0, 4.426525412870292], [1.0, 0.0, 4.426525412870292], [1.0, 0.0, 4.426525412870292], [1.0, 0.0, 4.426525412870292], [1.0, 0.0, 4.426525412870292], [1.0, 0.0, 4.426525412870292], [1.0, 0.0, 4.426525412870292], [1.0, 0.0, 4.426525412870292]  …  [1.0, 0.0, 4.426525412870292], [1.0, 0.0, 4.426525412870292], [1.0, 0.0, 4.426525412870292], [1.0, 0.0, 4.426525412870292], [1.0, 0.0, 4.426525412870292], [1.0, 0.0, 4.426525412870292], [1.0, 0.0, 4.426525412870292], [1.0, 0.0, 4.426525412870292], [1.0, 0.0, 4.426525412870292], [1.0, 0.0, 4.426525412870292]], 0.05)

ARS(2,2,2) — 3-stage, 2nd-order L-stable scheme:

x_ars, U_ars, t_ars = solve_hyperbolic_imex(
    prob, source; scheme = IMEX_ARS222(),
    newton_tol = 1.0e-12, newton_maxiter = 10
)

32-element Vector{Float64}:
 0.015625
 0.046875
 0.078125
 0.109375
 0.140625
 ⋮
 0.859375
 0.890625
 0.921875
 0.953125
 0.984375

Checking Relaxation

The pressure should relax toward $P_{\mathrm{target}} = 1.0$ from the initial $P_{\mathrm{init}} = 3.0$:

P_ssp = [conserved_to_primitive(law, U_ssp[i])[3] for i in eachindex(U_ssp)]
P_ars = [conserved_to_primitive(law, U_ars[i])[3] for i in eachindex(U_ars)]

# The pressure should be closer to P_target than P_init
P_avg_ssp = sum(P_ssp) / length(P_ssp)
P_avg_ars = sum(P_ars) / length(P_ars)

true

Visualisation

using CairoMakie

fig = Figure(fontsize = 24, size = (900, 400))
ax1 = Axis(
    fig[1, 1], xlabel = "x", ylabel = "P",
    title = "Pressure relaxation"
)
scatter!(ax1, x_ssp, P_ssp, color = :blue, markersize = 6, label = "SSP3(4,3,3)")
scatter!(ax1, x_ars, P_ars, color = :red, markersize = 6, label = "ARS(2,2,2)")
hlines!(ax1, [P_target], color = :black, linestyle = :dash, label = L"P_{\mathrm{target}}")
hlines!(ax1, [P_init], color = :gray, linestyle = :dot, label = L"P_{\mathrm{init}}")
axislegend(ax1, position = :rt)

# Also check that density is preserved
rho_ssp = [conserved_to_primitive(law, U_ssp[i])[1] for i in eachindex(U_ssp)]
ax2 = Axis(
    fig[1, 2], xlabel = "x", ylabel = L"\rho",
    title = "Density (should be constant)"
)
scatter!(ax2, x_ssp, rho_ssp, color = :blue, markersize = 6)
hlines!(ax2, [rho_init], color = :black, linestyle = :dash)

resize_to_layout!(fig)
fig

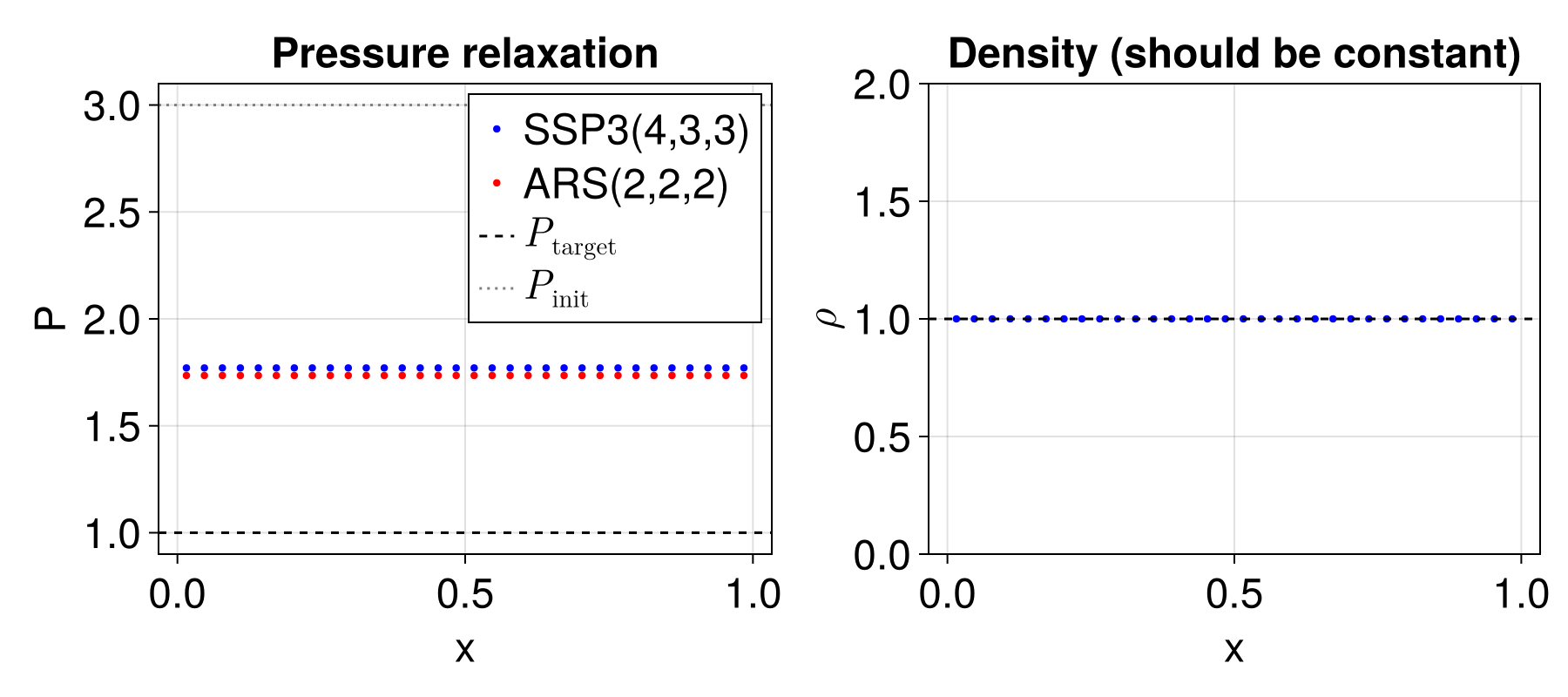

The pressure relaxes from $P = 3$ toward the equilibrium $P = 1$, while the density remains constant (the cooling source only affects energy). The IMEX scheme handles the stiff source implicitly, allowing stable time steps determined by the CFL condition rather than the fast cooling time scale.
