Hall MHD Whistler Waves

This tutorial demonstrates the HallMHDEquations type, which extends ideal MHD with the Hall term from the generalized Ohm's law. The Hall effect introduces dispersive whistler waves with phase speed proportional to $d_i k v_A$ (resolution-dependent).

The solve_hyperbolic solver evolves only the ideal (hyperbolic) MHD part. The Hall flux corrections (hall_flux_x, whistler_speed) are provided as standalone utility functions. Here we show the ideal evolution of a circularly polarized Alfvén wave and demonstrate the Hall utility API.

Problem Setup

We initialise a circularly polarized Alfvén wave on a uniform background with density $\rho = 1$, pressure $P = 1$, and guide field $B_x = 1$. The transverse components $B_y$ and $B_z$ are initialised as a sinusoidal perturbation.

using FiniteVolumeMethod
using StaticArrays

eos = IdealGasEOS(5.0 / 3.0)
law = HallMHDEquations{1}(eos; di = 0.1)

HallMHDEquations{1, IdealGasEOS{Float64}}(IdealGasEOS{Float64}(1.6666666666666667), 0.1, 0.0)

Initial condition: circularly polarized Alfvén wave.

function alfven_wave_ic(x)
    rho = 1.0
    P = 1.0
    Bx = 1.0
    amp = 0.1
    k = 2 * pi
    By = amp * sin(k * x)
    Bz = amp * cos(k * x)
    # Alfvén wave: velocity perturbation anti-correlated with B
    vA = Bx / sqrt(rho)
    vy = -By / sqrt(rho)
    vz = -Bz / sqrt(rho)
    vx = 0.0
    return SVector(rho, vx, vy, vz, P, Bx, By, Bz)
end

N = 200
mesh = StructuredMesh1D(0.0, 1.0, N)

prob = HyperbolicProblem(
    law, mesh, HLLDSolver(), CellCenteredMUSCL(MinmodLimiter()),
    PeriodicHyperbolicBC(), PeriodicHyperbolicBC(), alfven_wave_ic;
    final_time = 0.5, cfl = 0.3,
)
x, U, t = solve_hyperbolic(prob)

200-element Vector{Float64}:
 0.0025
 0.0075
 0.0125
 0.0175
 0.0225
 ⋮
 0.9775
 0.9825
 0.9875
 0.9925
 0.9975

Computing Whistler Speed Profile

The whistler speed $c_w = d_i |B| / (\sqrt{\rho} \, \Delta x)$ is computed at each cell to illustrate the resolution-dependent wave speed introduced by the Hall term.

W = to_primitive(law, U)
dx = 1.0 / N

By_vals = [W[i][7] for i in eachindex(W)]
Bz_vals = [W[i][8] for i in eachindex(W)]
cw_vals = [
    begin
            rho = W[i][1]
            B_mag = sqrt(W[i][6]^2 + W[i][7]^2 + W[i][8]^2)
            whistler_speed(law, rho, B_mag, dx)
        end
        for i in eachindex(W)
]

# Demonstrate hall_flux_x between two adjacent cells
i_mid = N ÷ 2
flux_demo = hall_flux_x(law, U[i_mid], U[i_mid + 1], dx)

8-element StaticArraysCore.SVector{8, Float64} with indices SOneTo(8):
 0.0
 0.0
 0.0
 0.0
 0.0006280822758114668
 0.0
 2.0446331382337038e-5
 0.006332853598172679

Visualisation

using CairoMakie

fig = Figure(fontsize = 24, size = (1200, 400))
ax1 = Axis(fig[1, 1], xlabel = "x", ylabel = L"B_y", title = "Transverse Field By")
ax2 = Axis(fig[1, 2], xlabel = "x", ylabel = L"B_z", title = "Transverse Field Bz")
ax3 = Axis(fig[1, 3], xlabel = "x", ylabel = L"c_w", title = "Whistler Speed")
scatter!(ax1, x, By_vals, color = :blue, markersize = 4)
scatter!(ax2, x, Bz_vals, color = :red, markersize = 4)
scatter!(ax3, x, cw_vals, color = :purple, markersize = 4)
resize_to_layout!(fig)
fig

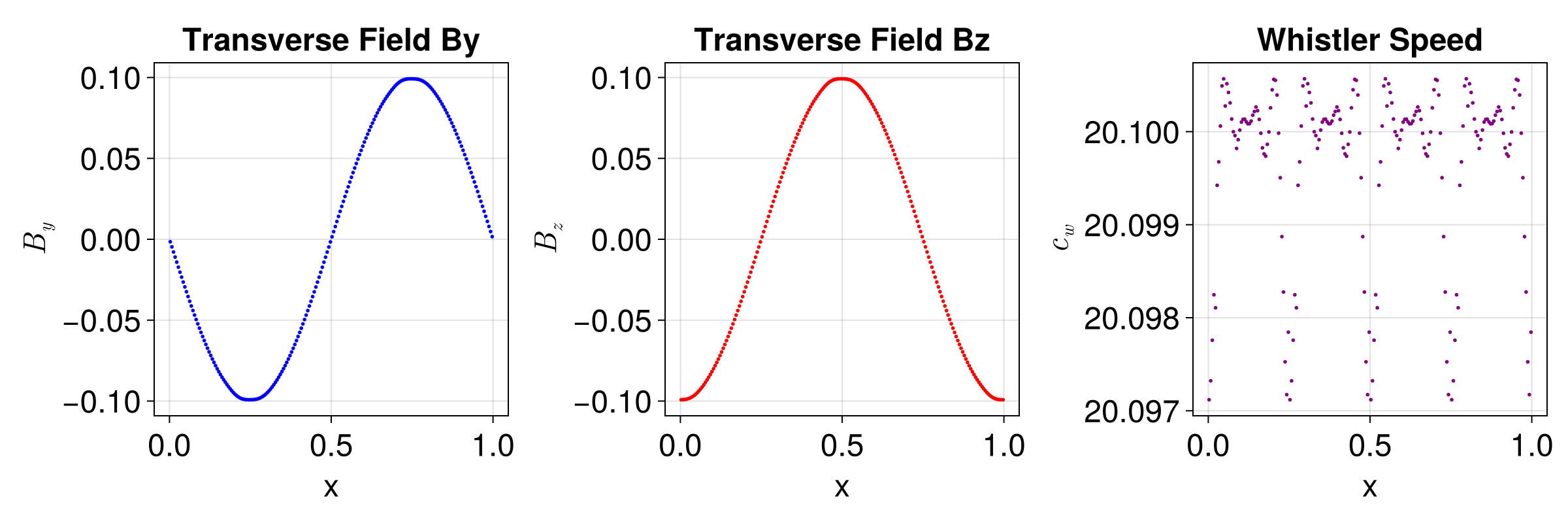

The Alfvén wave propagates along the domain with the ideal MHD solver. The whistler speed profile shows the resolution-dependent phase speed that the Hall term would introduce — at this grid spacing, $c_w \approx d_i |B| / (\sqrt{\rho} \Delta x)$.

Physical Checks

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using FiniteVolumeMethod
using StaticArrays

eos = IdealGasEOS(5.0 / 3.0)
law = HallMHDEquations{1}(eos; di = 0.1)

function alfven_wave_ic(x)
    rho = 1.0
    P = 1.0
    Bx = 1.0
    amp = 0.1
    k = 2 * pi
    By = amp * sin(k * x)
    Bz = amp * cos(k * x)
    # Alfvén wave: velocity perturbation anti-correlated with B
    vA = Bx / sqrt(rho)
    vy = -By / sqrt(rho)
    vz = -Bz / sqrt(rho)
    vx = 0.0
    return SVector(rho, vx, vy, vz, P, Bx, By, Bz)
end

N = 200
mesh = StructuredMesh1D(0.0, 1.0, N)

prob = HyperbolicProblem(
    law, mesh, HLLDSolver(), CellCenteredMUSCL(MinmodLimiter()),
    PeriodicHyperbolicBC(), PeriodicHyperbolicBC(), alfven_wave_ic;
    final_time = 0.5, cfl = 0.3,
)
x, U, t = solve_hyperbolic(prob)

W = to_primitive(law, U)
dx = 1.0 / N

By_vals = [W[i][7] for i in eachindex(W)]
Bz_vals = [W[i][8] for i in eachindex(W)]
cw_vals = [
    begin
            rho = W[i][1]
            B_mag = sqrt(W[i][6]^2 + W[i][7]^2 + W[i][8]^2)
            whistler_speed(law, rho, B_mag, dx)
        end
        for i in eachindex(W)
]

# Demonstrate hall_flux_x between two adjacent cells
i_mid = N ÷ 2
flux_demo = hall_flux_x(law, U[i_mid], U[i_mid + 1], dx)

using CairoMakie

fig = Figure(fontsize = 24, size = (1200, 400))
ax1 = Axis(fig[1, 1], xlabel = "x", ylabel = L"B_y", title = "Transverse Field By")
ax2 = Axis(fig[1, 2], xlabel = "x", ylabel = L"B_z", title = "Transverse Field Bz")
ax3 = Axis(fig[1, 3], xlabel = "x", ylabel = L"c_w", title = "Whistler Speed")
scatter!(ax1, x, By_vals, color = :blue, markersize = 4)
scatter!(ax2, x, Bz_vals, color = :red, markersize = 4)
scatter!(ax3, x, cw_vals, color = :purple, markersize = 4)
resize_to_layout!(fig)
fig
