Field Loop Advection
This tutorial demonstrates the constrained transport (CT) algorithm by advecting a weak magnetic field loop across a periodic domain. The key lesson is that initialising discontinuous magnetic fields by point evaluation fails to satisfy $\nabla\cdot\vb B = 0$; instead, one must use a vector potential initialisation via Stokes' theorem.
Problem Setup
A circular magnetic field loop of radius $R_0 = 0.3$ and amplitude $A_0 = 10^{-3}$ is advected at velocity $(v_x, v_y) = (1, 0.5)$ across $[0, 1]^2$ with periodic boundary conditions.
using FiniteVolumeMethod
using StaticArrays
gamma = 5.0 / 3.0
eos = IdealGasEOS(gamma)
law = IdealMHDEquations{2}(eos)
R0 = 0.3
A0 = 1.0e-3
vx_bg, vy_bg = 1.0, 0.5
rho_bg, P_bg = 1.0, 1.0(1.0, 1.0)The initial condition sets the field loop using point evaluation (for the cell-centred values):
function loop_ic(x, y)
r = sqrt((x - 0.5)^2 + (y - 0.5)^2)
if r < R0
Bx = -A0 * (y - 0.5) / r
By = A0 * (x - 0.5) / r
else
Bx = 0.0
By = 0.0
end
return SVector(rho_bg, vx_bg, vy_bg, 0.0, P_bg, Bx, By, 0.0)
endloop_ic (generic function with 1 method)Vector Potential
The vector potential $A_z(x,y)$ gives a divergence-free magnetic field by construction. For a circular loop:
\[A_z(x,y) = \begin{cases}A_0(R_0 - r) & r < R_0,\\0 & r \geq R_0,\end{cases}\]
where $r = \sqrt{(x-0.5)^2 + (y-0.5)^2}$.
function Az_loop(x, y)
r = sqrt((x - 0.5)^2 + (y - 0.5)^2)
return r < R0 ? A0 * (R0 - r) : 0.0
endAz_loop (generic function with 1 method)Solving
N = 50
mesh = StructuredMesh2D(0.0, 1.0, 0.0, 1.0, N, N)
prob = HyperbolicProblem2D(
law, mesh, HLLDSolver(), CellCenteredMUSCL(MinmodLimiter()),
PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
loop_ic; final_time = 1.0, cfl = 0.4
)HyperbolicProblem2D: IdealMHDEquations with HLLDSolver on 50×50 cells, t ∈ (0.0, 1.0)The vector_potential keyword triggers initialize_ct_from_potential!, which uses Stokes' theorem to compute face-centred $B$ values:
coords, U, t_final, ct = solve_hyperbolic(prob; vector_potential = Az_loop)50×50 Matrix{Tuple{Float64, Float64}}:
(0.01, 0.01) (0.01, 0.03) (0.01, 0.05) … (0.01, 0.97) (0.01, 0.99)
(0.03, 0.01) (0.03, 0.03) (0.03, 0.05) (0.03, 0.97) (0.03, 0.99)
(0.05, 0.01) (0.05, 0.03) (0.05, 0.05) (0.05, 0.97) (0.05, 0.99)
(0.07, 0.01) (0.07, 0.03) (0.07, 0.05) (0.07, 0.97) (0.07, 0.99)
(0.09, 0.01) (0.09, 0.03) (0.09, 0.05) (0.09, 0.97) (0.09, 0.99)
⋮ ⋱
(0.91, 0.01) (0.91, 0.03) (0.91, 0.05) … (0.91, 0.97) (0.91, 0.99)
(0.93, 0.01) (0.93, 0.03) (0.93, 0.05) (0.93, 0.97) (0.93, 0.99)
(0.95, 0.01) (0.95, 0.03) (0.95, 0.05) (0.95, 0.97) (0.95, 0.99)
(0.97, 0.01) (0.97, 0.03) (0.97, 0.05) (0.97, 0.97) (0.97, 0.99)
(0.99, 0.01) (0.99, 0.03) (0.99, 0.05) (0.99, 0.97) (0.99, 0.99)Checking $\nabla\cdot\vb B$
With CT + vector potential initialisation, the discrete divergence remains at machine precision:
divB_max = max_divB(ct, mesh)trueVisualisation
using CairoMakie
nx, ny = N, N
xc = [coords[i, 1][1] for i in 1:nx]
yc = [coords[1, j][2] for j in 1:ny]
# Compute |B| from the solution
Bmag = [
begin
w = conserved_to_primitive(law, U[i, j])
sqrt(w[6]^2 + w[7]^2)
end for i in 1:nx, j in 1:ny
]
rho = [conserved_to_primitive(law, U[i, j])[1] for i in 1:nx, j in 1:ny]
fig = Figure(fontsize = 24, size = (1100, 500))
ax1 = Axis(
fig[1, 1], xlabel = "x", ylabel = "y",
title = "|B| at t = $(round(t_final, digits = 2))", aspect = DataAspect()
)
hm1 = heatmap!(ax1, xc, yc, Bmag, colormap = :viridis)
Colorbar(fig[1, 2], hm1)
ax2 = Axis(
fig[1, 3], xlabel = "x", ylabel = "y",
title = "Density", aspect = DataAspect()
)
hm2 = heatmap!(ax2, xc, yc, rho, colormap = :inferno)
Colorbar(fig[1, 4], hm2)
resize_to_layout!(fig)
fig

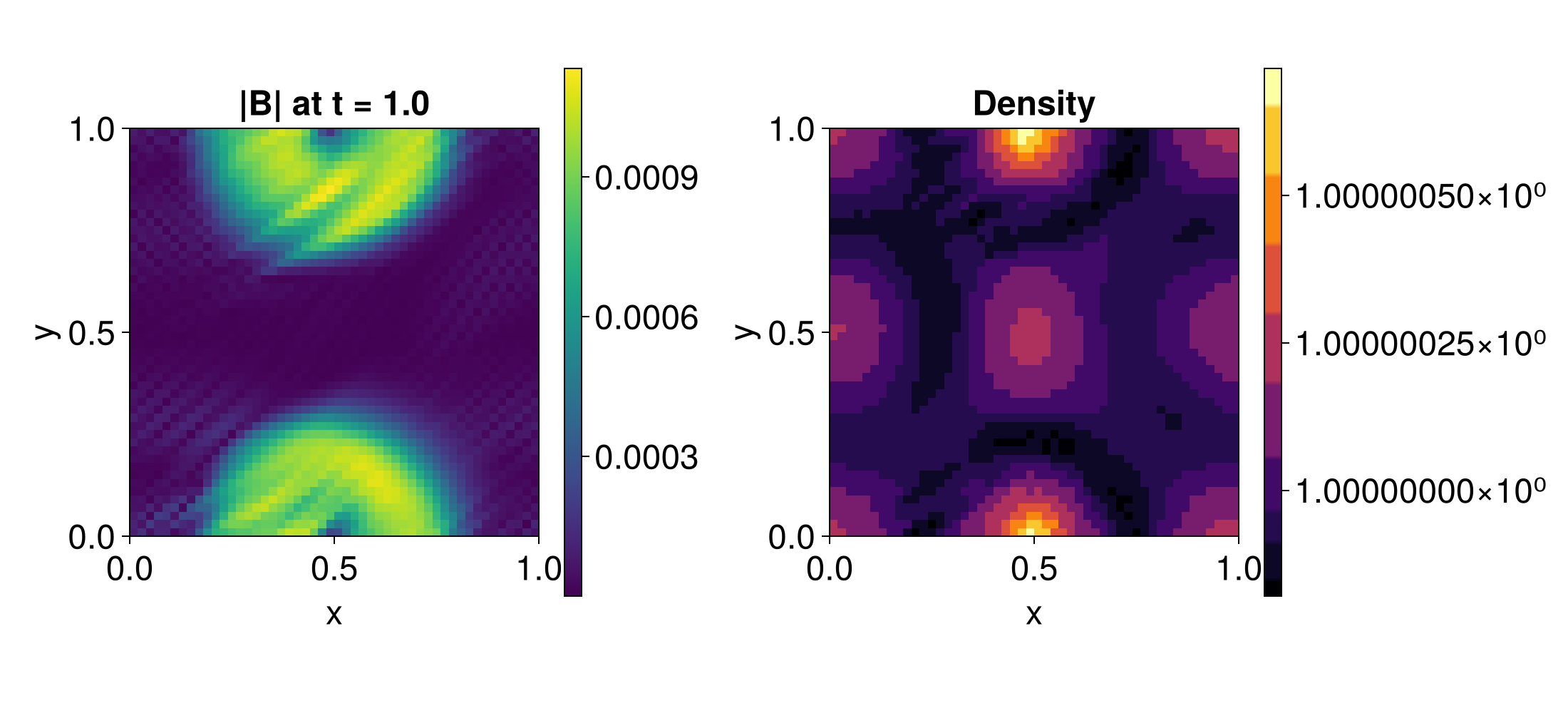

The field loop has been advected across the domain. Since the magnetic field is very weak ($A_0 = 10^{-3}$), the density remains nearly uniform. The maximum |\nabla\cdot\vb B| = $ round(divB_max, sigdigits = 2) confirms that CT preserves the divergence-free constraint throughout the simulation.
trueJust the code
An uncommented version of this example is given below. You can view the source code for this file here.
using FiniteVolumeMethod
using StaticArrays
gamma = 5.0 / 3.0
eos = IdealGasEOS(gamma)
law = IdealMHDEquations{2}(eos)
R0 = 0.3
A0 = 1.0e-3
vx_bg, vy_bg = 1.0, 0.5
rho_bg, P_bg = 1.0, 1.0
function loop_ic(x, y)
r = sqrt((x - 0.5)^2 + (y - 0.5)^2)
if r < R0
Bx = -A0 * (y - 0.5) / r
By = A0 * (x - 0.5) / r
else
Bx = 0.0
By = 0.0
end
return SVector(rho_bg, vx_bg, vy_bg, 0.0, P_bg, Bx, By, 0.0)
end
function Az_loop(x, y)
r = sqrt((x - 0.5)^2 + (y - 0.5)^2)
return r < R0 ? A0 * (R0 - r) : 0.0
end
N = 50
mesh = StructuredMesh2D(0.0, 1.0, 0.0, 1.0, N, N)
prob = HyperbolicProblem2D(
law, mesh, HLLDSolver(), CellCenteredMUSCL(MinmodLimiter()),
PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
PeriodicHyperbolicBC(), PeriodicHyperbolicBC(),
loop_ic; final_time = 1.0, cfl = 0.4
)
coords, U, t_final, ct = solve_hyperbolic(prob; vector_potential = Az_loop)
divB_max = max_divB(ct, mesh)
using CairoMakie
nx, ny = N, N
xc = [coords[i, 1][1] for i in 1:nx]
yc = [coords[1, j][2] for j in 1:ny]
# Compute |B| from the solution
Bmag = [
begin
w = conserved_to_primitive(law, U[i, j])
sqrt(w[6]^2 + w[7]^2)
end for i in 1:nx, j in 1:ny
]
rho = [conserved_to_primitive(law, U[i, j])[1] for i in 1:nx, j in 1:ny]
fig = Figure(fontsize = 24, size = (1100, 500))
ax1 = Axis(
fig[1, 1], xlabel = "x", ylabel = "y",
title = "|B| at t = $(round(t_final, digits = 2))", aspect = DataAspect()
)
hm1 = heatmap!(ax1, xc, yc, Bmag, colormap = :viridis)
Colorbar(fig[1, 2], hm1)
ax2 = Axis(
fig[1, 3], xlabel = "x", ylabel = "y",
title = "Density", aspect = DataAspect()
)
hm2 = heatmap!(ax2, xc, yc, rho, colormap = :inferno)
Colorbar(fig[1, 4], hm2)
resize_to_layout!(fig)
figThis page was generated using Literate.jl.
