Brio-Wu MHD Shock Tube

The Brio-Wu shock tube is the canonical test for MHD Riemann solvers. It is the MHD analogue of the Sod shock tube and produces a rich wave structure including fast and slow magnetosonic shocks, a compound wave, and a contact discontinuity.

Problem Setup

The 1D ideal MHD equations with 8 conserved variables $(\rho, \rho v_x, \rho v_y, \rho v_z, E, B_x, B_y, B_z)$ are solved with $\gamma = 2$ and a constant normal magnetic field $B_x = 0.75$.

using FiniteVolumeMethod
using StaticArrays

gamma = 2.0
eos = IdealGasEOS(gamma)
law = IdealMHDEquations{1}(eos)

IdealMHDEquations{1, IdealGasEOS{Float64}}(IdealGasEOS{Float64}(2.0))

The left and right primitive states are $(\rho, v_x, v_y, v_z, P, B_x, B_y, B_z)$:

Bx = 0.75
wL = SVector(1.0, 0.0, 0.0, 0.0, 1.0, Bx, 1.0, 0.0)
wR = SVector(0.125, 0.0, 0.0, 0.0, 0.1, Bx, -1.0, 0.0)

8-element StaticArraysCore.SVector{8, Float64} with indices SOneTo(8):
  0.125
  0.0
  0.0
  0.0
  0.1
  0.75
 -1.0
  0.0

Note the sign change in $B_y$: this is the key feature that produces compound MHD waves.

N = 800
mesh = StructuredMesh1D(0.0, 1.0, N)
bw_ic(x) = x < 0.5 ? wL : wR

bw_ic (generic function with 1 method)

Solving with HLLD

The HLLD solver (Miyoshi & Kusano 2005) resolves all five MHD wave families: two fast magnetosonic, two Alfven/rotational, and the contact.

prob = HyperbolicProblem(
    law, mesh, HLLDSolver(), CellCenteredMUSCL(MinmodLimiter()),
    TransmissiveBC(), TransmissiveBC(), bw_ic;
    final_time = 0.1, cfl = 0.8
)
x, U, t_final = solve_hyperbolic(prob)

800-element Vector{Float64}:
 0.000625
 0.001875
 0.003125
 0.004375
 0.005625
 ⋮
 0.994375
 0.995625
 0.9968750000000001
 0.998125
 0.999375

Visualisation

The Brio-Wu problem is best visualised with multiple panels showing different variables.

using CairoMakie

rho = [conserved_to_primitive(law, U[i])[1] for i in eachindex(U)]
vx = [conserved_to_primitive(law, U[i])[2] for i in eachindex(U)]
vy = [conserved_to_primitive(law, U[i])[3] for i in eachindex(U)]
P = [conserved_to_primitive(law, U[i])[5] for i in eachindex(U)]
By = [conserved_to_primitive(law, U[i])[7] for i in eachindex(U)]

fig = Figure(fontsize = 20, size = (1200, 800))
titles = [L"\rho", L"v_x", L"v_y", "P", L"B_y"]
data = [rho, vx, vy, P, By]
for (idx, (title, d)) in enumerate(zip(titles, data))
    row = (idx - 1) ÷ 3 + 1
    col = (idx - 1) % 3 + 1
    ax = Axis(fig[row, col], xlabel = "x", ylabel = title, title = title)
    lines!(ax, x, d, color = :blue, linewidth = 1.5)
end
resize_to_layout!(fig)
fig

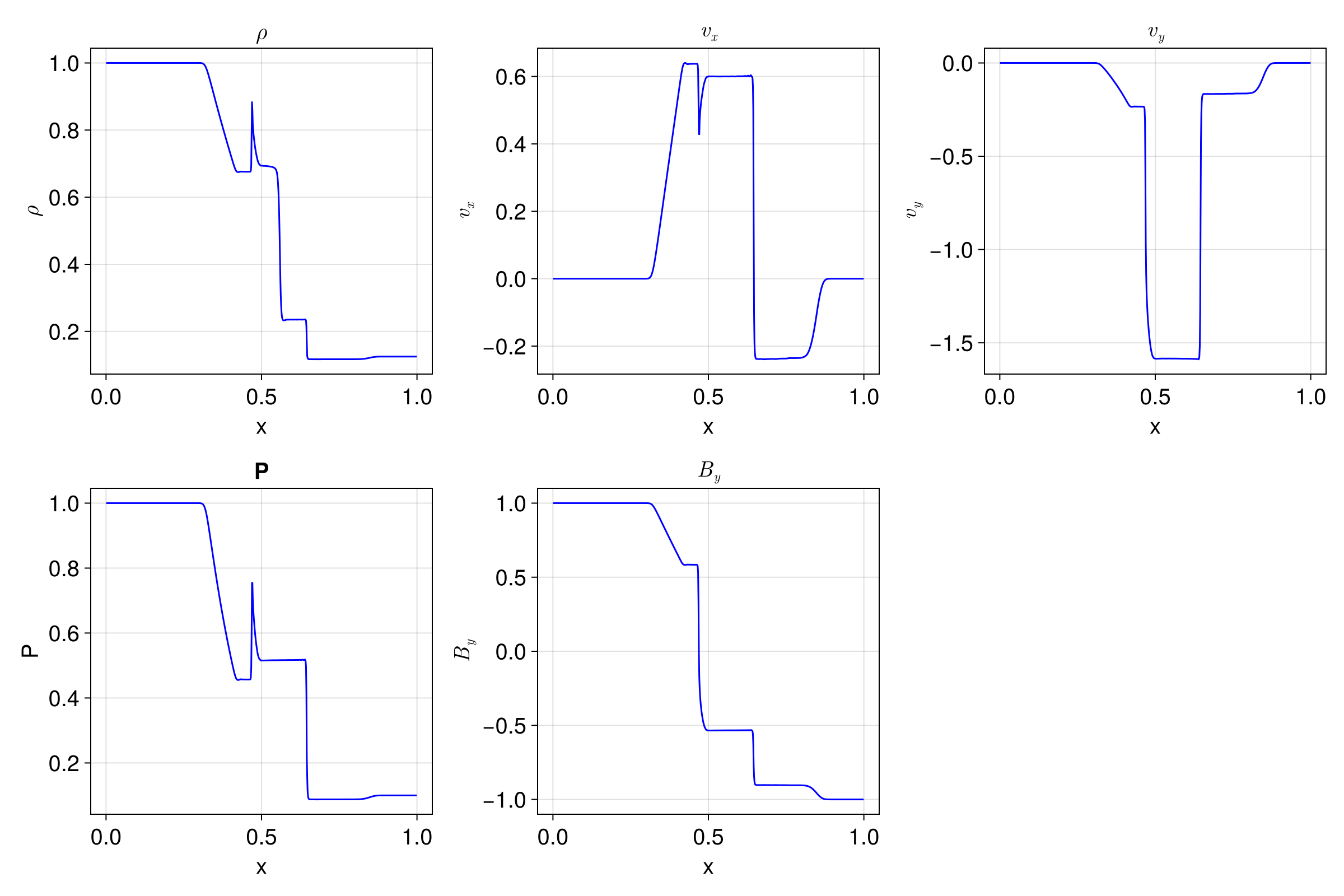

The solution clearly shows the compound wave structure characteristic of MHD: the fast rarefaction on the left, slow compound wave, contact discontinuity, slow shock, and fast rarefaction on the right. Note that $B_x$ remains constant at $0.75$ throughout (not shown).

true

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using FiniteVolumeMethod
using StaticArrays

gamma = 2.0
eos = IdealGasEOS(gamma)
law = IdealMHDEquations{1}(eos)

Bx = 0.75
wL = SVector(1.0, 0.0, 0.0, 0.0, 1.0, Bx, 1.0, 0.0)
wR = SVector(0.125, 0.0, 0.0, 0.0, 0.1, Bx, -1.0, 0.0)

N = 800
mesh = StructuredMesh1D(0.0, 1.0, N)
bw_ic(x) = x < 0.5 ? wL : wR

prob = HyperbolicProblem(
    law, mesh, HLLDSolver(), CellCenteredMUSCL(MinmodLimiter()),
    TransmissiveBC(), TransmissiveBC(), bw_ic;
    final_time = 0.1, cfl = 0.8
)
x, U, t_final = solve_hyperbolic(prob)

using CairoMakie

rho = [conserved_to_primitive(law, U[i])[1] for i in eachindex(U)]
vx = [conserved_to_primitive(law, U[i])[2] for i in eachindex(U)]
vy = [conserved_to_primitive(law, U[i])[3] for i in eachindex(U)]
P = [conserved_to_primitive(law, U[i])[5] for i in eachindex(U)]
By = [conserved_to_primitive(law, U[i])[7] for i in eachindex(U)]

fig = Figure(fontsize = 20, size = (1200, 800))
titles = [L"\rho", L"v_x", L"v_y", "P", L"B_y"]
data = [rho, vx, vy, P, By]
for (idx, (title, d)) in enumerate(zip(titles, data))
    row = (idx - 1) ÷ 3 + 1
    col = (idx - 1) % 3 + 1
    ax = Axis(fig[row, col], xlabel = "x", ylabel = title, title = title)
    lines!(ax, x, d, color = :blue, linewidth = 1.5)
end
resize_to_layout!(fig)
fig
