Balsara SRMHD Shock Tube

The Balsara 1 shock tube is the relativistic analogue of the Brio-Wu MHD test. It tests the special relativistic MHD (SRMHD) solver, including the iterative conserved-to-primitive conversion that accounts for the Lorentz factor.

Problem Setup

The SRMHD equations evolve 8 conserved variables $(D, S_x, S_y, S_z, \tau, B_x, B_y, B_z)$ where $D = \rho W$ (relativistic mass density), $W = 1/\sqrt{1-|\vb v|^2}$ is the Lorentz factor, and $\tau$ is the energy density minus rest mass.

The initial primitive states $(\rho, v_x, v_y, v_z, P, B_x, B_y, B_z)$ are:

using FiniteVolumeMethod
using StaticArrays

gamma = 5.0 / 3.0
eos = IdealGasEOS(gamma)
law = SRMHDEquations{1}(eos)

wL = SVector(1.0, 0.0, 0.0, 0.0, 1.0, 0.5, 1.0, 0.0)
wR = SVector(0.125, 0.0, 0.0, 0.0, 0.1, 0.5, -1.0, 0.0)

N = 400
mesh = StructuredMesh1D(0.0, 1.0, N)
ic(x) = x < 0.5 ? wL : wR

ic (generic function with 1 method)

Solving

We use the HLL solver with MUSCL reconstruction.

prob = HyperbolicProblem(
    law, mesh, HLLSolver(), CellCenteredMUSCL(MinmodLimiter()),
    TransmissiveBC(), TransmissiveBC(), ic;
    final_time = 0.4, cfl = 0.4
)
x, U, t_final = solve_hyperbolic(prob)

400-element Vector{Float64}:
 0.00125
 0.00375
 0.00625
 0.00875
 0.01125
 ⋮
 0.98875
 0.9912500000000001
 0.99375
 0.99625
 0.99875

Extracting Primitive Variables

The SRMHD conserved-to-primitive conversion is iterative because the Lorentz factor $W$ depends on velocity, which depends on the conserved variables in a nonlinear way.

rho = [conserved_to_primitive(law, U[i])[1] for i in eachindex(U)]
vx = [conserved_to_primitive(law, U[i])[2] for i in eachindex(U)]
P = [conserved_to_primitive(law, U[i])[5] for i in eachindex(U)]
By = [conserved_to_primitive(law, U[i])[7] for i in eachindex(U)]

400-element Vector{Float64}:
  1.0
  1.0
  1.0
  1.0
  1.0
  1.0
  1.0
  1.0
  1.0
  1.0
  ⋮
 -1.0000000000024905
 -1.0000000000011513
 -1.0000000000005271
 -1.000000000000238
 -1.000000000000106
 -1.0000000000000457
 -1.0000000000000187
 -1.000000000000007
 -1.0000000000000018

Visualisation

using CairoMakie

fig = Figure(fontsize = 20, size = (1200, 400))
ax1 = Axis(fig[1, 1], xlabel = "x", ylabel = L"\rho", title = "Density")
lines!(ax1, x, rho, color = :blue, linewidth = 1.5)

ax2 = Axis(fig[1, 2], xlabel = "x", ylabel = L"v_x", title = "Velocity")
lines!(ax2, x, vx, color = :blue, linewidth = 1.5)

ax3 = Axis(fig[1, 3], xlabel = "x", ylabel = L"B_y", title = "Magnetic Field (y)")
lines!(ax3, x, By, color = :blue, linewidth = 1.5)

resize_to_layout!(fig)
fig

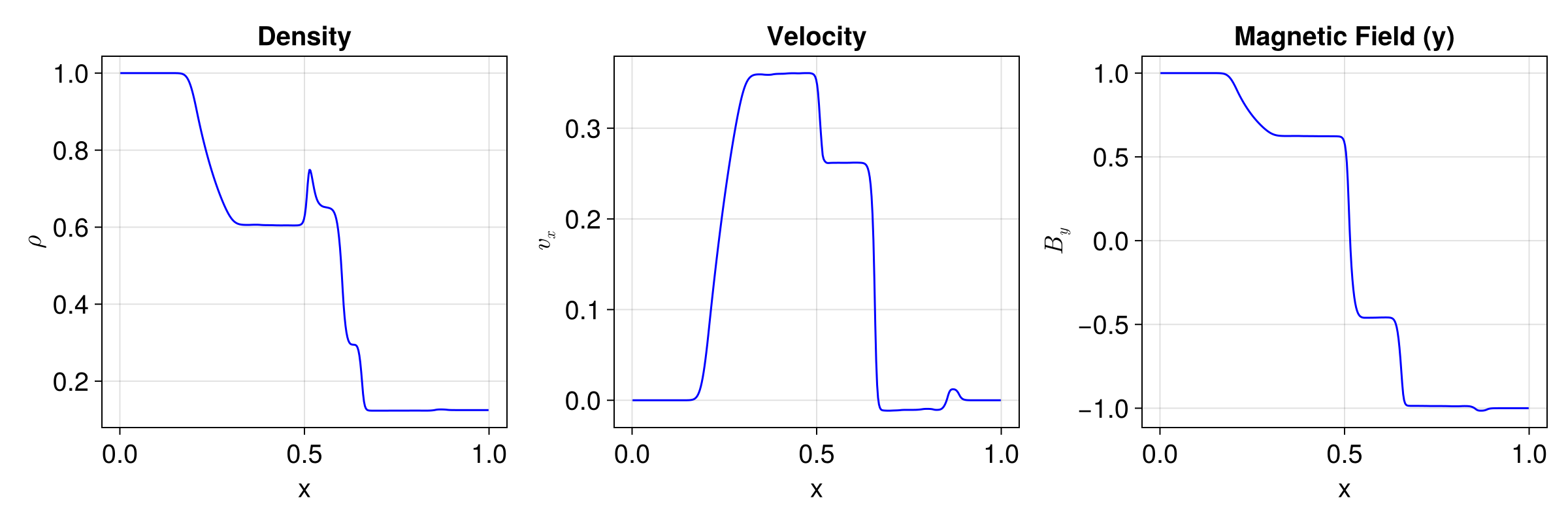

The solution shows the relativistic wave structure with compound MHD waves similar to the Brio-Wu test, but modified by relativistic effects. All velocities remain subluminal ($|v| < 1$) as required by special relativity.

true

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using FiniteVolumeMethod
using StaticArrays

gamma = 5.0 / 3.0
eos = IdealGasEOS(gamma)
law = SRMHDEquations{1}(eos)

wL = SVector(1.0, 0.0, 0.0, 0.0, 1.0, 0.5, 1.0, 0.0)
wR = SVector(0.125, 0.0, 0.0, 0.0, 0.1, 0.5, -1.0, 0.0)

N = 400
mesh = StructuredMesh1D(0.0, 1.0, N)
ic(x) = x < 0.5 ? wL : wR

prob = HyperbolicProblem(
    law, mesh, HLLSolver(), CellCenteredMUSCL(MinmodLimiter()),
    TransmissiveBC(), TransmissiveBC(), ic;
    final_time = 0.4, cfl = 0.4
)
x, U, t_final = solve_hyperbolic(prob)

rho = [conserved_to_primitive(law, U[i])[1] for i in eachindex(U)]
vx = [conserved_to_primitive(law, U[i])[2] for i in eachindex(U)]
P = [conserved_to_primitive(law, U[i])[5] for i in eachindex(U)]
By = [conserved_to_primitive(law, U[i])[7] for i in eachindex(U)]

using CairoMakie

fig = Figure(fontsize = 20, size = (1200, 400))
ax1 = Axis(fig[1, 1], xlabel = "x", ylabel = L"\rho", title = "Density")
lines!(ax1, x, rho, color = :blue, linewidth = 1.5)

ax2 = Axis(fig[1, 2], xlabel = "x", ylabel = L"v_x", title = "Velocity")
lines!(ax2, x, vx, color = :blue, linewidth = 1.5)

ax3 = Axis(fig[1, 3], xlabel = "x", ylabel = L"B_y", title = "Magnetic Field (y)")
lines!(ax3, x, By, color = :blue, linewidth = 1.5)

resize_to_layout!(fig)
fig
