AMR Sedov Blast

This tutorial demonstrates block-structured adaptive mesh refinement (AMR) for the Sedov blast wave problem. The AMR automatically refines around the shock front while keeping the smooth interior at coarse resolution, saving computational cost.

Problem Setup

We solve the 2D Euler equations with a point-like energy release, using the AMR infrastructure: AMRGrid, AMRProblem, and solve_amr.

using FiniteVolumeMethod
using StaticArrays

gamma = 1.4
eos = IdealGasEOS(gamma)
law = EulerEquations{2}(eos)
EulerEquations{2, IdealGasEOS{Float64}}(IdealGasEOS{Float64}(1.4))

Creating the AMR Grid

An AMRGrid starts with a single root block covering the entire domain. Each block has a fixed number of cells (here $8 \times 8$), and blocks can be refined up to max_level levels, with each refinement halving the grid spacing.

block_size = (8, 8)
max_level = 2
domain_lo = (-1.0, -1.0)
domain_hi = (1.0, 1.0)
(1.0, 1.0)

The GradientRefinement criterion refines blocks where the density gradient exceeds a threshold:

criterion = GradientRefinement(
    variable_index = 1,              ## monitor density (index 1)
    refine_threshold = 0.1,
    coarsen_threshold = 0.01
)

grid = AMRGrid(law, criterion, block_size, max_level, domain_lo, domain_hi, Val(4))
AMRGrid{4, Float64, 2, EulerEquations{2, IdealGasEOS{Float64}}, GradientRefinement{Float64}}(Dict{Int64, AMRBlock{4, Float64, 2}}(1 => AMRBlock{4, Float64, 2}(1, 0, (-1.0, -1.0), (8, 8), (0.25, 0.25), StaticArraysCore.SVector{4, Float64}[[0.0, 0.0, 0.0, 0.0] [0.0, 0.0, 0.0, 0.0] … [0.0, 0.0, 0.0, 0.0] [0.0, 0.0, 0.0, 0.0]; [0.0, 0.0, 0.0, 0.0] [0.0, 0.0, 0.0, 0.0] … [0.0, 0.0, 0.0, 0.0] [0.0, 0.0, 0.0, 0.0]; … ; [0.0, 0.0, 0.0, 0.0] [0.0, 0.0, 0.0, 0.0] … [0.0, 0.0, 0.0, 0.0] [0.0, 0.0, 0.0, 0.0]; [0.0, 0.0, 0.0, 0.0] [0.0, 0.0, 0.0, 0.0] … [0.0, 0.0, 0.0, 0.0] [0.0, 0.0, 0.0, 0.0]], -1, Int64[], true, Dict{Symbol, Int64}())), 2, 2, (8, 8), EulerEquations{2, IdealGasEOS{Float64}}(IdealGasEOS{Float64}(1.4)), GradientRefinement{Float64}(1, 0.1, 0.01), Base.RefValue{Int64}(2))

Setting the Initial Condition

We fill the root block with the Sedov blast wave initial condition: uniform density with a high-pressure region near the origin.

root_block = grid.blocks[1]
dx_root = root_block.dx[1]
P_bg = 1.0e-5
P_blast = 1.0
r_blast = 3.0 * dx_root

for j in 1:block_size[2], i in 1:block_size[1]
    xc, yc = block_cell_center(root_block, i, j)
    r = sqrt(xc^2 + yc^2)
    P = r < r_blast ? P_blast : P_bg
    rho = 1.0
    E = P / (gamma - 1)
    root_block.U[i, j] = SVector(rho, 0.0, 0.0, E)
end

Initial Refinement

Before solving, we refine the grid around the blast to capture the initial discontinuity:

regrid!(grid)

We can inspect the AMR hierarchy:

n_active = length(active_blocks(grid))
max_lev = max_active_level(grid)
0

Solving with AMR

The AMRProblem packages the grid, solver, and time integration parameters. The solve_amr function uses Berger-Oliger subcycling: finer levels take smaller time steps (half the coarse step).

bcs = (TransmissiveBC(), TransmissiveBC(), TransmissiveBC(), TransmissiveBC())
prob = AMRProblem(
    grid, HLLCSolver(), NoReconstruction(), bcs;
    final_time = 0.05, cfl = 0.3, regrid_interval = 4
)
final_grid, t_final = solve_amr(prob)
AMRGrid{4, Float64, 2, EulerEquations{2, IdealGasEOS{Float64}}, GradientRefinement{Float64}}(Dict{Int64, AMRBlock{4, Float64, 2}}(1 => AMRBlock{4, Float64, 2}(1, 0, (-1.0, -1.0), (8, 8), (0.25, 0.25), StaticArraysCore.SVector{4, Float64}[[1.0, 0.0, 0.0, 2.5000000000000008e-5] [1.0176499293123396, -0.00648016663422168, -0.0029402341408545363, 0.004330453762521275] … [1.0176499293123396, -0.00648016663422168, 0.0029402341408545363, 0.004330453762521275] [1.0, 0.0, 0.0, 2.5000000000000008e-5]; [1.0176499293123396, -0.0029402341408545363, -0.00648016663422168, 0.004330453762521275] [1.1145193403763298, -0.11158739113446113, -0.11158739113446113, 0.39533691253479186] … [1.1145193403763298, -0.11158739113446113, 0.11158739113446113, 0.39533691253479186] [1.0176499293123396, -0.0029402341408545363, 0.00648016663422168, 0.004330453762521275]; … ; [1.0176499293123396, 0.0029402341408545363, -0.00648016663422168, 0.004330453762521275] [1.1145193403763298, 0.11158739113446113, -0.11158739113446113, 0.39533691253479186] … [1.1145193403763298, 0.11158739113446113, 0.11158739113446113, 0.39533691253479186] [1.0176499293123396, 0.0029402341408545363, 0.00648016663422168, 0.004330453762521275]; [1.0, 0.0, 0.0, 2.5000000000000008e-5] [1.0176499293123396, 0.00648016663422168, -0.0029402341408545363, 0.004330453762521275] … [1.0176499293123396, 0.00648016663422168, 0.0029402341408545363, 0.004330453762521275] [1.0, 0.0, 0.0, 2.5000000000000008e-5]], -1, Int64[], true, Dict{Symbol, Int64}())), 2, 2, (8, 8), EulerEquations{2, IdealGasEOS{Float64}}(IdealGasEOS{Float64}(1.4)), GradientRefinement{Float64}(1, 0.1, 0.01), Base.RefValue{Int64}(2))

Inspecting the Result

n_blocks_final = length(active_blocks(final_grid))
max_lev_final = max_active_level(final_grid)
0

Visualisation

We collect cell centres and densities from all active blocks to create a scatter plot showing the AMR structure.

using CairoMakie

xs = Float64[]
ys = Float64[]
rhos = Float64[]
levels = Int[]

for block in active_blocks(final_grid)
    nx, ny = block.dims
    for j in 1:ny, i in 1:nx
        xc, yc = block_cell_center(block, i, j)
        push!(xs, xc)
        push!(ys, yc)
        w = conserved_to_primitive(law, block.U[i, j])
        push!(rhos, w[1])
        push!(levels, block.level)
    end
end

fig = Figure(fontsize = 24, size = (1100, 500))
ax1 = Axis(
    fig[1, 1], xlabel = "x", ylabel = "y",
    title = "Density (AMR, t=$(round(t_final, digits = 3)))",
    aspect = DataAspect()
)
sc1 = scatter!(ax1, xs, ys, color = rhos, markersize = 4, colormap = :inferno)
Colorbar(fig[1, 2], sc1, label = L"\rho")

ax2 = Axis(
    fig[1, 3], xlabel = "x", ylabel = "y",
    title = "AMR levels", aspect = DataAspect()
)
sc2 = scatter!(ax2, xs, ys, color = levels, markersize = 4, colormap = :Set1_3)
Colorbar(fig[1, 4], sc2, label = "Level")
resize_to_layout!(fig)
fig
Example block output

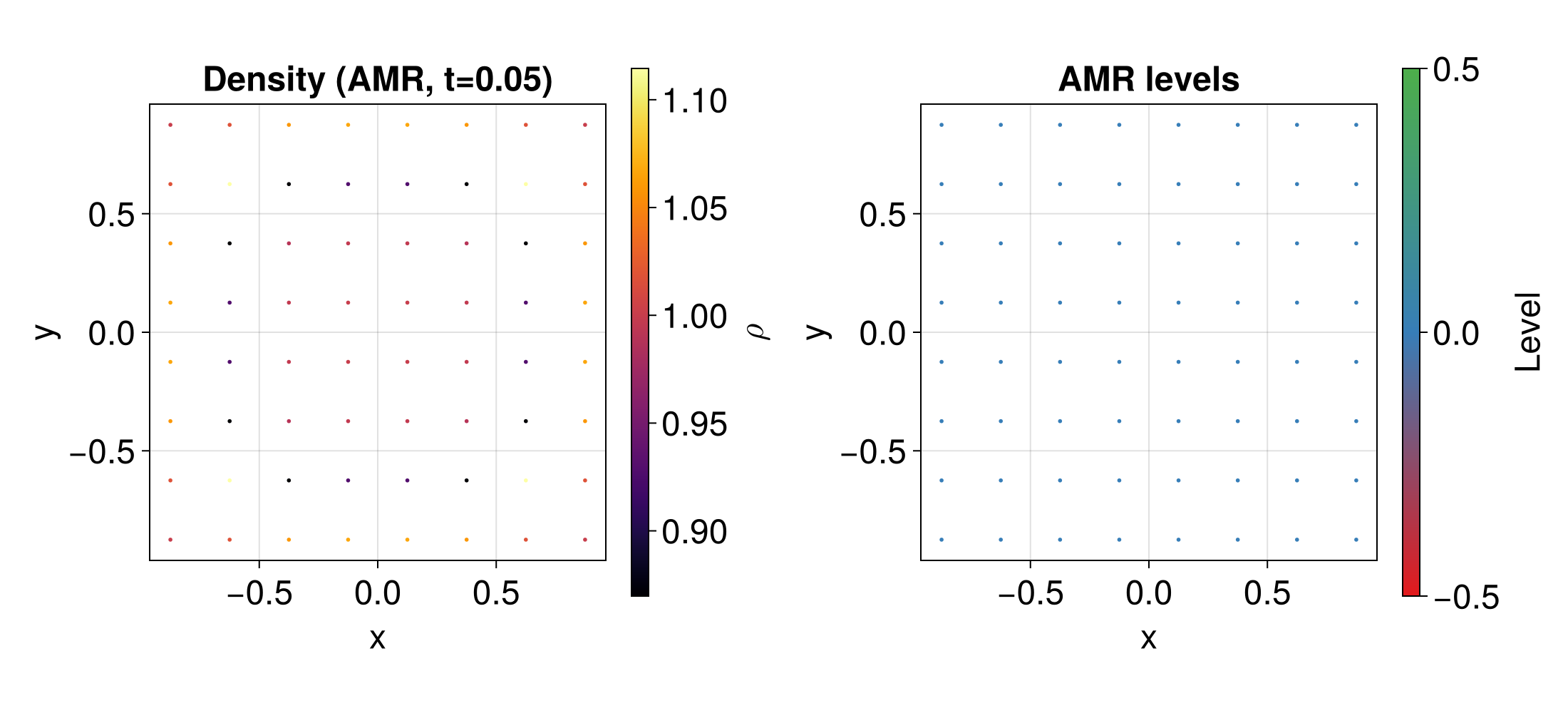

The left panel shows the density field with the blast wave, while the right panel shows the AMR refinement levels. The grid is refined around the shock front where density gradients are large, while the smooth interior remains at the coarsest level.

true
